The following image shows where to attach the front rack-mount brackets to the Cisco ASR 1002 Router.

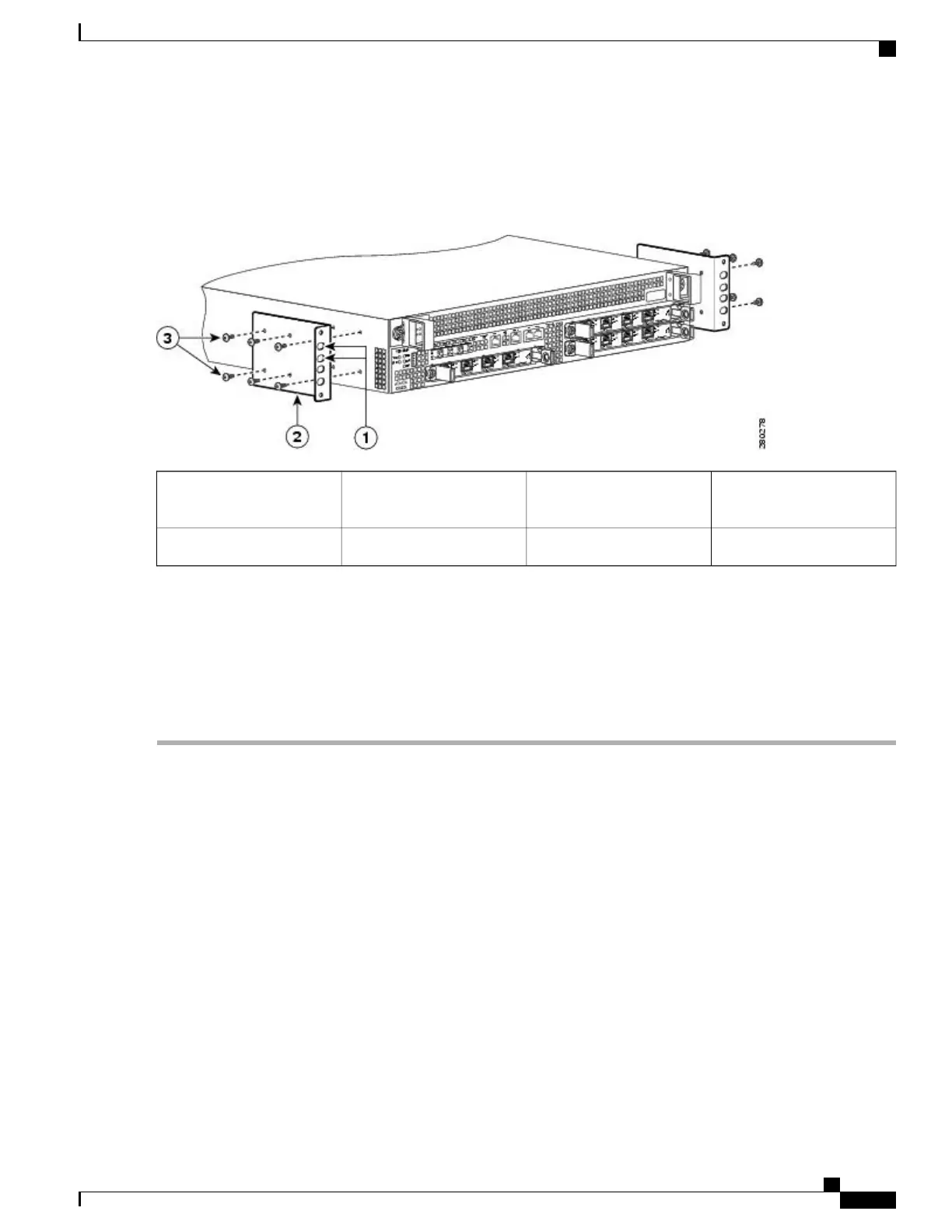

Figure 90: Attaching the Front Rack-Mount Brackets to the Cisco ASR 1002 Router
Front rack-mount bracket
screws
3Front rack-mount bracket ear
and holes
1
Front rack-mount bracket2
Step 2
Position the front rack-mount bracket top hole with the chassis first top hole behind the side vent holes.
Step 3
Insert and tighten the black screws on one side.
Step 4
Repeat Step 1 through Step 3 on the other side of the chassis. Use black screws to secure the rack-mount brackets to the
chassis.
Step 5
Install the chassis in a rack. To install the Cisco ASR 1002 Router in a rack, go to the Installing the Cisco ASR 1002
Router in a Rack, on page 243.
Chassis Rear Rack-Mount Brackets
If you are rack-mounting the chassis using the rear rack-mount brackets, then this type of installation provides
for the chassis being recessed in the rack.
To install the rear rack-mount brackets on the Cisco ASR 1002 Router, perform the following steps:
SUMMARY STEPS
1.
Locate the threaded holes on the rear side of the chassis. Make certain that you hold the rear rack-mount
bracket with the ear and holes facing outward and towards the rear of the chassis.
2.
Position the rear rack-mount bracket top hole with the chassis top hole from the back.
3.
Insert and tighten the screws on one side.
4.
Repeat Step 1 through Step 3 on the other side of the chassis. Use the remaining screws to secure the rear
rack-mount brackets to the chassis.
Cisco ASR 1000 Series Router Hardware Installation Guide
241
Cisco ASR 1002 Router Overview and Installation
Chassis Rear Rack-Mount Brackets
