DETAILED STEPS
Step 1
Locate the threaded holes on the rear side of the chassis. Make certain that you hold the rear rack-mount bracket with
the ear and holes facing outward and towards the rear of the chassis.
The followoing shows where to attach the rear rack-mount brackets to the Cisco ASR 1002 Router.

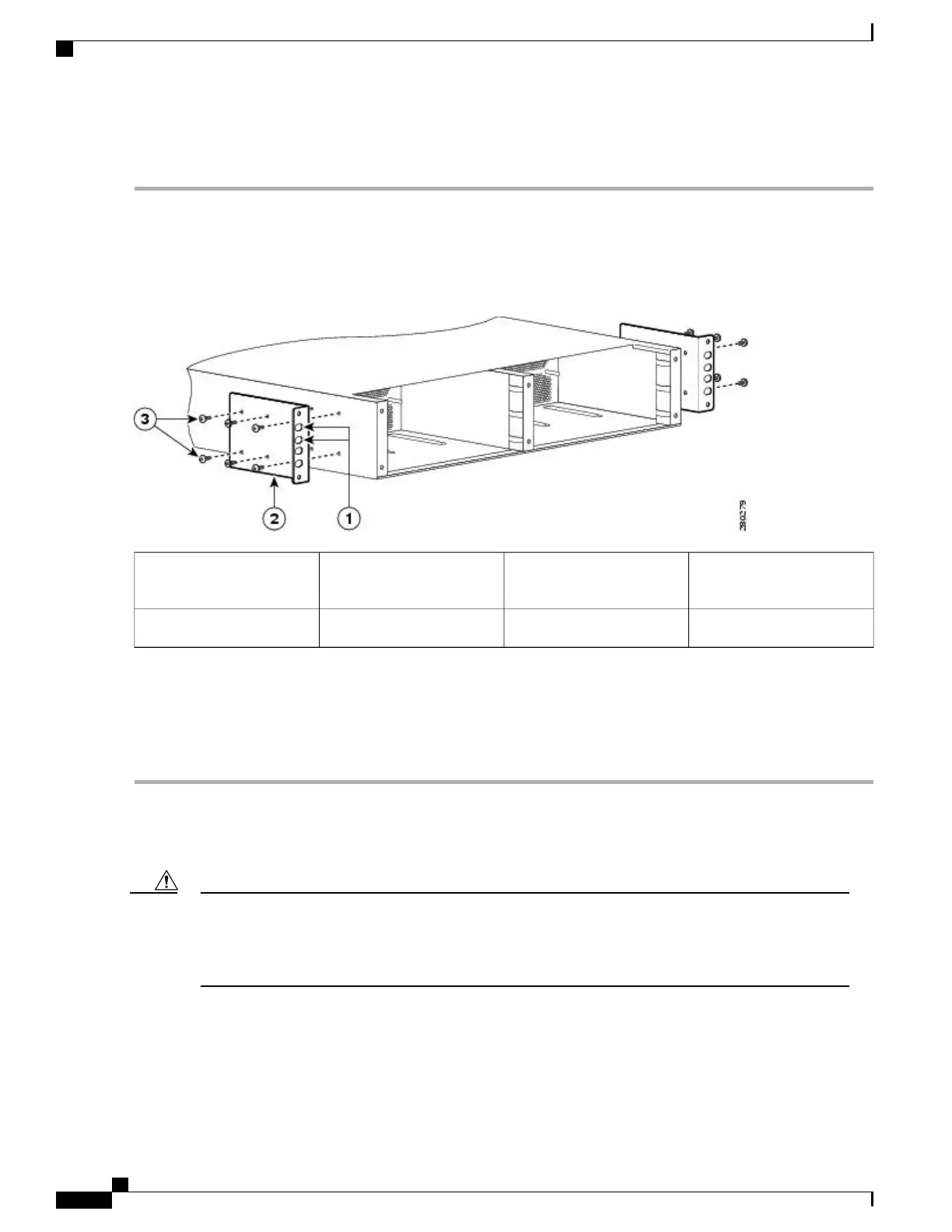

Figure 91: Attaching the Rear Rack-Mount Brackets to the Cisco ASR 1002 Router
Rear rack-mount bracket
screws
3Rear rack-mount bracket ear
and holes
1
——
Rear rack-mount bracket2
Step 2
Position the rear rack-mount bracket top hole with the chassis top hole from the back.
Step 3
Insert and tighten the screws on one side.
Step 4
Repeat Step 1 through Step 3 on the other side of the chassis. Use the remaining screws to secure the rear rack-mount
brackets to the chassis.
What to Do Next
This completes the steps for attaching the rear rack-mount brackets to the Cisco ASR 1002 Router.
To make installation easier, before you mount the ASR 1002 Router in a rack, make certain you read
which rack-mount bracket ear holes to use when positioning the chassis in the rack. As a result of using
the designated ear holes on the rack-mount bracket, the cable-management bracket installation will be
made easier.
Caution
Cisco ASR 1000 Series Router Hardware Installation Guide
242
Cisco ASR 1002 Router Overview and Installation
Chassis Rear Rack-Mount Brackets

Cisco ASR 1004 Specifications

General

Product Type	Router
Form Factor	Rack-mountable
Rack Height	2U
Forwarding Capacity	Up to 20 Gbps
Total Number of Ports	Varies by configuration
Number of Total Expansion Slots	4
Product Series	ASR 1000
Model	ASR 1004
Forwarding Performance	Up to 20 Gbps
Operating System	Cisco IOS XE
Power Supply	Dual
Route Processor	ASR 1000 Series Route Processor
Network Interface Modules	SFP, SFP+, Gigabit Ethernet, 10 Gigabit Ethernet
Interfaces/Ports	Varies by configuration
Expansion Slot Type	SPA
Throughput	20 Gbps
Redundancy	Power supply, Route Processor
Interfaces	Gigabit Ethernet, 10 Gigabit Ethernet, SFP, SFP+
Storage	Up to 64 GB Flash
