Cisco ASR 1004 Hardware Installation Guide

Step 2
Turn off the circuit breaker to the power supply.
Step 3
For easier installation, plug the power cable into the inlet on power supply slot 1 first.
Step 4
Then insert the power supply cable into the power supply in slot 0 on the right.
Step 5
Make certain that the AC power cords are positioned as shown in the following image.

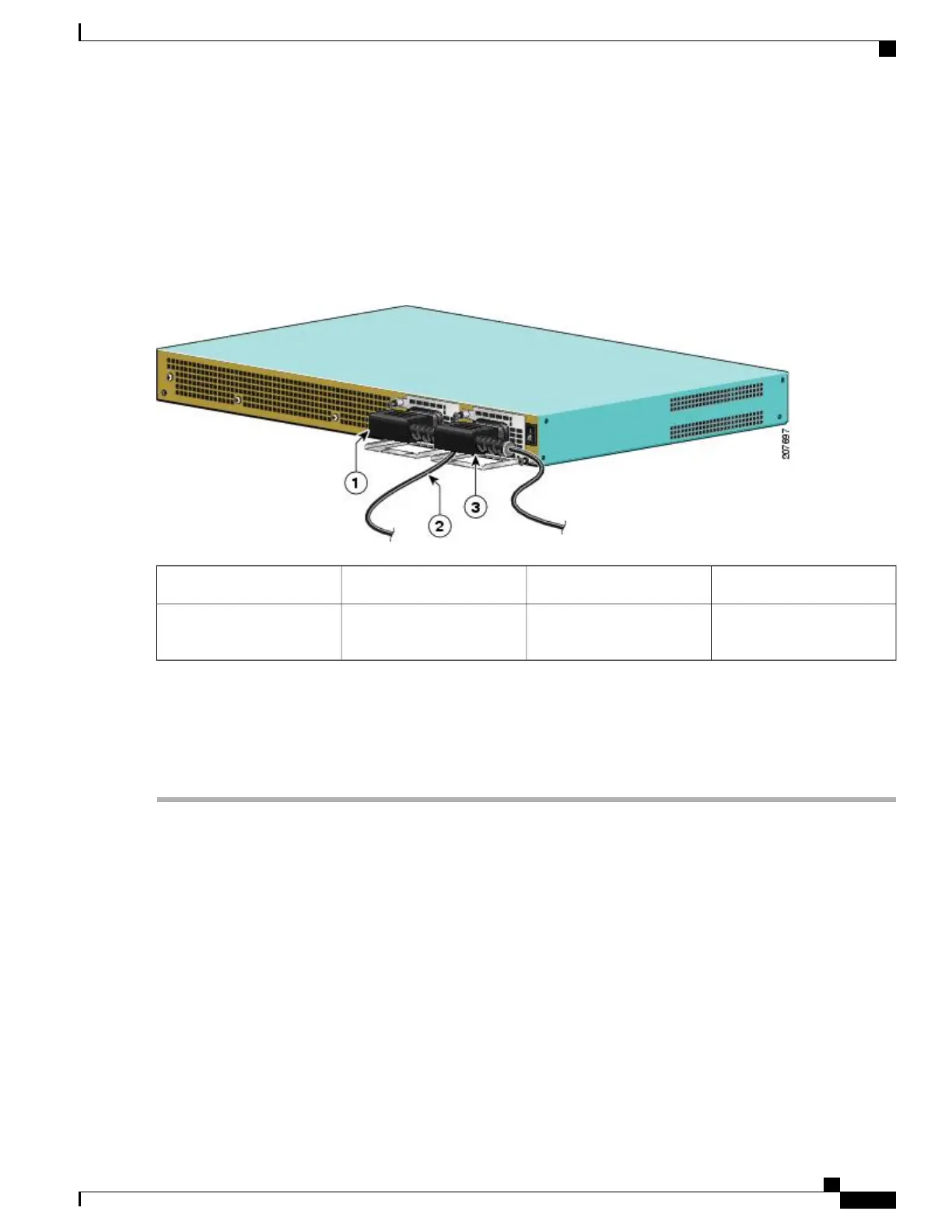

Figure 217: Correct Position of the Cisco ASR 1001 Router AC Power Supply Cables
AC power supply in PS13AC power supply in PS01
——
Position of power supply
cable from PS0
2
Step 6
Plug the AC power supply cables into the AC power source.
Step 7
Turn on the AC breaker.
Step 8
Turn the Standby switch to On (|) on the chassis.
Step 9
The power supply LED illuminates green.
What to Do Next
This completes the procedure for connecting AC input power.
Removing AC Power Supply from the Cisco ASR 1001 Router
This section describes how to remove an AC power supply from the Cisco ASR 1001 Router. The Cisco ASR
1001 Router has two power supply slots, power supply slot 1 (PS1) next to the Standby switch and power
supply slot 0 (PS0) to the left, as shown in the following image.
Follow these steps to remove an AC power supply from the Cisco ASR 1001 router:
Cisco ASR 1000 Series Router Hardware Installation Guide
449
Cisco ASR 1001 Router Overview and Installation
Removing AC Power Supply from the Cisco ASR 1001 Router

Cisco ASR 1004 Specifications

General

Product Type	Router
Form Factor	Rack-mountable
Rack Height	2U
Forwarding Capacity	Up to 20 Gbps
Total Number of Ports	Varies by configuration
Number of Total Expansion Slots	4
Product Series	ASR 1000
Model	ASR 1004
Forwarding Performance	Up to 20 Gbps
Operating System	Cisco IOS XE
Power Supply	Dual
Route Processor	ASR 1000 Series Route Processor
Network Interface Modules	SFP, SFP+, Gigabit Ethernet, 10 Gigabit Ethernet
Interfaces/Ports	Varies by configuration
Expansion Slot Type	SPA
Throughput	20 Gbps
Redundancy	Power supply, Route Processor
Interfaces	Gigabit Ethernet, 10 Gigabit Ethernet, SFP, SFP+
Storage	Up to 64 GB Flash
