Inner clearance (the width between the inner sides of the two posts or rails) must be at least 19 inches
(48.26 cm). The height of the chassis is 3.47 inches (8.8 cm). Airflow through the chassis is from front to
back.
Note
Make sure the rack is stabilized.Caution
Step 1
(Optional) Install a shelf in the rack to support the Cisco ASR 1002-F Router. If you are using a shelf, raise the chassis
to the level of the shelf. Let the bottom of the chassis rest on the brackets, but continue to support the chassis. Lift the
chassis into the rack, grasping underneath the power supply bays.
Step 2
Position the chassis until the rack-mounting flanges are flush against the mounting rails on the rack.
Use the second hole up from the bottom of the rack-mount bracket and the second hole down from the top of
the rack-mount bracket. This will make it easier to attach the cable-management brackets to the chassis in the
equipment rack.
Note
Step 3
Hold the chassis in position against the mounting rails while the second person finger-tightens a screw to the rack rails
on each side of the chassis.
Step 4
Tighten the screws to the rack rails on each side of the chassis.
Step 5
Tighten all the screws on each side to secure the chassis to the equipment rack.

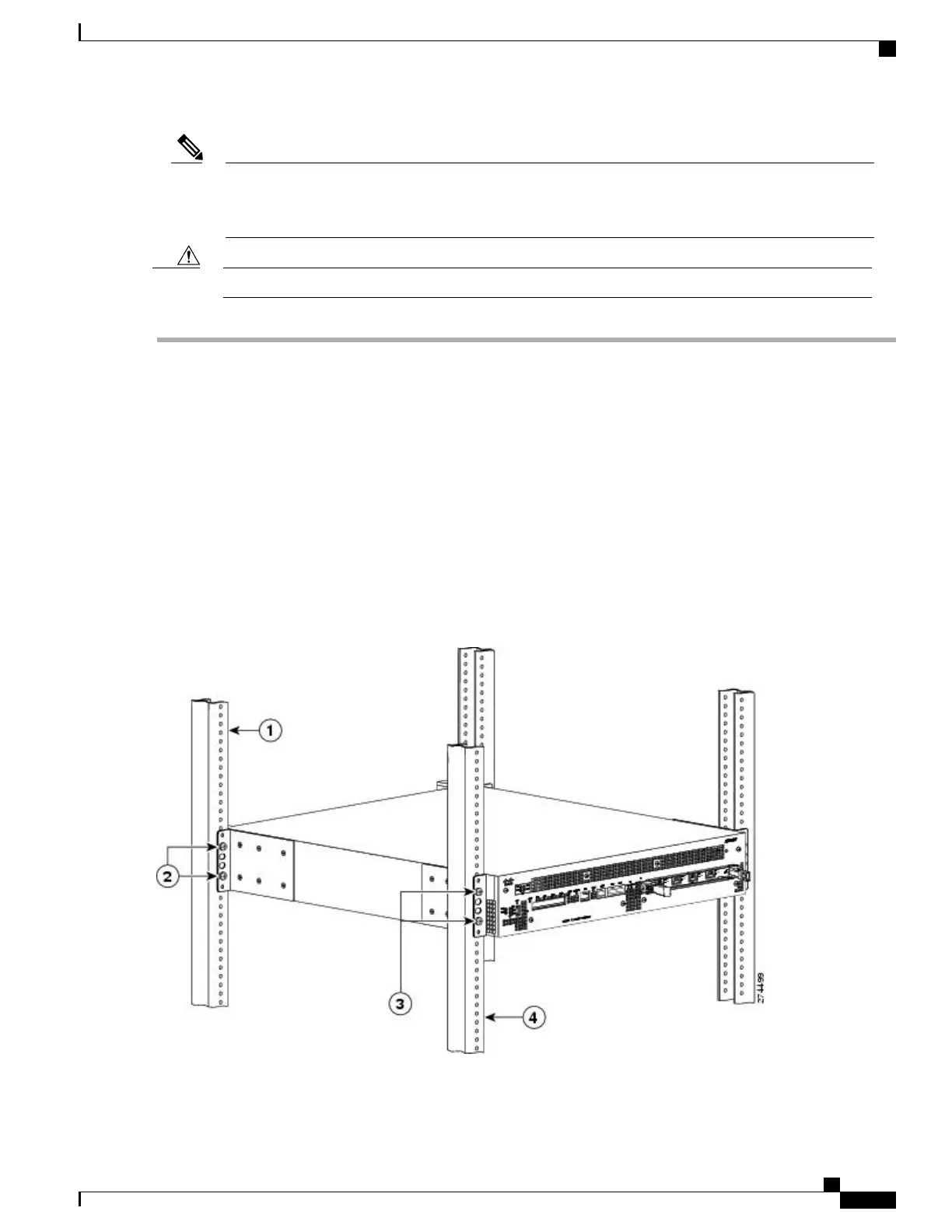

The following figure shows the Cisco ASR 1002-F Router on a four-post rack.
Figure 130: Installing the Cisco ASR 1002-F Router on a Four-Post Equipment Rack
Cisco ASR 1000 Series Router Hardware Installation Guide
299
Cisco ASR 1002-F Router Overview and Installation
Four-Post Rack Installation

Cisco ASR 1004 Specifications

General

Product Type	Router
Form Factor	Rack-mountable
Rack Height	2U
Forwarding Capacity	Up to 20 Gbps
Total Number of Ports	Varies by configuration
Number of Total Expansion Slots	4
Product Series	ASR 1000
Model	ASR 1004
Forwarding Performance	Up to 20 Gbps
Operating System	Cisco IOS XE
Power Supply	Dual
Route Processor	ASR 1000 Series Route Processor
Network Interface Modules	SFP, SFP+, Gigabit Ethernet, 10 Gigabit Ethernet
Interfaces/Ports	Varies by configuration
Expansion Slot Type	SPA
Throughput	20 Gbps
Redundancy	Power supply, Route Processor
Interfaces	Gigabit Ethernet, 10 Gigabit Ethernet, SFP, SFP+
Storage	Up to 64 GB Flash
