Cisco ASR 1004 Hardware Installation Guide

Step 3
Use the manufacturers’s recommended crimping tool to carefully crimp the wire receptacle around the wire; this step is
required to ensure a proper mechanical connection.
Step 4
Locate the chassis ground connector on the side of your chassis as shown in the following imave.
Step 5
Insert the two screws through the holes in the grounding lug as shown in Figure 134: Attaching a Grounding Lug to the
Chassis Ground Connector, on page 304.

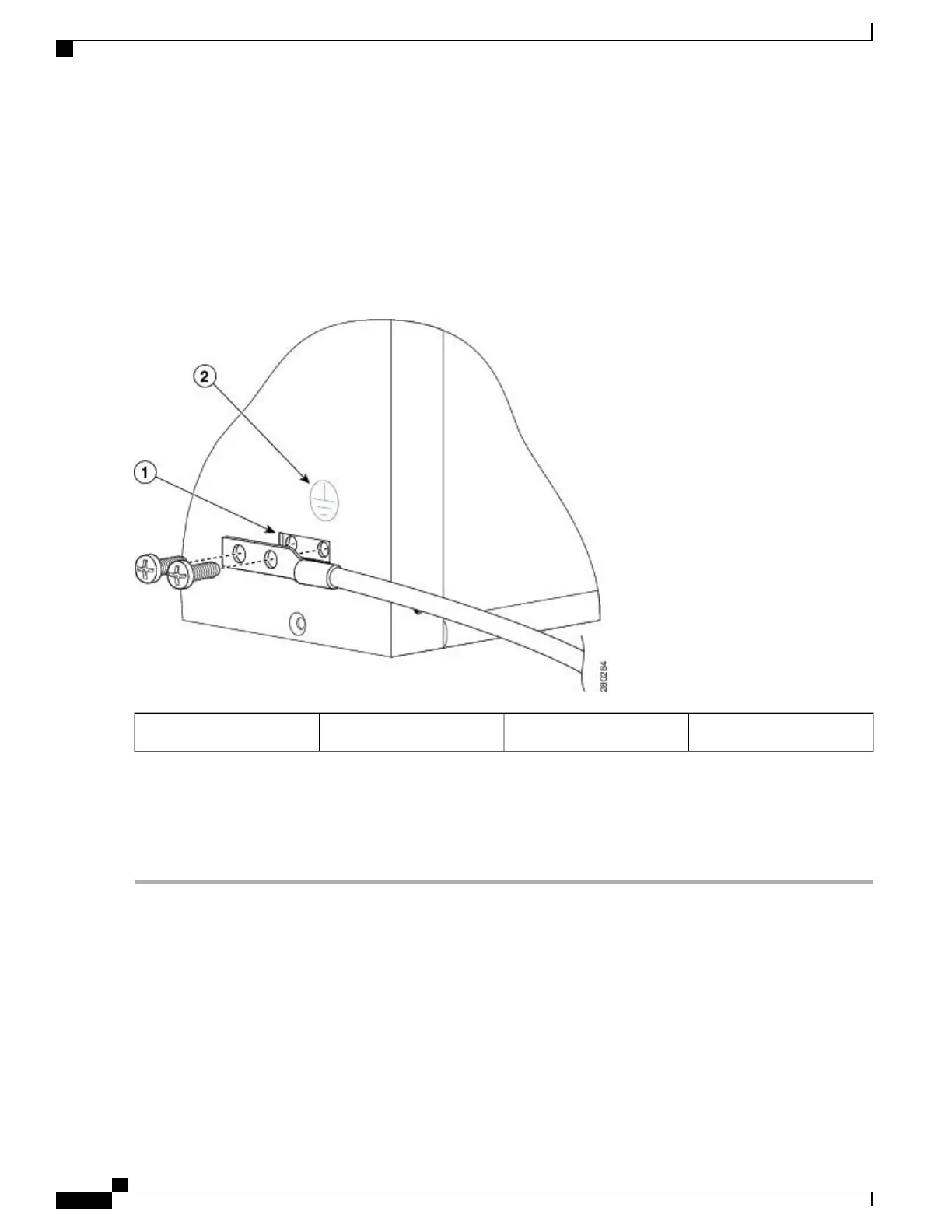

Figure 134: Attaching a Grounding Lug to the Chassis Ground Connector
Ground symbol2Chassis ground connector1
Step 6
Use the Number 2 Phillips screwdriver to carefully tighten the screws until the grounding lug is held firmly to the chassis.
Do not overtighten the screws.
Step 7
Connect the opposite end of the ground wire to the appropriate grounding point at your site to ensure an adequate chassis
ground.
What to Do Next
This completes the procedure for attaching a chassis ground connection. Go to the following cabling sections
for information on attaching cables.
Cisco ASR 1000 Series Router Hardware Installation Guide
304
Cisco ASR 1002-F Router Overview and Installation
Attaching a Chassis Ground Connection

Cisco ASR 1004 Specifications

General

Product Type	Router
Form Factor	Rack-mountable
Rack Height	2U
Forwarding Capacity	Up to 20 Gbps
Total Number of Ports	Varies by configuration
Number of Total Expansion Slots	4
Product Series	ASR 1000
Model	ASR 1004
Forwarding Performance	Up to 20 Gbps
Operating System	Cisco IOS XE
Power Supply	Dual
Route Processor	ASR 1000 Series Route Processor
Network Interface Modules	SFP, SFP+, Gigabit Ethernet, 10 Gigabit Ethernet
Interfaces/Ports	Varies by configuration
Expansion Slot Type	SPA
Throughput	20 Gbps
Redundancy	Power supply, Route Processor
Interfaces	Gigabit Ethernet, 10 Gigabit Ethernet, SFP, SFP+
Storage	Up to 64 GB Flash
