This equipment must be grounded. Never defeat the ground conductor or operate the equipment in the
absence of a suitably installed ground conductor. Contact the appropriate electrical inspection authority
or an electrician if you are uncertain that suitable grounding is available. Statement 1024
Warning
Before you connect power or turn on power to your chassis, you must provide an adequate chassis ground
(earth) connection for the chassis. The chassis ground lug (two) and the respective screws (four) are provided
in the accessory kit that ships with your Cisco ASR 1002 Router.
The grounding wire is always the first to be installed or connected and the last to be removed or
disconnected.
Caution
The following tools, equipment, and supplies necessary to connect the system ground to the chassis:
•
Phillips screwdriver
•
Dual-lug chassis ground component (two) and respective screws (four) (shipped with the accessory kit)
•
Grounding wire
The follwing image shows the location of the dual ground lug on the side of the of Cisco ASR 1002 Router.

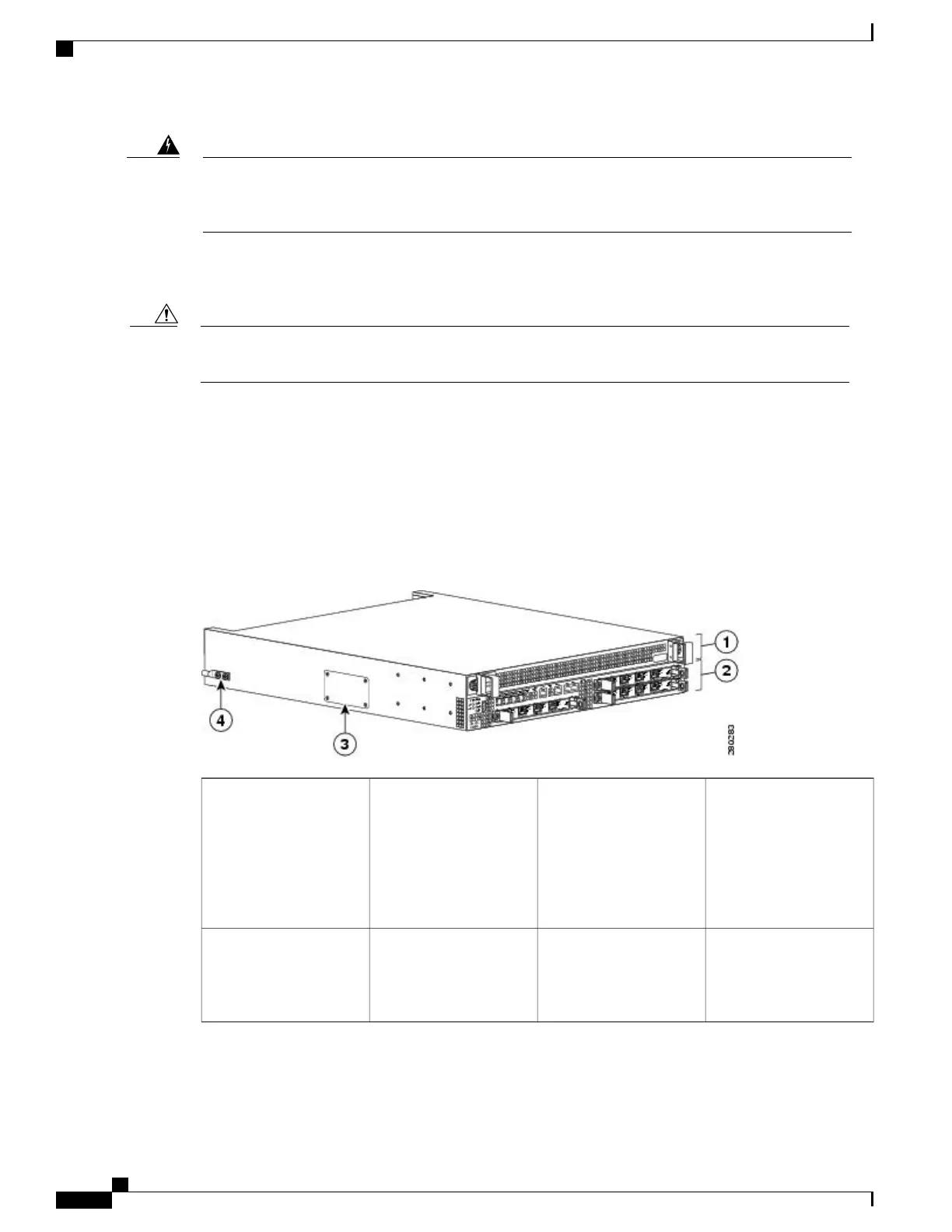

Figure 95: Cisco ASR 1002 Router Chassis Ground Lug Location and Side Panel Door
The eUSB panel door on
the side of the Cisco ASR
1002 Router must not be
opened. If there is a
problem with eUSB flash
card, the chassis should
be returned.
3F0 with ASR1000-ESP5
or ESP10.
1
Cisco ASR 1002 Router
ground stud location.
4R0 slot with embedded
ASR1000-RP1 and
embedded
ASR1000-SIP10.
2
To attach the grounding lug to the chassis ground connector on your chassis, follow these steps:
Cisco ASR 1000 Series Router Hardware Installation Guide
250
Cisco ASR 1002 Router Overview and Installation
Attaching a Chassis Ground Connection
