The following image shows the router installed on a four-post rack.

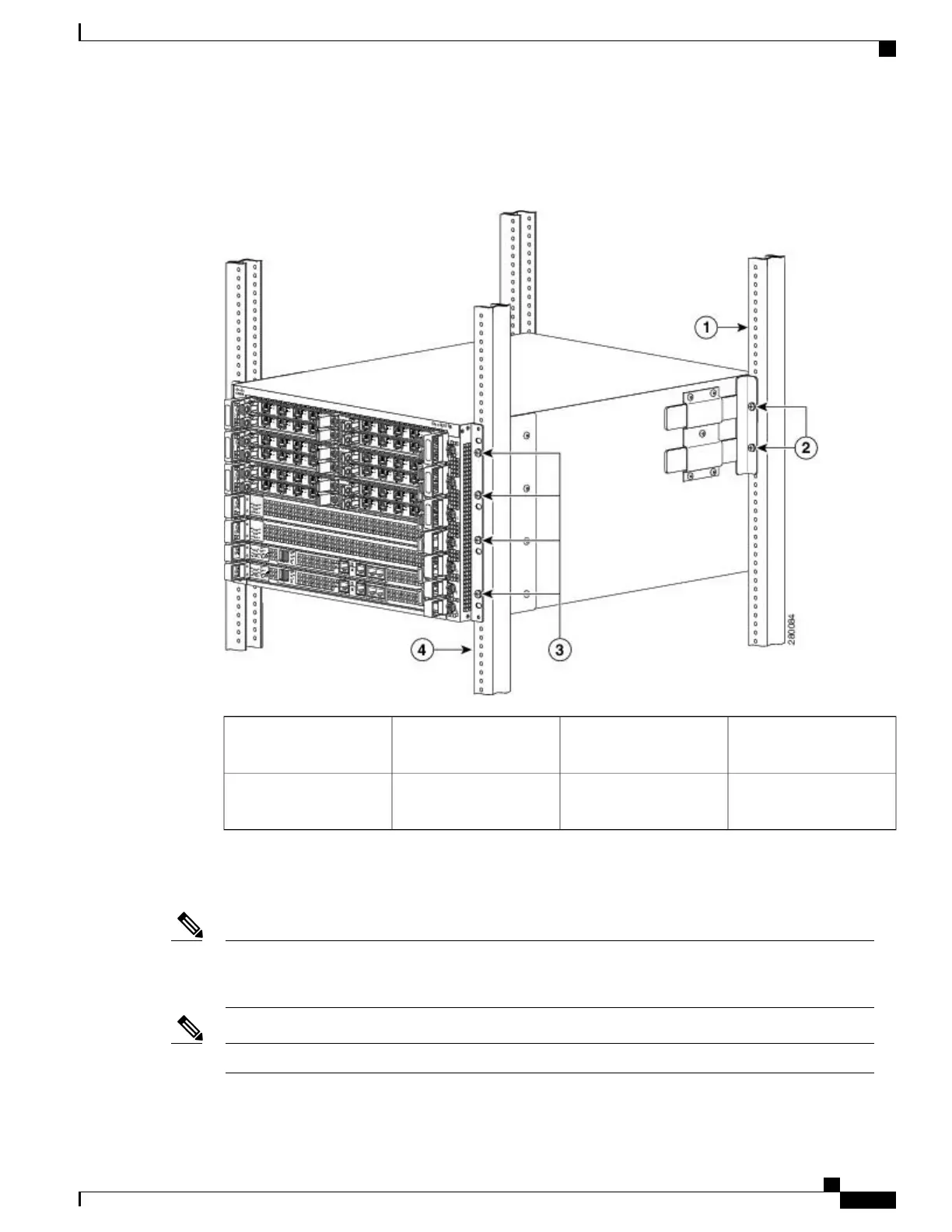

Figure 44: Installing the Cisco ASR 1006 Router in a Four-Post Equipment Rack
Cisco ASR 1006 front
rack-mount brackets
3Four-post equipment rack
rear rail
1
Four-post equipment rack
front rail
4Cisco ASR 1006 rear
rack-mount brackets
2
When handling the chassis, always follow proper lifting practices. See the “Chassis-Lifting Guidelines” section
on page 5-23 .
Inner clearance (the width between the inner sides of the two posts or rails) must be at least 19 inches
(48.26cm). The height of the chassis is 10.45 inches (26.543 cm). Airflow through the chassis is from
front to back.
Note
Make sure the rack is stabilized.Note
Cisco ASR 1000 Series Router Hardware Installation Guide
157
Cisco ASR 1006 Router Overview and Installation
Four-Post Rack Installation

Cisco ASR 1004 Specifications

General

Product Type	Router
Form Factor	Rack-mountable
Rack Height	2U
Forwarding Capacity	Up to 20 Gbps
Total Number of Ports	Varies by configuration
Number of Total Expansion Slots	4
Product Series	ASR 1000
Model	ASR 1004
Forwarding Performance	Up to 20 Gbps
Operating System	Cisco IOS XE
Power Supply	Dual
Route Processor	ASR 1000 Series Route Processor
Network Interface Modules	SFP, SFP+, Gigabit Ethernet, 10 Gigabit Ethernet
Interfaces/Ports	Varies by configuration
Expansion Slot Type	SPA
Throughput	20 Gbps
Redundancy	Power supply, Route Processor
Interfaces	Gigabit Ethernet, 10 Gigabit Ethernet, SFP, SFP+
Storage	Up to 64 GB Flash
