The following image shows the ASR1013/06-PWR-DC power supply of the Cisco ASR 1006 Router.

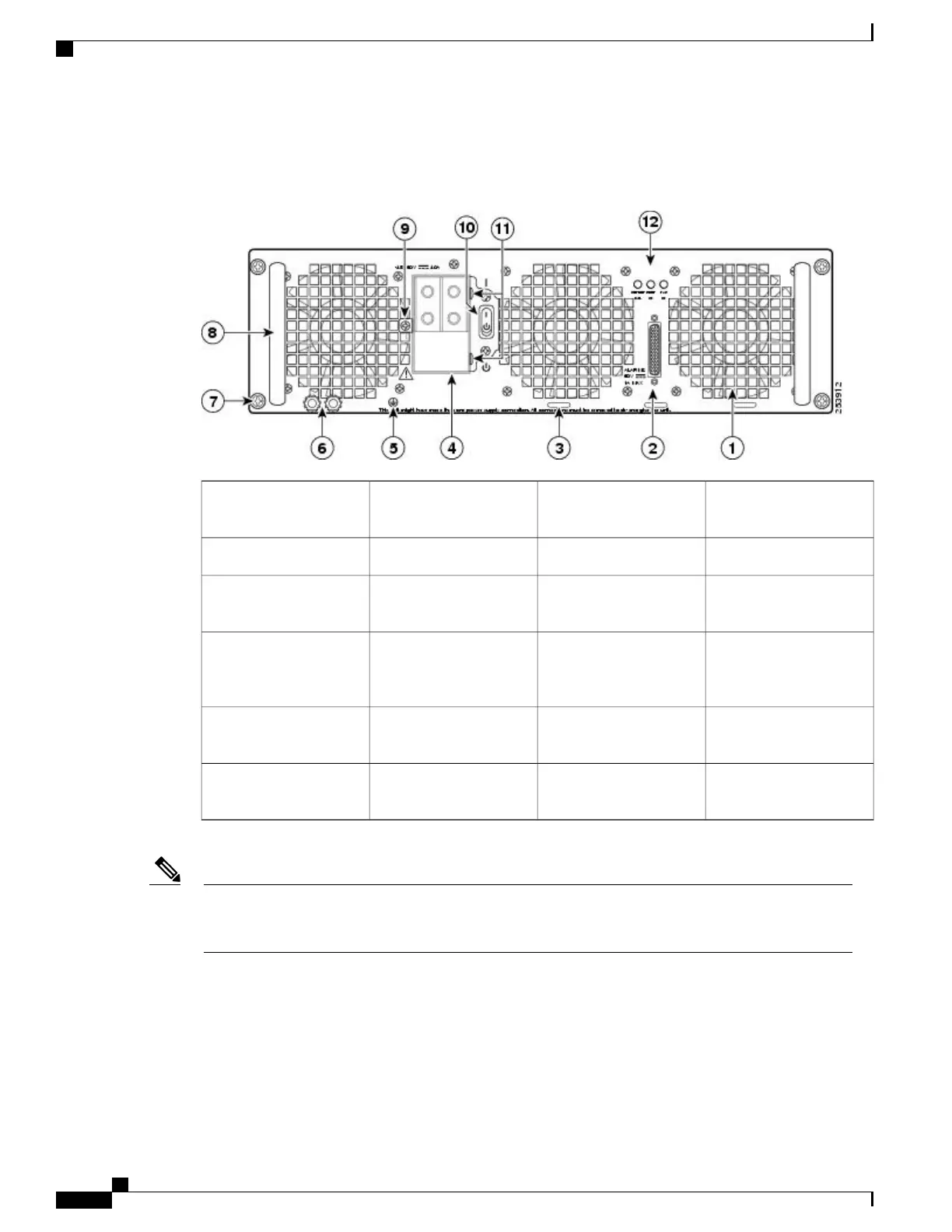

Figure 49: Cisco ASR 1006 Router – 48 VDC Power Supply (ASR1013/06-PWR-DC)
DC power supply captive
screw
7Fan1
DC power supply handle8DB-25 alarm connector2
Terminal block and
plastic cover single screw
9Tie-wrap tab3
On/Off (|/O) circuit
breaker switch
10DC power supply
terminal block and plastic
cover
4
Terminal block and
plastic cover slot tab
11Ground symbol5
Power supply LEDs12DC power supply ground
studs
6
Shielded cables must be used to connect to the DB-25 alarm connector on both the AC and DC power
supplies in order to comply with the FCC/EN55022/CISPR22 Class A emissions requirements. See the
“How Cisco ASR1000-RP Alarm Monitoring Works” section on page 2-22 .
Note
Before you begin the procedure to connect DC input power, read these important notices:
•
The color coding of the DC input power supply leads depends on the color coding of the DC power
source at your site. Typically, green or green/yellow is used for ground (GND), black is used for –48 V
on negative (–) terminal, and red is used for RTN on the positive (+) terminal. Make certain the lead
color coding you choose for the DC input power supply matches the lead color coding used at the DC
power source.
Cisco ASR 1000 Series Router Hardware Installation Guide
170
Cisco ASR 1006 Router Overview and Installation
Connecting DC Input Power to Cisco ASR 1006 Router

Cisco ASR 1004 Specifications

General

Product Type	Router
Form Factor	Rack-mountable
Rack Height	2U
Forwarding Capacity	Up to 20 Gbps
Total Number of Ports	Varies by configuration
Number of Total Expansion Slots	4
Product Series	ASR 1000
Model	ASR 1004
Forwarding Performance	Up to 20 Gbps
Operating System	Cisco IOS XE
Power Supply	Dual
Route Processor	ASR 1000 Series Route Processor
Network Interface Modules	SFP, SFP+, Gigabit Ethernet, 10 Gigabit Ethernet
Interfaces/Ports	Varies by configuration
Expansion Slot Type	SPA
Throughput	20 Gbps
Redundancy	Power supply, Route Processor
Interfaces	Gigabit Ethernet, 10 Gigabit Ethernet, SFP, SFP+
Storage	Up to 64 GB Flash
