The following image shows where to attach the chassis rack-mount brackets to the equipment rack.

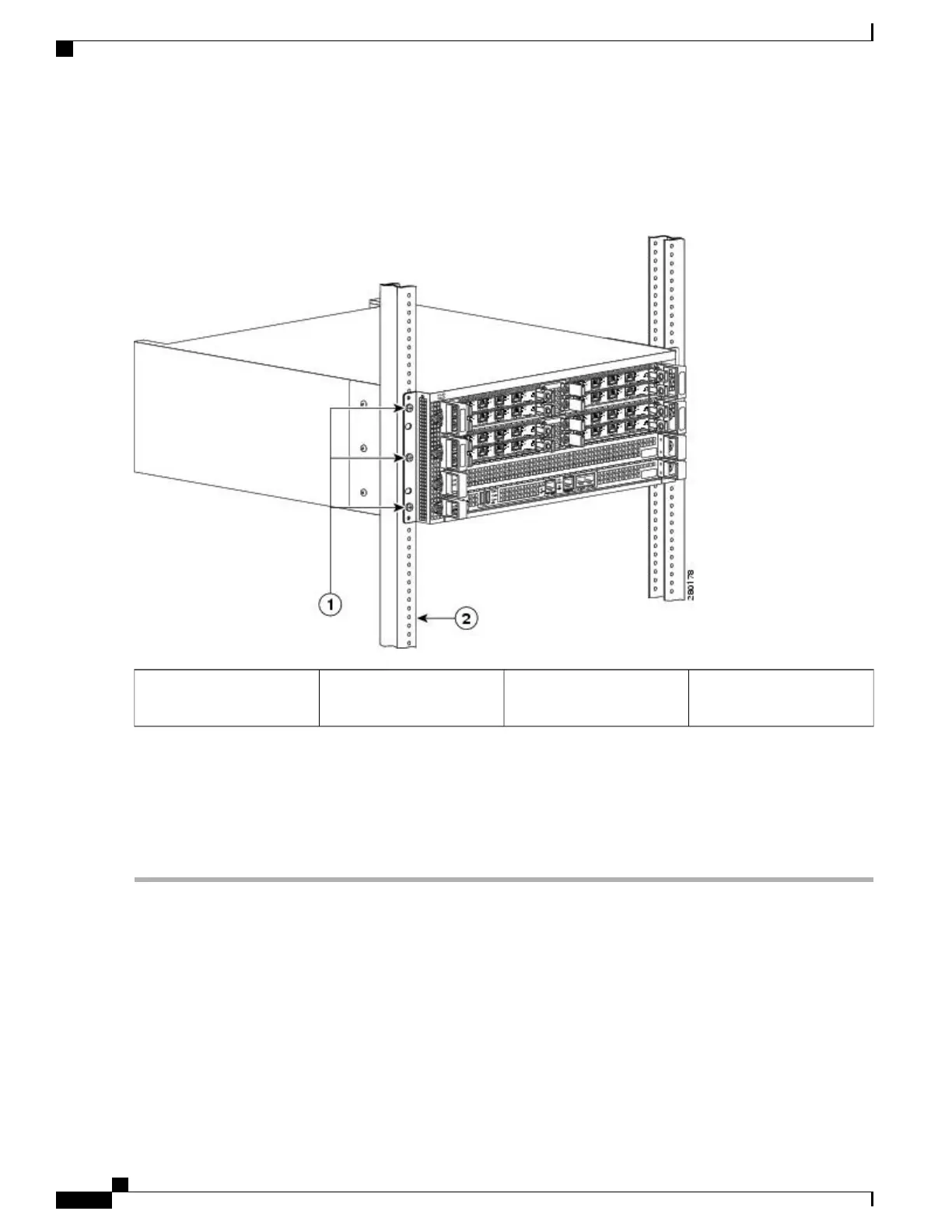

Figure 67: Attaching the Rear Rack-Mount Brackets to the Cisco ASR 1004 Router
Rack equipment rail2Rack-mount bracket ear and
holes
1
Step 2
Slide the chassis into the rack, pushing it back until the brackets meet the mounting strips or posts on both sides of the
rack.
Step 3
Keeping the brackets flush against the posts or mounting strips, align the holes in the brackets with the holes on the rack
or mounting strip.
Step 4
For each bracket, insert and tighten two screws to the rack on both sides.
What to Do Next
This completes the procedure for installing the chassis on a two-post rack. Proceed to the Attaching a Chassis
Ground Connection, on page 201 to continue the installation.
Cisco ASR 1000 Series Router Hardware Installation Guide
198
Cisco ASR 1004 Router Overview and Installation
Two-Post Rack Installation
