Cisco ASR 1004 Hardware Installation Guide

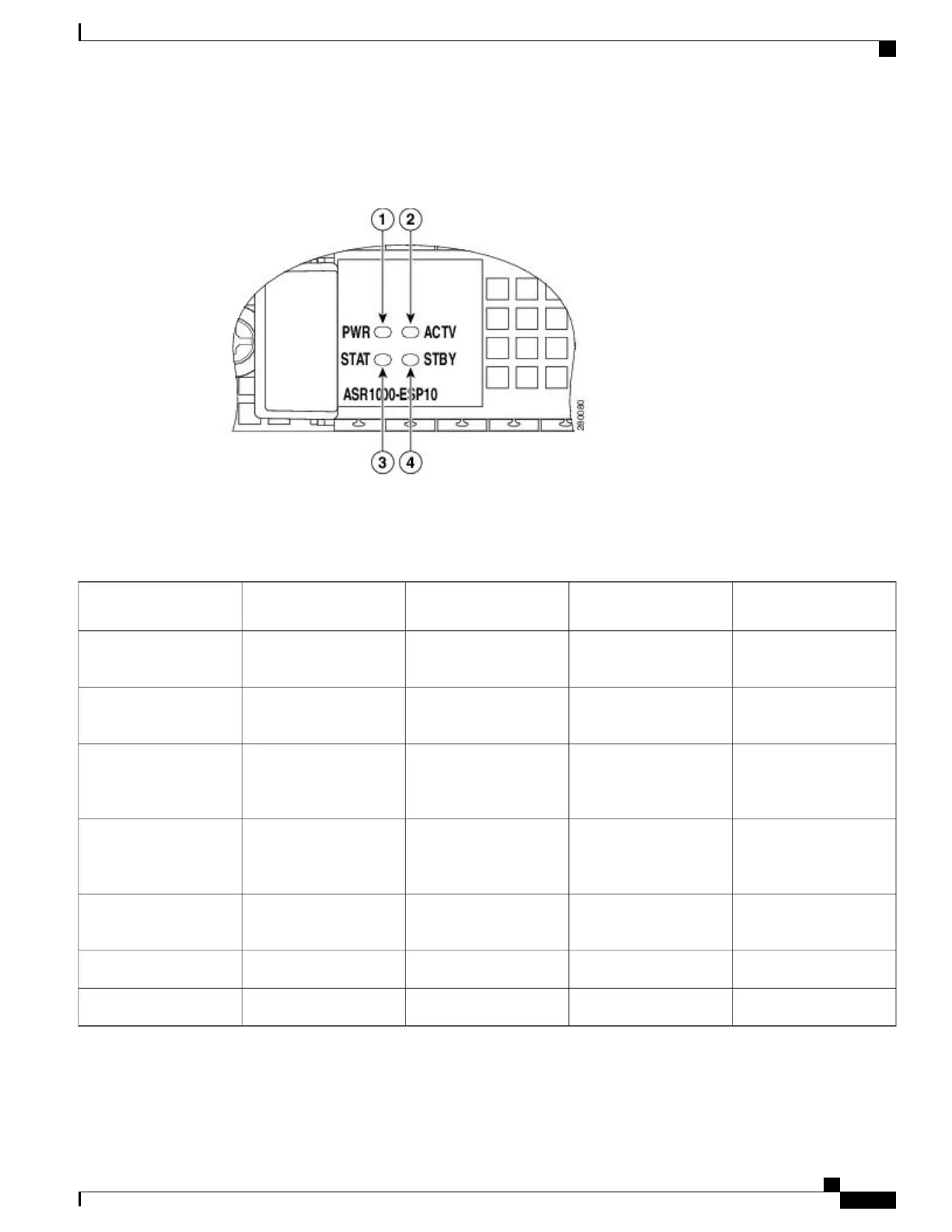

Cisco ASR1000-ESP10 image shows the LEDs on the Cisco ASR1000-ESP10.
Figure 83: Cisco ASR1000-ESP10 LEDs
c_Cisco_ASR1000-ESP5_and_ASR1000-ESP10_Description_1222814.xml describes the Cisco ASR1000-ESP5
and Cisco ASR1000-ESP10 LEDs.
Table 52: Cisco ASR1000-ESP5 and Cisco ASR1000-ESP10 LEDs
Behavior in the
Power-Up State
ColorLEDLED LabelNo.
All power supplies are
within operational limits.
Solid greenPowerPWR1
Off, the router is in
standby mode.
Off
The embedded services
processor is green when
active.
GreenActiveACTV2
Code has successfully
downloaded and is
operational.
GreenSTATUSSTAT3
BOOT ROM has
successfully loaded.
Yellow
Not booted.Red
Will always be off.NoneStandbySTBY4
Cisco ASR 1000 Series Router Hardware Installation Guide
225
Cisco ASR 1002 Router Overview and Installation
Cisco ASR 1002 Router Components

Cisco ASR 1004 Specifications

General

Product Type	Router
Form Factor	Rack-mountable
Rack Height	2U
Forwarding Capacity	Up to 20 Gbps
Total Number of Ports	Varies by configuration
Number of Total Expansion Slots	4
Product Series	ASR 1000
Model	ASR 1004
Forwarding Performance	Up to 20 Gbps
Operating System	Cisco IOS XE
Power Supply	Dual
Route Processor	ASR 1000 Series Route Processor
Network Interface Modules	SFP, SFP+, Gigabit Ethernet, 10 Gigabit Ethernet
Interfaces/Ports	Varies by configuration
Expansion Slot Type	SPA
Throughput	20 Gbps
Redundancy	Power supply, Route Processor
Interfaces	Gigabit Ethernet, 10 Gigabit Ethernet, SFP, SFP+
Storage	Up to 64 GB Flash
