the DC input wiring. The connection order is negative (–), positive (+), and GND. The DC power supply is
secured into the system chassis with two captive screws mounted on the faceplate.

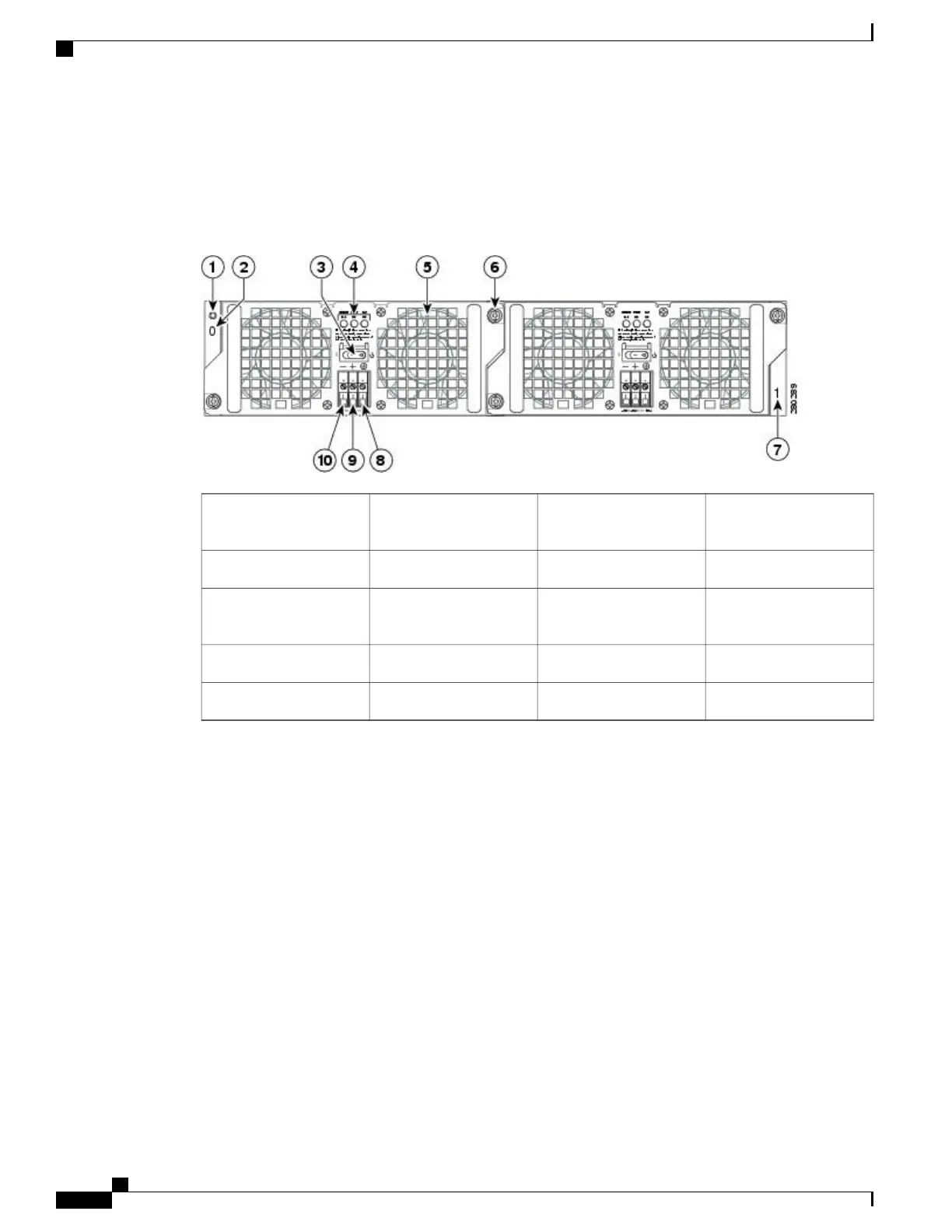

The following image shows the –48 VDC Power Supply for the Cisco ASR 1002 Router.
Figure 85: – 48 VDC Power Supply for the Cisco ASR 1002 Router
Power supply captive
installation screw
6Chassis ESD socket1
Power supply slot 1 label7Power supply slot 0 label2
Ground lead8Power supply switch
Standby/On (|)
3
Positive lead9Power supply LEDs4
Negative lead10Fan5
The Cisco ASR 1002 Router –48 VDC power supply LEDs are described in the following table.
Cisco ASR 1000 Series Router Hardware Installation Guide
228
Cisco ASR 1002 Router Overview and Installation
Power Supplies in the Cisco ASR 1002 Router

Cisco ASR 1004 Specifications

General

Product Type	Router
Form Factor	Rack-mountable
Rack Height	2U
Forwarding Capacity	Up to 20 Gbps
Total Number of Ports	Varies by configuration
Number of Total Expansion Slots	4
Product Series	ASR 1000
Model	ASR 1004
Forwarding Performance	Up to 20 Gbps
Operating System	Cisco IOS XE
Power Supply	Dual
Route Processor	ASR 1000 Series Route Processor
Network Interface Modules	SFP, SFP+, Gigabit Ethernet, 10 Gigabit Ethernet
Interfaces/Ports	Varies by configuration
Expansion Slot Type	SPA
Throughput	20 Gbps
Redundancy	Power supply, Route Processor
Interfaces	Gigabit Ethernet, 10 Gigabit Ethernet, SFP, SFP+
Storage	Up to 64 GB Flash
