Cisco ASR 1004 Hardware Installation Guide

——
Lead wire stripping area1
Remove the covering from exactly the specified length of each wire. If you strip too much of the covering,
exposed wire protruding from the terminal block will create an electrical hazard. If you strip too little of the
covering, the wire might not make a good contact with the terminal, or it might not be held securely in place
in the terminal.
Warning
Step 4
Using a 3.5mm screwdriver, insert the screwdriver at an angle to release the spring while you install the stripped lead
wire as shown in the image.

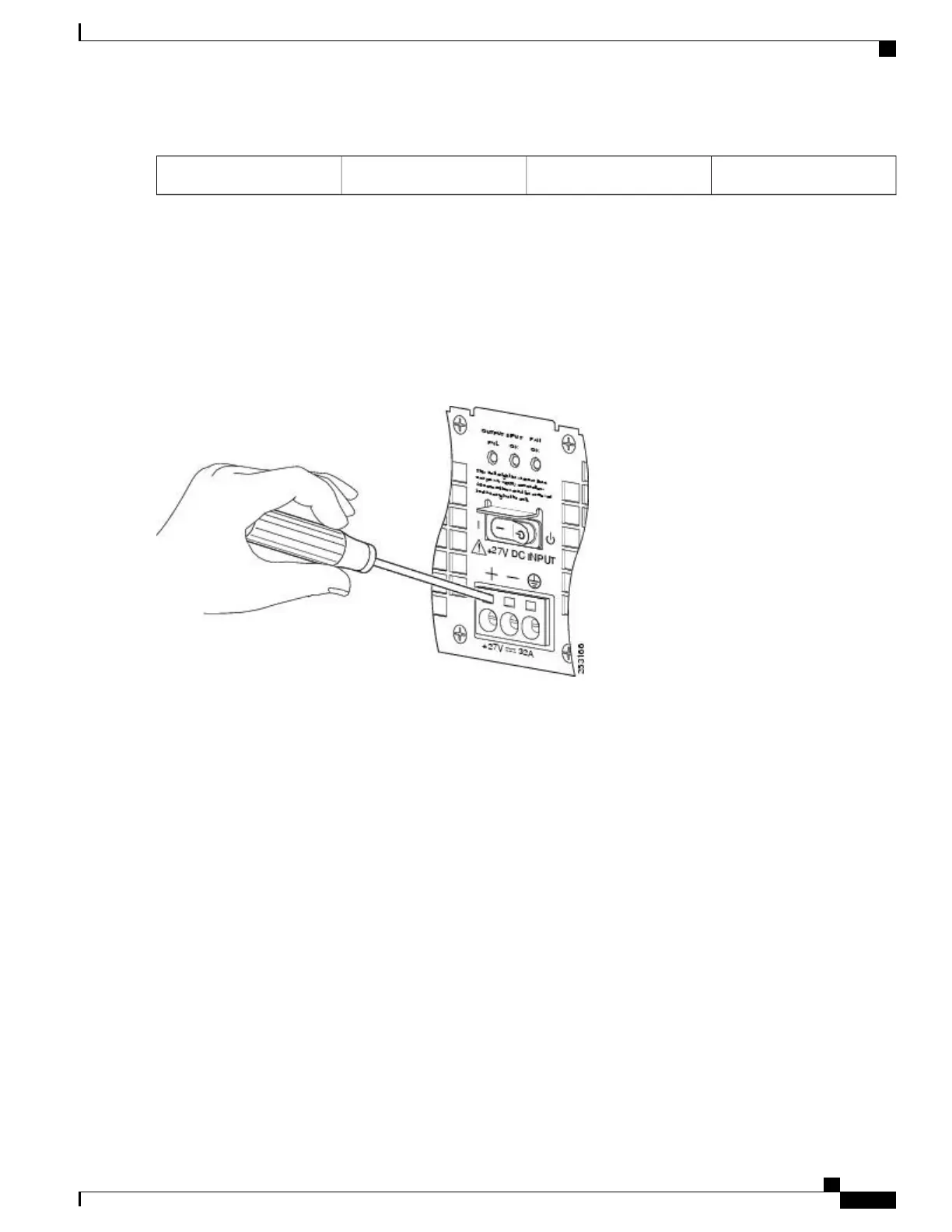

Figure 108: Inserting a Screwdriver Into the +24 VDC Power Supply Terminal Block
Step 5
Carefully push the screwdriver at an angle forward until you relieve the spring contact.
Step 6
With the screwdriver still inserted, gently push the lead wire (ground lead first) in until the copper wire, as shown in the
image, is no longer visible (see in the following image).
Check that there is no copper portion of the lead wire exposed. You only want the wire insulation visible.Caution
Cisco ASR 1000 Series Router Hardware Installation Guide
267
Cisco ASR 1002 Router Overview and Installation
Connecting Cisco 24 VDC Power Supply

Cisco ASR 1004 Specifications

General

Product Type	Router
Form Factor	Rack-mountable
Rack Height	2U
Forwarding Capacity	Up to 20 Gbps
Total Number of Ports	Varies by configuration
Number of Total Expansion Slots	4
Product Series	ASR 1000
Model	ASR 1004
Forwarding Performance	Up to 20 Gbps
Operating System	Cisco IOS XE
Power Supply	Dual
Route Processor	ASR 1000 Series Route Processor
Network Interface Modules	SFP, SFP+, Gigabit Ethernet, 10 Gigabit Ethernet
Interfaces/Ports	Varies by configuration
Expansion Slot Type	SPA
Throughput	20 Gbps
Redundancy	Power supply, Route Processor
Interfaces	Gigabit Ethernet, 10 Gigabit Ethernet, SFP, SFP+
Storage	Up to 64 GB Flash
