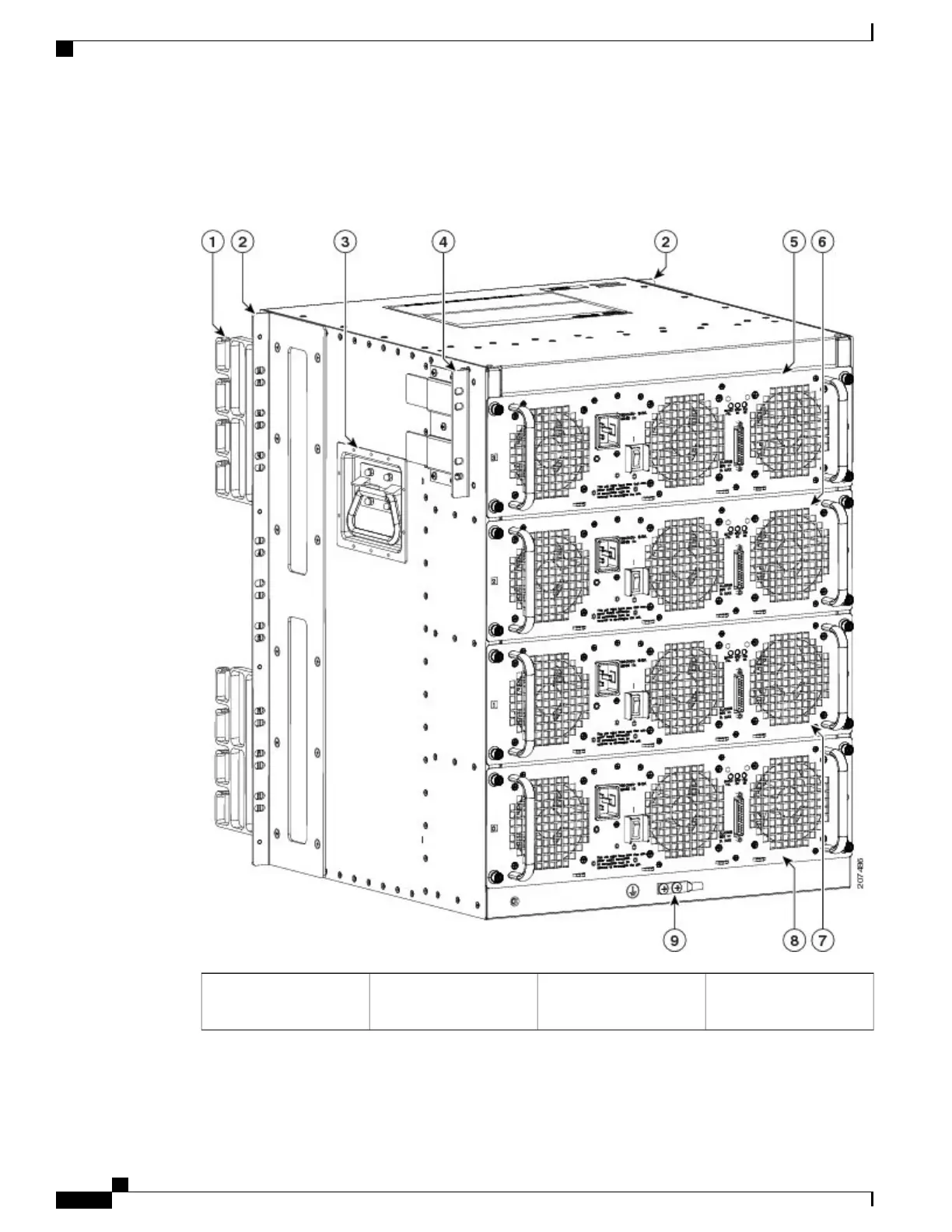

The following image shows the forward rack-mount brackets, callout number 2 and the rear rack-mount
brackets, callout number 4, on the Cisco ASR 1013 Router.
Figure 182: Forward Rack-Mount Brackets on the Cisco ASR 1013 Router
Rear rack-mount bracket4Forward rack-mount
bracket ear and holes
2
Cisco ASR 1000 Series Router Hardware Installation Guide
378
Cisco ASR 1013 Router Overview and Installation
Installing the Cisco ASR 1013 Router in a Rack

Cisco ASR 1004 Specifications

General

Product Type	Router
Form Factor	Rack-mountable
Rack Height	2U
Forwarding Capacity	Up to 20 Gbps
Total Number of Ports	Varies by configuration
Number of Total Expansion Slots	4
Product Series	ASR 1000
Model	ASR 1004
Forwarding Performance	Up to 20 Gbps
Operating System	Cisco IOS XE
Power Supply	Dual
Route Processor	ASR 1000 Series Route Processor
Network Interface Modules	SFP, SFP+, Gigabit Ethernet, 10 Gigabit Ethernet
Interfaces/Ports	Varies by configuration
Expansion Slot Type	SPA
Throughput	20 Gbps
Redundancy	Power supply, Route Processor
Interfaces	Gigabit Ethernet, 10 Gigabit Ethernet, SFP, SFP+
Storage	Up to 64 GB Flash
