The Cisco ASR 1001 Router can accommodate different integrated daughter cards. The chassis top cover
includes the integrated daughter card front panel with a common base chassis.There will be different top
covers for each integrated daughter cards and one for orders with no integrated daughter card.
The Cisco ASR 10001 Router can be shipped with different orderable configurations. The following IDC
configurations are available:
See the MIBs for the Cisco ASR 1001 Router appendix for information about the MIBs that can be used
to manage these IDCs.
Note
•
IDC-HD80G
IDC-HD80G can support a single 2.5-inch SATA HDD/SSD (see the following image).

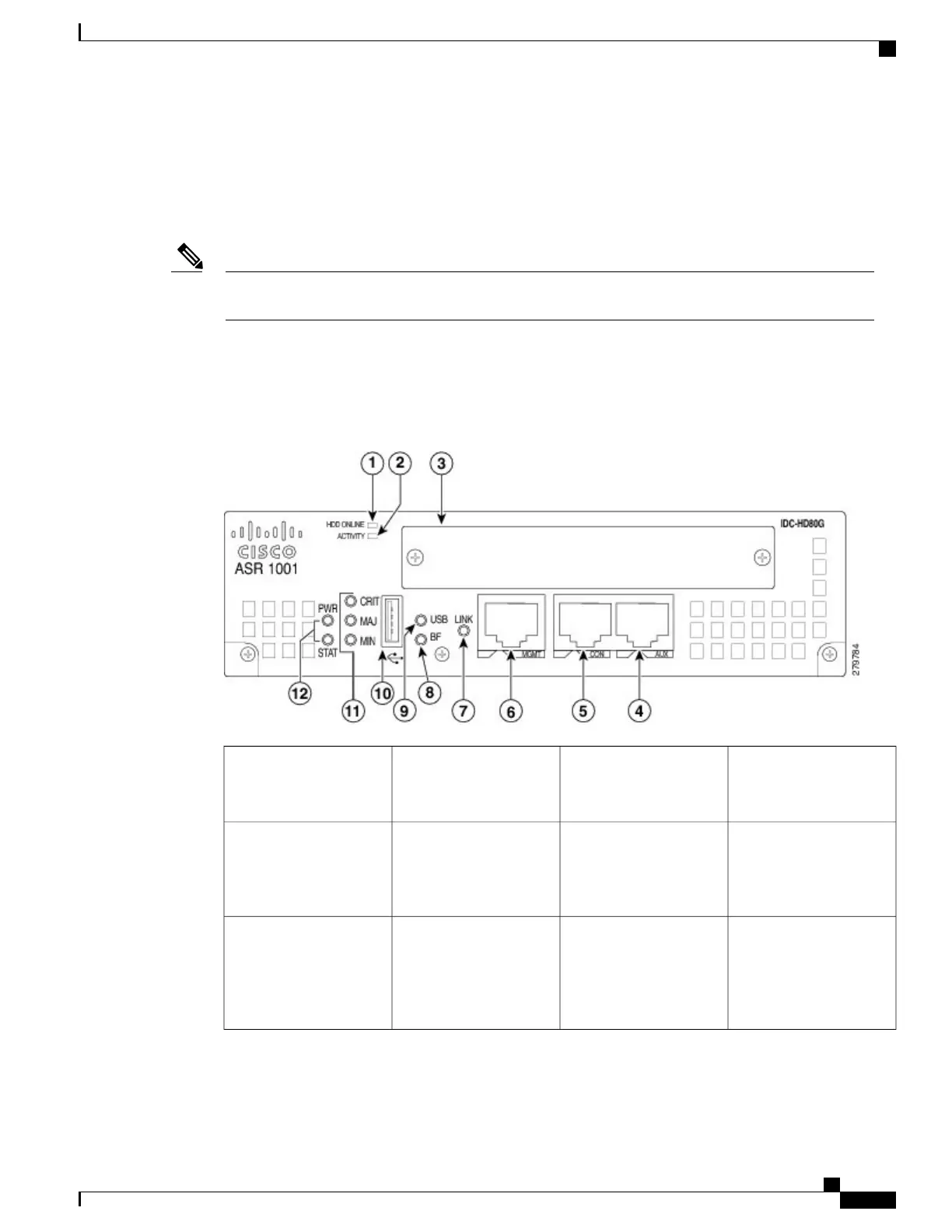

Figure 196: Cisco ASR 1001 Router with IDC-HD80G
LINK LED—Indicates
MGMT Ethernet port
activity
7
HDD Online—LED
indicates that the disk is
ready and can be accessed
1
BF—Internal bootflash
LED that indicates
activity of the EUSB
device
8
HDD Activity—LED
indicates that the disk is
currently being accessed
2
USB LED9
HDD Slot—Slot into
which the HDD is
inserted (the figure shows
an HDD inserted into the
slot)
3
Cisco ASR 1000 Series Router Hardware Installation Guide
409
Cisco ASR 1001 Router Overview and Installation
Cisco ASR 1001 Router Architecture

Cisco ASR 1004 Specifications

General

Product Type	Router
Form Factor	Rack-mountable
Rack Height	2U
Forwarding Capacity	Up to 20 Gbps
Total Number of Ports	Varies by configuration
Number of Total Expansion Slots	4
Product Series	ASR 1000
Model	ASR 1004
Forwarding Performance	Up to 20 Gbps
Operating System	Cisco IOS XE
Power Supply	Dual
Route Processor	ASR 1000 Series Route Processor
Network Interface Modules	SFP, SFP+, Gigabit Ethernet, 10 Gigabit Ethernet
Interfaces/Ports	Varies by configuration
Expansion Slot Type	SPA
Throughput	20 Gbps
Redundancy	Power supply, Route Processor
Interfaces	Gigabit Ethernet, 10 Gigabit Ethernet, SFP, SFP+
Storage	Up to 64 GB Flash
