Cisco ASR 1004 Hardware Installation Guide

DC power supply ground
lead wire
3DC power supply negative
(-) lead wire
1
——
DC power supply positive
(+) lead wire
2
Secure the wires coming in from the terminal block plug so that they cannot be disturbed by casual contact.Caution
Step 10
Use a tie wrap to secure the wires to the rack, so that the wires are not pulled from the terminal block plug by casual
contact. Make sure the tie wrap allows for some slack in the ground wire. The following figure shows the DC terminal
block plug inserted and the tie wrap secured.

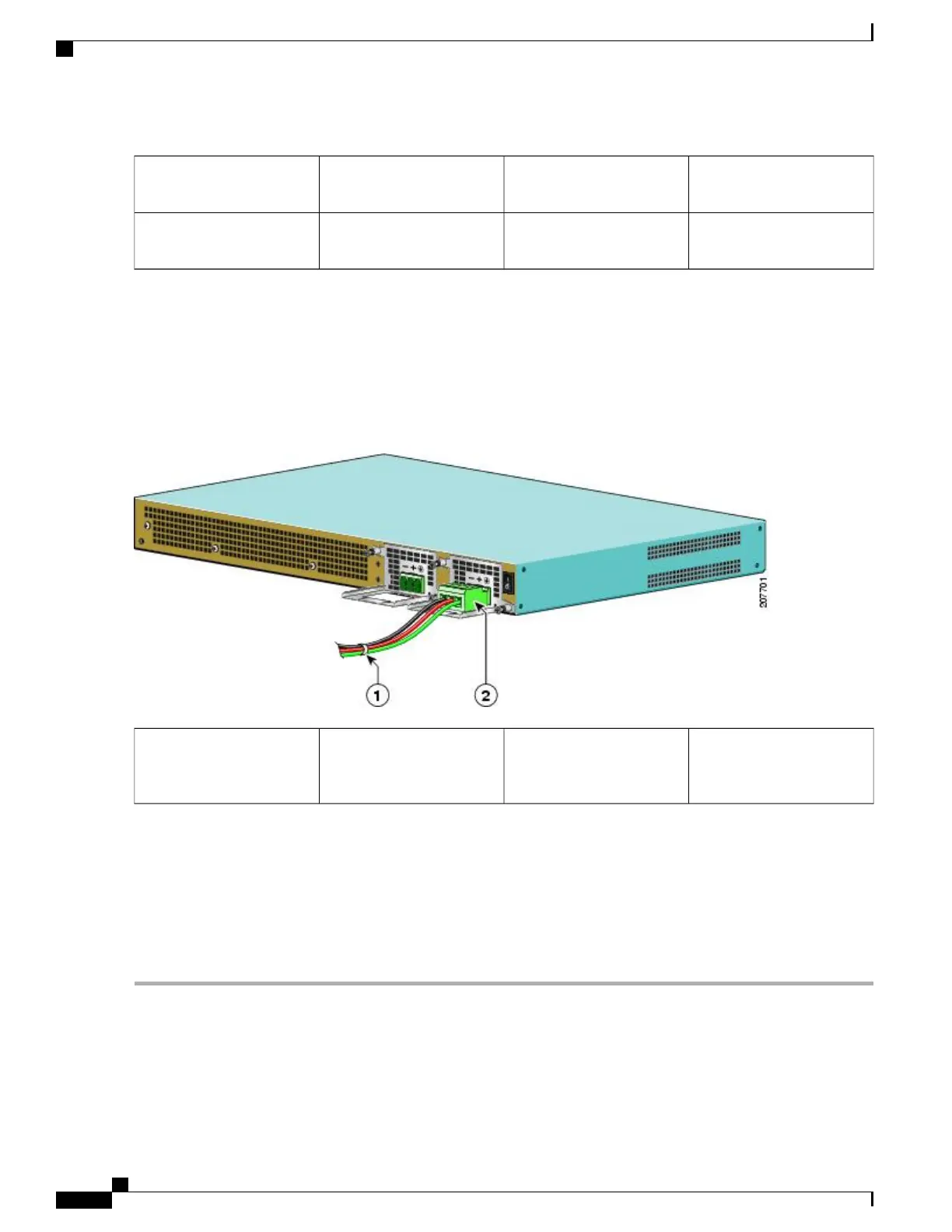

Figure 226: Complete DC Terminal Block Plug Insertion and Secure Tie Wrap
DC power supply terminal
block plug being inserted
into terminal block header.
2Lead wires secured with a
tie wrap
1
Step 11
Ensure that the terminal block plug is fully seated in the terminal block header on the DC power supply panel. You will
hear a snap or click when installed properly.
Step 12
Remove the tape (if any) from the circuit breaker switch handle, and move the circuit breaker switch handle to the On
position.
Step 13
At the rear of the router, place the power supply Standby switch in the On position to turn on the router.
The power supply LEDs light up when power is supplied to the router.
What to Do Next
This completes the procedure for connecting the DC power supply in the Cisco ASR 1001 Router.
Cisco ASR 1000 Series Router Hardware Installation Guide
458
Cisco ASR 1001 Router Overview and Installation
Installing DC Input Power on the Cisco ASR 1001 Router
