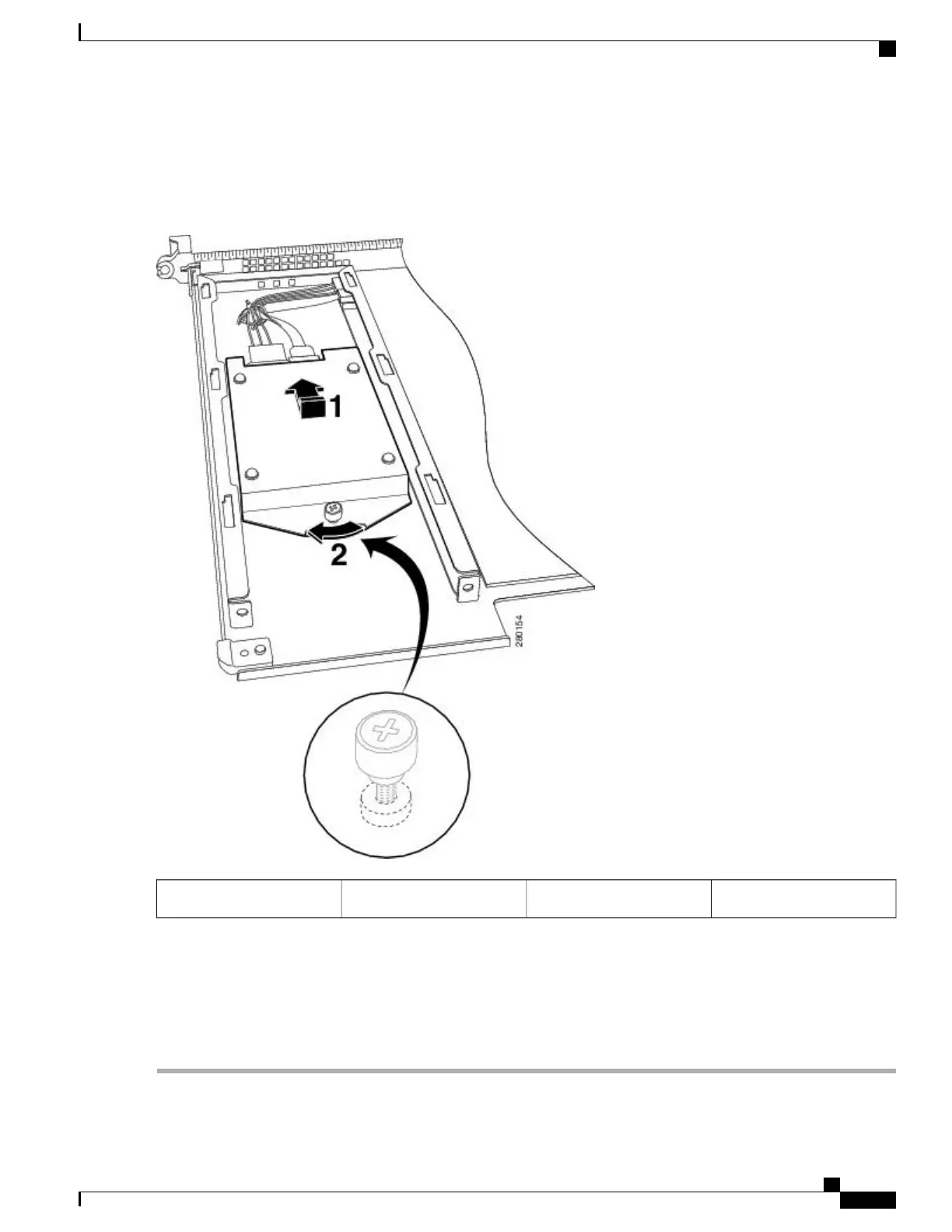

The following figure shows the Cisco ASR1000-RP1 module internal hard drive and module base.
Figure 231: Cisco ASR1000-RP1 Module Internal Hard Drive and Module Base
Carrier mating fastener2Hard drive module fastener1
Step 3
Align hard drive module to carrier base tabs, align the module fastener to base screw mate by hand, and then tighten
with screw driver.
Step 4
Replace the cover by aligning the tabs in the slot and tightening the screw fasteners.
Step 5
With two hands, grab the handles on the Cisco ASR1000-RP1 module and slide it back into its slot in the Cisco ASR
1000 Series Router and tighten the captive screw.
Cisco ASR 1000 Series Router Hardware Installation Guide
483
Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
Removing and Replacing the Cisco ASR1000-RP1 Module Internal Hard Drive

Cisco ASR 1004 Specifications

General

Product Type	Router
Form Factor	Rack-mountable
Rack Height	2U
Forwarding Capacity	Up to 20 Gbps
Total Number of Ports	Varies by configuration
Number of Total Expansion Slots	4
Product Series	ASR 1000
Model	ASR 1004
Forwarding Performance	Up to 20 Gbps
Operating System	Cisco IOS XE
Power Supply	Dual
Route Processor	ASR 1000 Series Route Processor
Network Interface Modules	SFP, SFP+, Gigabit Ethernet, 10 Gigabit Ethernet
Interfaces/Ports	Varies by configuration
Expansion Slot Type	SPA
Throughput	20 Gbps
Redundancy	Power supply, Route Processor
Interfaces	Gigabit Ethernet, 10 Gigabit Ethernet, SFP, SFP+
Storage	Up to 64 GB Flash
