DETAILED STEPS
Step 1
Run the request platform hardware filesystem harddisk: offline command.
Step 2
Slip on an ESD-preventive wrist strap.
Step 3
From the front panel of the router, unscrew the fastener screws by using a # 2 Phillips screwdriver or a flat head screwdriver
(see xref Figure 14-6).

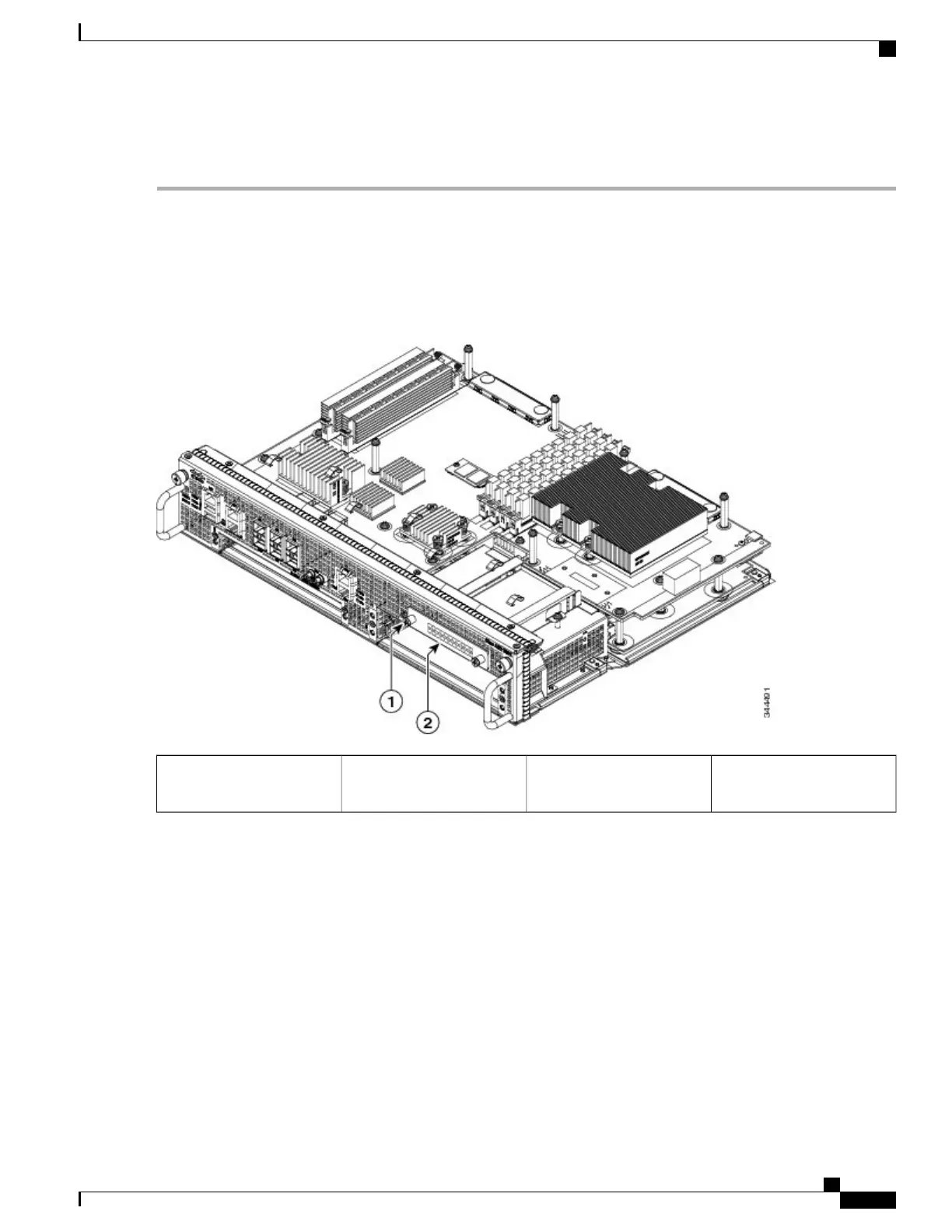

Figure 234: Cisco ASR1002-X Router Front Panel
Internal hard drive2Internal hard drive fastener
screw
1
Cisco ASR 1000 Series Router Hardware Installation Guide
489
Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
Removing the Hard Drive from the Cisco ASR 1002-X Router
