Always handle the SIP by the carrier edges and its handle; never touch the SIP components or connector
pins.
Caution

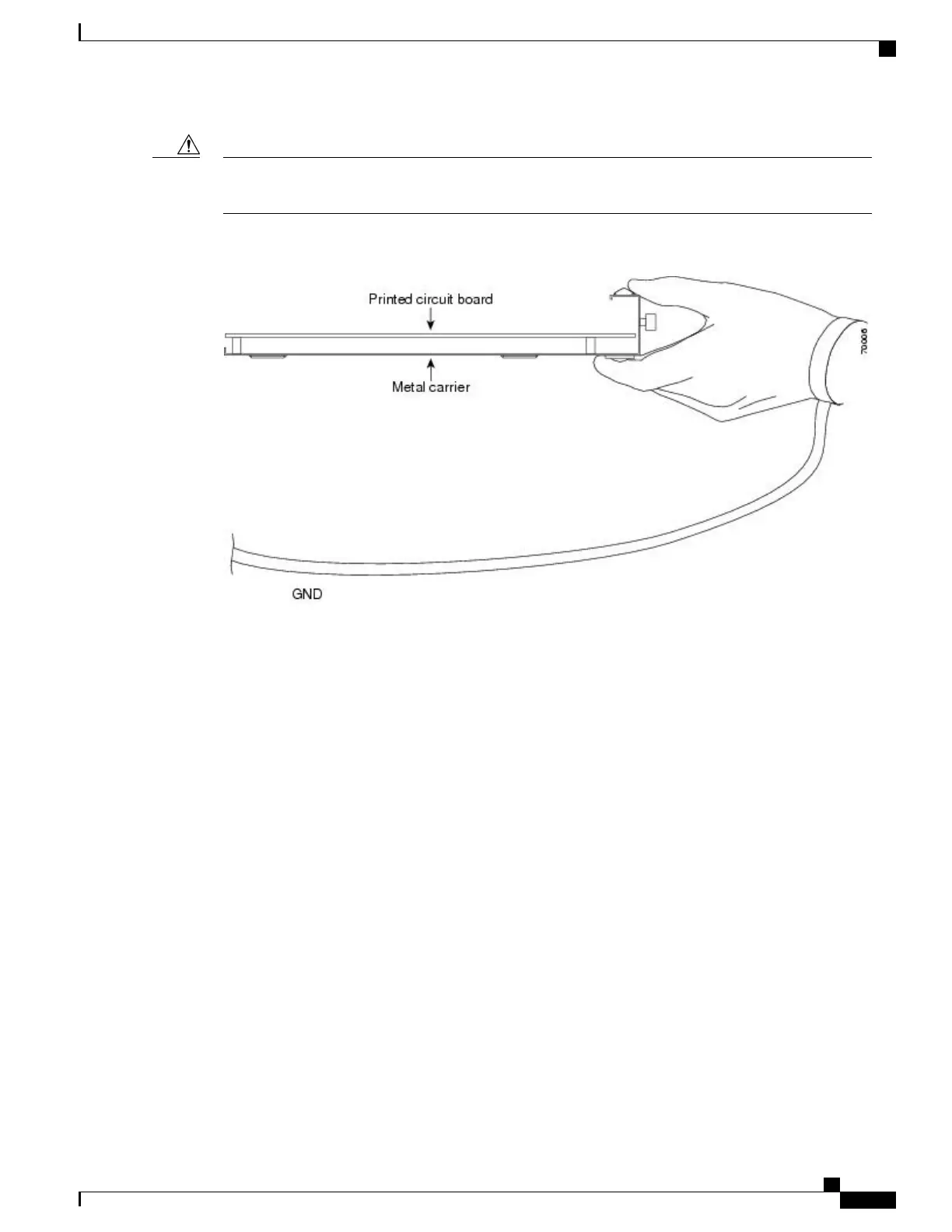

Figure 262: Handling the Cisco ASR 1000 Series SPA Interface Processor
Add a callout table.
1 - Printed circuit board
2 - Metal carrier
Although the metal carrier helps to protect the SIP and SPA from ESD, wear a preventive antistatic strap
whenever handling the SIP and SPA. Ensure that the strap makes good skin contact and connect the strap’s
clip to an unpainted chassis surface to safely channel unwanted ESD voltages to ground.
If no wrist strap is available, ground yourself by touching the metal part of the chassis.
Following are guidelines for preventing ESD damage:
•
Always use an ESD wrist strap or ankle strap when installing or replacing the Cisco ASR 1000 Series
SPA Interface (SIP) and shared port adapter. Ensure that the ESD strap makes contact with your skin.
•
Handle the Cisco ASR 1000 Series SPA Interface (SIP) or shared port adapter by its metal carrier edges
and handles; avoid touching the printed circuit board or any connector pins.
•
When removing an Cisco ASR 1000 Series SPA Interface (SIP) or shared port adapter, place it on an
antistatic surface with the printed circuit board components facing upward, or in a static shielding bag.
If you are returning a shared port adapter or Cisco ASR 1000 Series SPA Interface (SIP) to the factory,
immediately place it in a static shielding bag.
Cisco ASR 1000 Series Router Hardware Installation Guide
535
Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
Electrostatic Discharge Prevention

Cisco ASR 1004 Specifications

General

Product Type	Router
Form Factor	Rack-mountable
Rack Height	2U
Forwarding Capacity	Up to 20 Gbps
Total Number of Ports	Varies by configuration
Number of Total Expansion Slots	4
Product Series	ASR 1000
Model	ASR 1004
Forwarding Performance	Up to 20 Gbps
Operating System	Cisco IOS XE
Power Supply	Dual
Route Processor	ASR 1000 Series Route Processor
Network Interface Modules	SFP, SFP+, Gigabit Ethernet, 10 Gigabit Ethernet
Interfaces/Ports	Varies by configuration
Expansion Slot Type	SPA
Throughput	20 Gbps
Redundancy	Power supply, Route Processor
Interfaces	Gigabit Ethernet, 10 Gigabit Ethernet, SFP, SFP+
Storage	Up to 64 GB Flash
