Cisco ASR 1004 Hardware Installation Guide

Before performing any of the following procedures, ensure that power is removed from the DC circuit.
Statement 1003
Warning
Only trained and qualified personnel should be allowed to install, replace, or service this equipment.
Statement 1030
Warning
Installation of the equipment must comply with local and national electrical codes. Statement 1074Warning

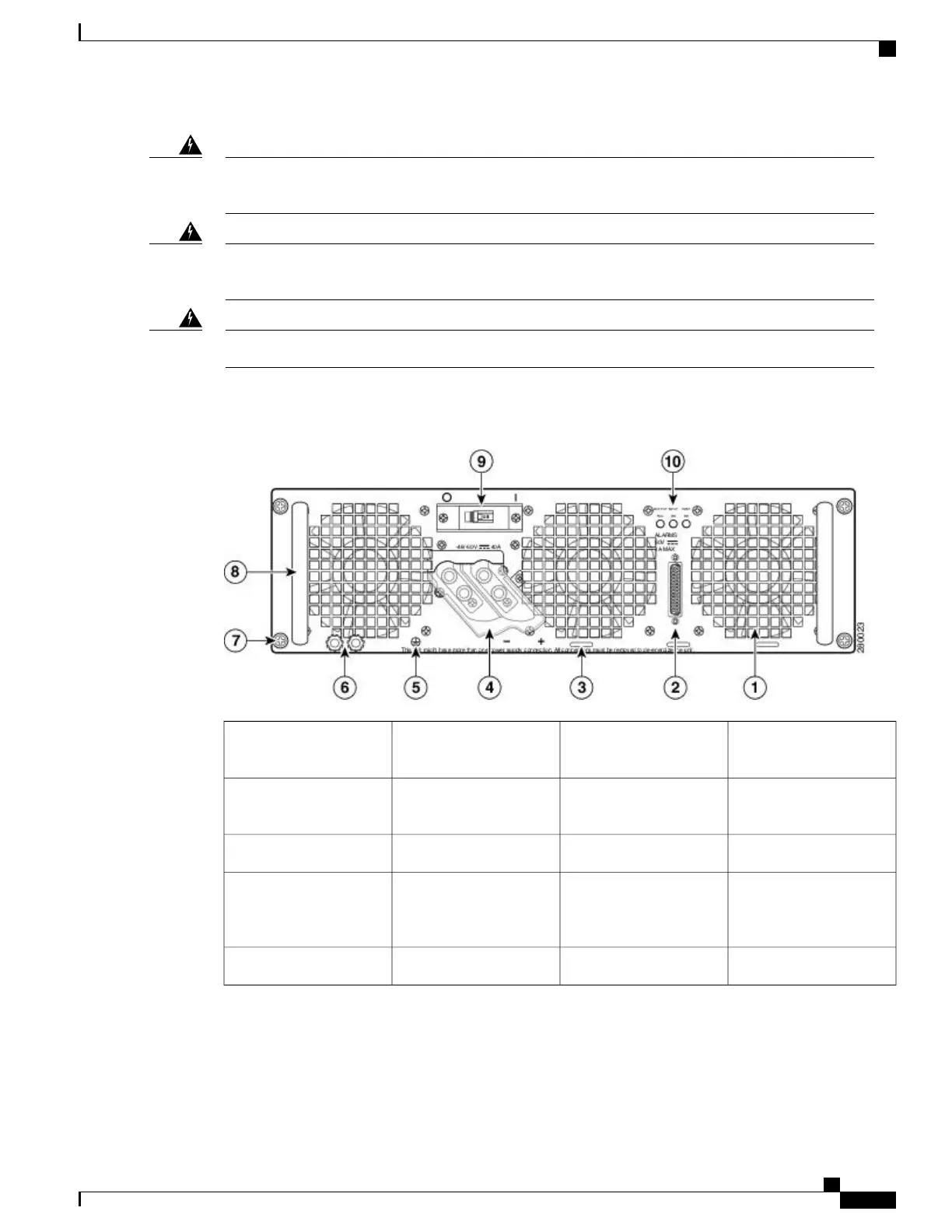

The following figure shows the ASR1006-PWR-DC power supply and components.
Figure 265: Cisco ASR 1006 Router DC Power Supply (ASR1006-PWR-DC)
DC power supply ground
studs
6Fan1
DC power supply captive
screw
7DB-25 alarm connector*2
DC power supply handle8Tie-wrap tab3
On/Off (|/O) circuit
breaker switch
9DC power supply
terminal block and plastic
cover
4
Power supply LEDs10Ground symbol5
Cisco ASR 1000 Series Router Hardware Installation Guide
543
Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
Removing and Replacing a DC Power Supply in Cisco ASR 1006 Router

Cisco ASR 1004 Specifications

General

Product Type	Router
Form Factor	Rack-mountable
Rack Height	2U
Forwarding Capacity	Up to 20 Gbps
Total Number of Ports	Varies by configuration
Number of Total Expansion Slots	4
Product Series	ASR 1000
Model	ASR 1004
Forwarding Performance	Up to 20 Gbps
Operating System	Cisco IOS XE
Power Supply	Dual
Route Processor	ASR 1000 Series Route Processor
Network Interface Modules	SFP, SFP+, Gigabit Ethernet, 10 Gigabit Ethernet
Interfaces/Ports	Varies by configuration
Expansion Slot Type	SPA
Throughput	20 Gbps
Redundancy	Power supply, Route Processor
Interfaces	Gigabit Ethernet, 10 Gigabit Ethernet, SFP, SFP+
Storage	Up to 64 GB Flash
