DETAILED STEPS
Step 1
Slip on the ESD-preventive wrist strap that was included in the accessory kit.
Step 2
Before you turn off a power supply, make certain the chassis is grounded.
Step 3
Turn the power supply standby switch to the Standby position. See the following figure.

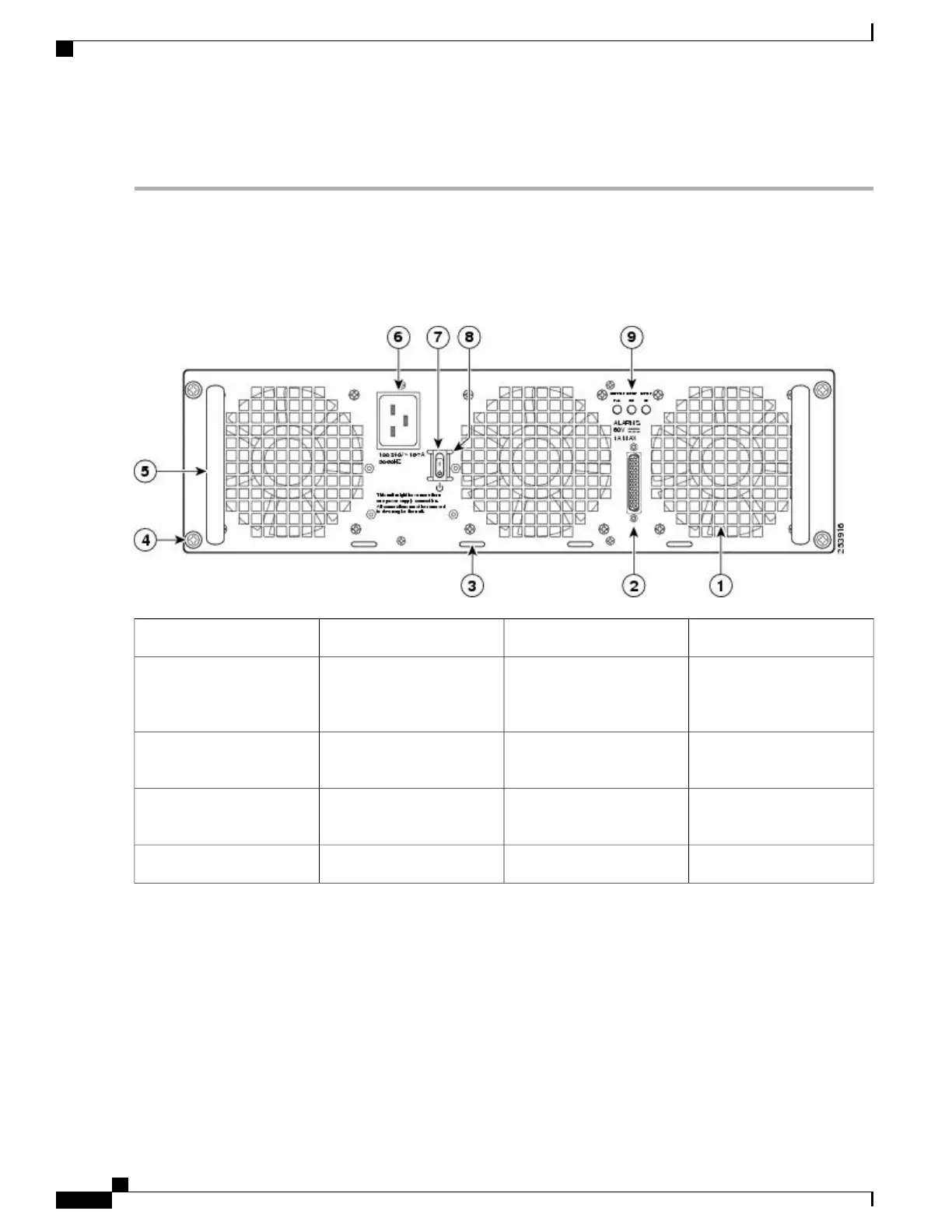

Figure 293: Cisco ASR 1013 Router AC Power Inlet and Standby Switch
AC power inlet6AC power supply fan1
AC power supply standby
switch. A standby switch is
not considered a disconnect.
7DB-25 alarm connector*2
Protective sides around the
standby switch
8Cable tie wrap tabs3
AC power supply LEDs9AC power supply captive
screws
4
——
AC power supply handle5
Cisco ASR 1000 Series Router Hardware Installation Guide
588
Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
Removing and Replacing an AC Power Supply in Cisco ASR 1013 Router
