SUMMARY STEPS
1.
On the rear of the router, turn the power switch to the Standby position.
2.
Unplug the power cable from the power source.
3.
You must remover the top cover from the chassis before you remove any power supply.
4.
To remove the power cord from PS1, you must position the power supply cable in order to access the
power supply fasteners. Hold back the power supply cable in PS0, as shown in the following figure making
sure not to unplug the power cable.
5.
Continue to hold back the power supply cable in PS0, to gain access to the fastener. Unscrew the both
fasteners on the power supply in slot 1.
6.
Once the power supply fasteners are loosened, grasp the handle with one hand and support the weight of
power supply with the other hand and pull the power supply out of the slot (see the following figure).
7.
Repeat the same steps to remove the AC power supply from Slot PS0.
DETAILED STEPS
Step 1
On the rear of the router, turn the power switch to the Standby position.
Step 2
Unplug the power cable from the power source.
Step 3
You must remover the top cover from the chassis before you remove any power supply.
Step 4
To remove the power cord from PS1, you must position the power supply cable in order to access the power supply
fasteners. Hold back the power supply cable in PS0, as shown in the following figure making sure not to unplug the
power cable.

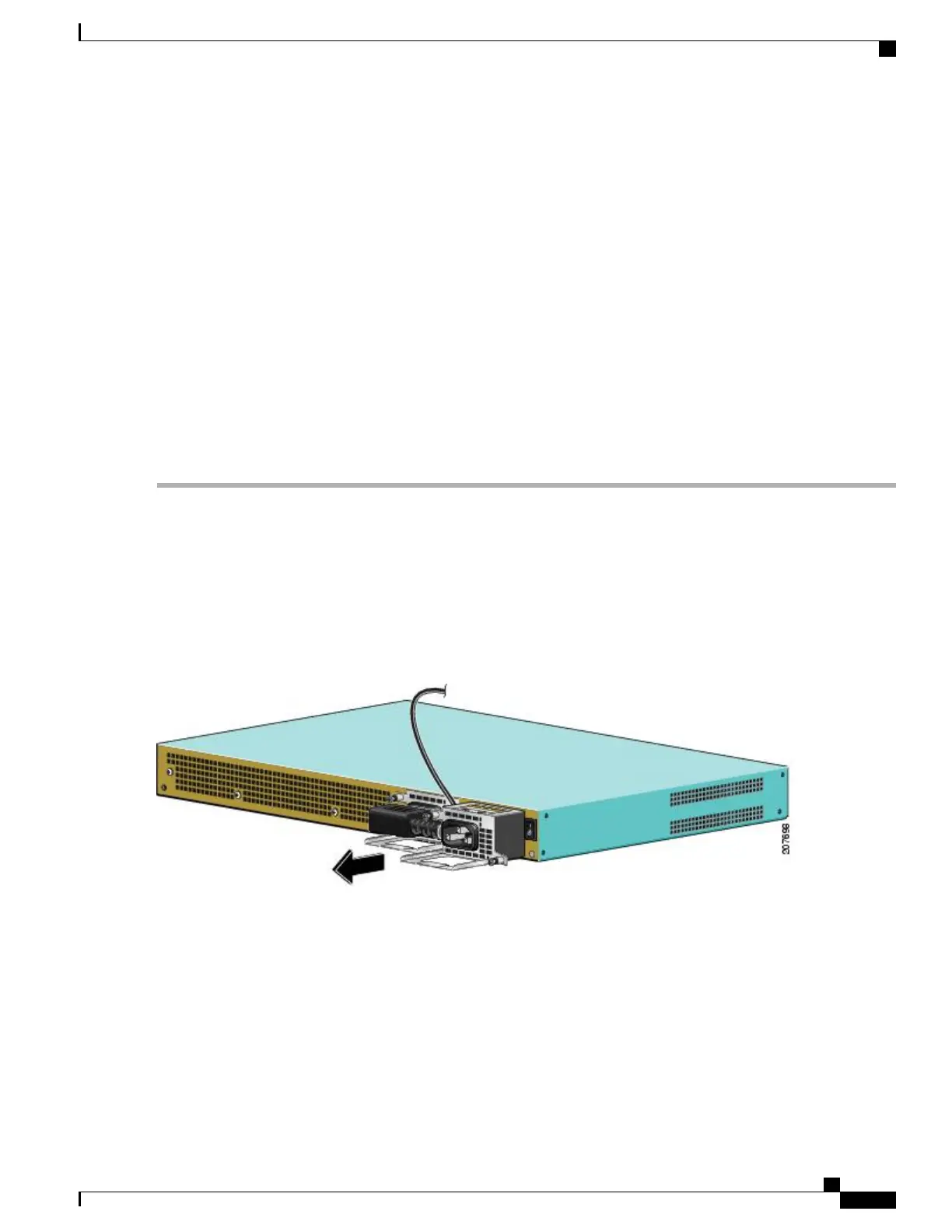

Figure 303: Positioning the AC Power Supply Cable in Slot PS0
Step 5
Continue to hold back the power supply cable in PS0, to gain access to the fastener. Unscrew the both fasteners on the
power supply in slot 1.
The Cisco ASR 1001 power supplies are long and narrow. It is recommended that while you pull the power supply
out of the chassis, support the power supply from the bottom with the other hand.
Tip
Cisco ASR 1000 Series Router Hardware Installation Guide
603
Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
Removing AC Power Supply from the Cisco ASR 1001 Router
