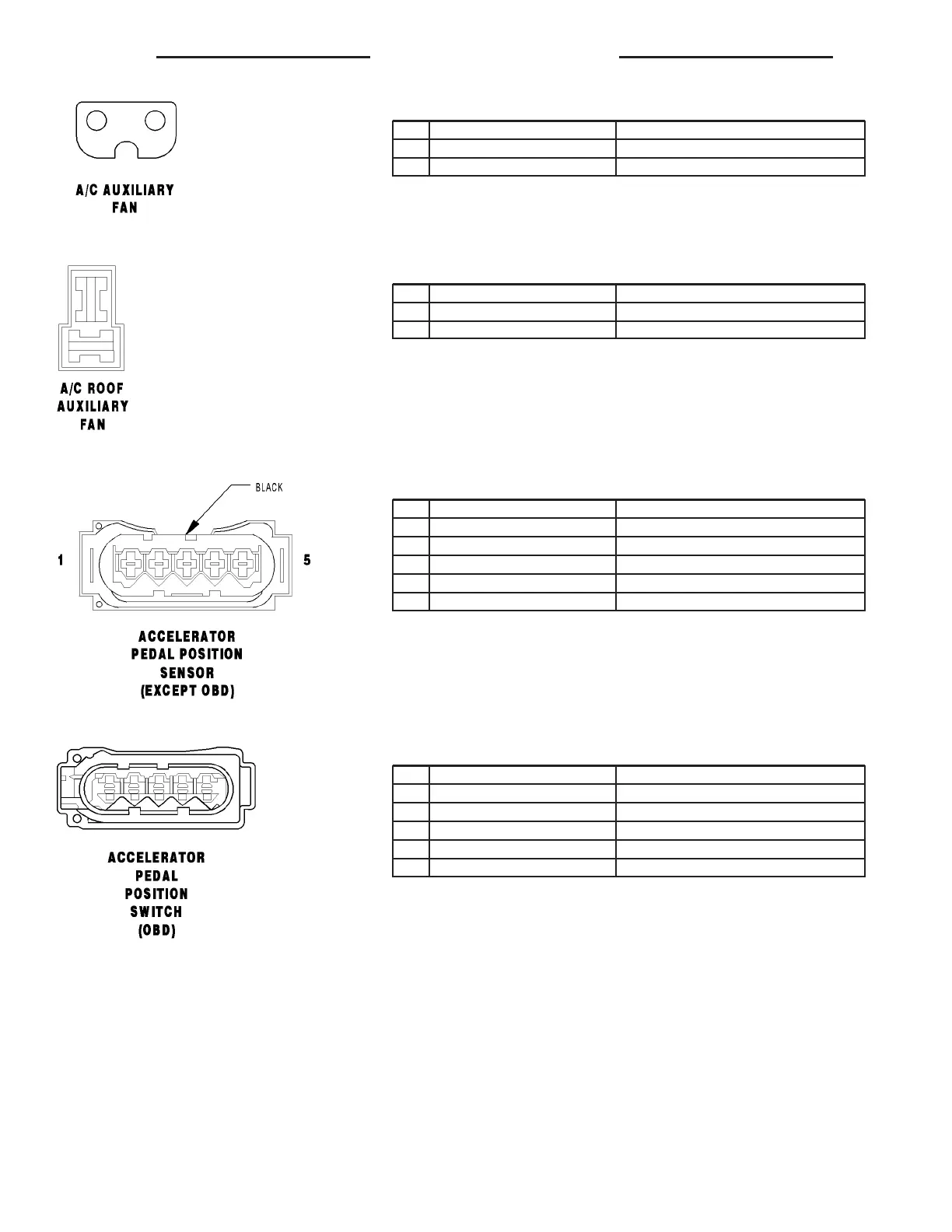

A/C AUXILIARY FAN
CAV CIRCUIT FUNCTION
1 14DG/BK A/C AUXILIARY FAN RELAY OUTPUT
214BR GROUND
A/C ROOF AUXILIARY FAN
CAV CIRCUIT FUNCTION
1 14BL FUSED A/C ROOF AUXILIARY FAN RELAY OUTPUT
214BR GROUND
ACCELERATOR PEDAL POSITION SENSOR (EXCEPT OBD) - BLACK
CAV CIRCUIT FUNCTION
1 18BL/RD ACCEL PEDAL POSITION SENSOR 5 VOLT SUPPLY
2 18BR/BL ACCEL PEDAL POSITION SENSOR GROUND NO. 1
3 18BL/DG ACCEL PEDAL POSITION SENSOR SIGNAL NO. 1
4 18BR/GY ACCEL PEDAL POSITION SENSOR GROUND NO. 2
5 18GY/DG ACCEL PEDAL POSITION SENSOR SIGNAL NO. 2
ACCELERATOR PEDAL POSITION SENSOR (OBD)
CAV CIRCUIT FUNCTION
1 18BL/DG ACCEL PEDAL POSITION SENSOR SIGNAL NO. 1
2 18BR/GY ACCEL PEDAL POSITION SENSOR GROUND NO. 2
3 18GY/DG ACCEL PEDAL POSITION SENSOR SIGNAL NO. 2
4 18BL/RD ACCEL PEDAL POSITION SENSOR 5 VOLT SUPPLY
5 18BR/BL ACCEL PEDAL POSITION SENSOR GROUND NO. 1
8W - 80 - 4 8W-80 CONNECTOR PIN-OUTS VA
