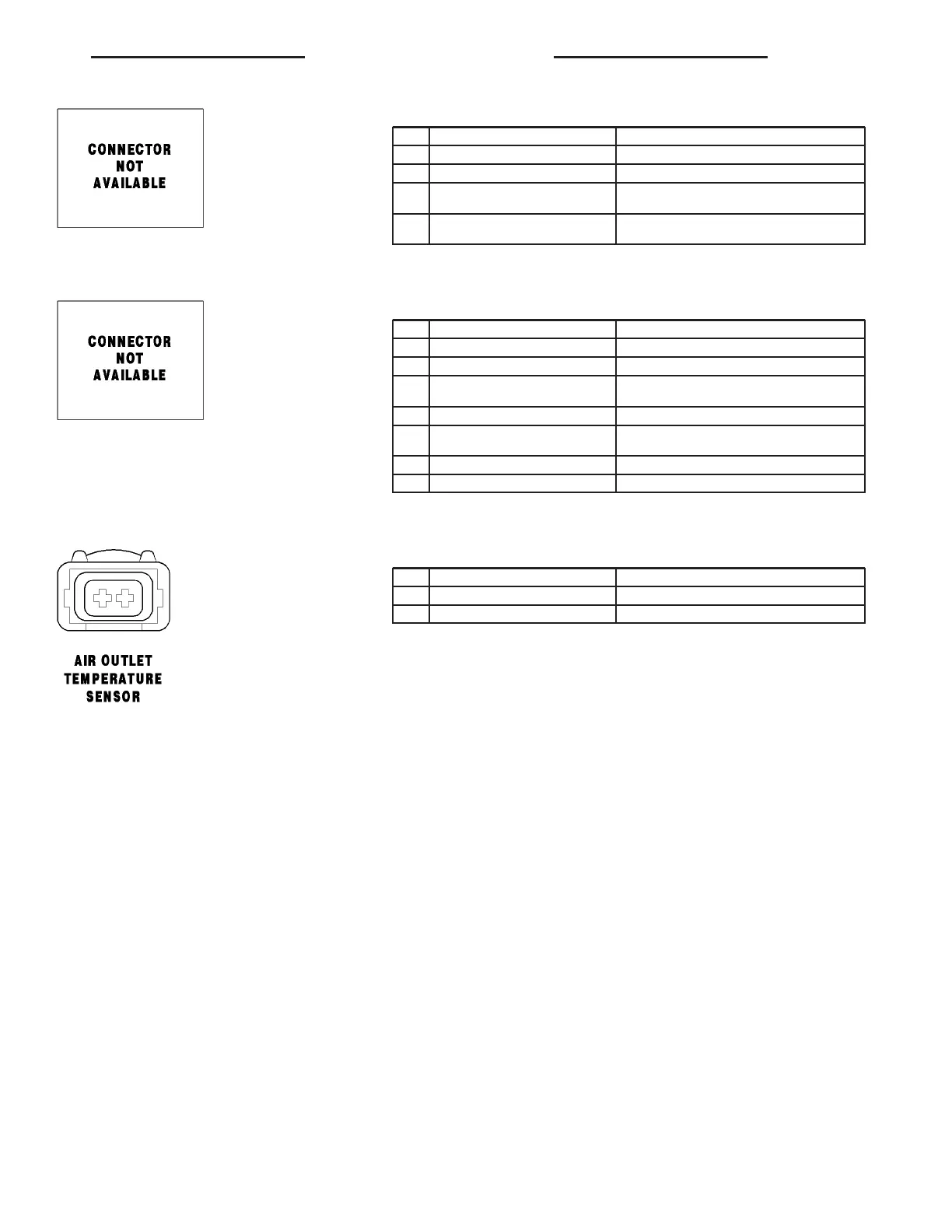

ADDITIONAL HEAT EXCHANGER
CAV CIRCUIT FUNCTION
A12BR GROUND
B 12RD/BL AUXILIARY HEATER RELAY OUTPUT
C 16VT/BL ADDITIONAL HEAT EXCHANGER CAV C TO HEAT EX-
CHANGER SWITCH CAV 7
D 16VT/YL ADDITIONAL HEAT EXCHANGER CAV D TO HEAT EX-
CHANGER SWITCH CAV 4
ADDITIONAL HEAT EXCHANGER SWITCH
CAV CIRCUIT FUNCTION
1 16GY/DG/RD LAMP DRIVER
3 16BK/BL/DG FUSED IGNITION SWITCH OUTPUT
4 16VT/YL ADDITIONAL HEAT EXCHANGER SWITCH CAV 4 TO
ADDITIONAL HEAT EXCHANGER CAV D
516BR GROUND
7 16VT/BL ADDITIONAL HEAT EXCHANGER SWITCH CAV 7 TO
ADDITIONAL HEAT EXCHANGER CAV C
8 16BK/BL/DG FUSED IGNITION SWITCH OUTPUT
10 16BR GR OU N D
AIR OUTLET TEMPERATURE SENSOR
CAV CIRCUIT FUNCTION
1 18BR/GY AIR OUTLET TEMPERATURE SENSOR SIGNAL
2 18BR/BL SENSOR GROUND
