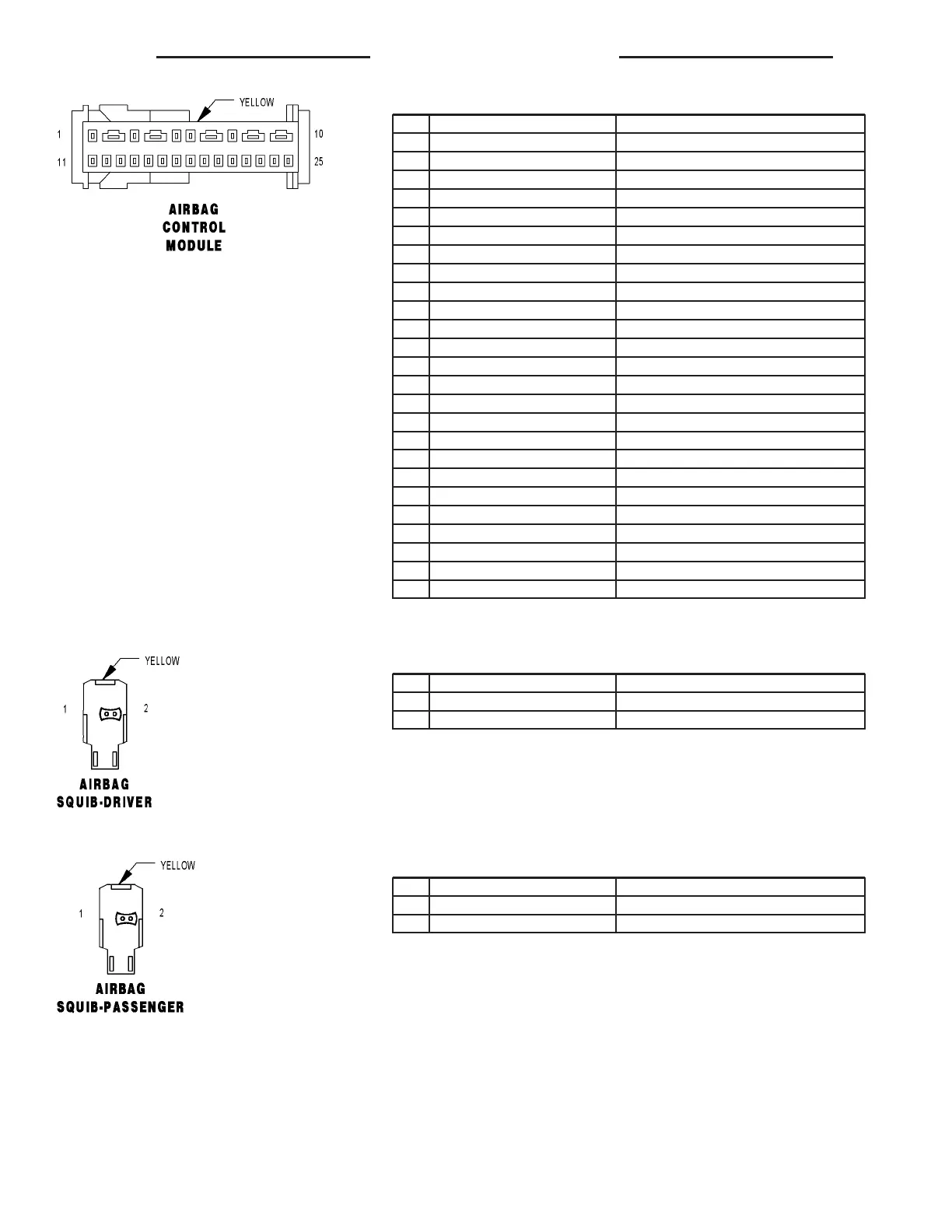

AIRBAG CONTROL MODULE - YELLOW
CAV CIRCUIT FUNCTION
1 20BL DRIVER SEAT BELT TENSIONER LINE 2
2 20BR/YL DRIVER SEAT BELT TENSIONER LINE 1
3 20BL PASSENGER SEAT BELT TENSIONER LINE 2
4 20BR PASSENGER SEAT BELT TENSIONER LINE 1
5 20BK FUSED IGNITION SWITCH OUTPUT (RUN-START)
620BR GROUND
7 20YL AIRBAG WARNING INDICATOR DRIVER
8- -
9 20BK/RD K-ACM
10 20DG DRIVER AIRBAG SQUIB 1 LINE 2
11 20VT DRIVER AIRBAG SQUIB 1 LINE 1
12 - -
13 20BL/DG PASSENGER AIRBAG SQUIB 1 LINE 2
14 20BR/DG PASSENGER AIRBAG SQUIB 1 LINE 1
15 - -
16 - -
17 - -
18 - -
19 - -
20 20DG ENHANCED ACCIDENT REPORT DRIVER
21 -
22 -
23 -
24 -
25 -
AIRBAG SQUIB-DRIVER - YELLOW
CAV CIRCUIT FUNCTION
1 20DG DRIVER AIRBAG SQUIB 1 LINE 2
2 20VT DRIVER AIRBAG SQUIB 1 LINE 1
AIRBAG SQUIB-PASSENGER - YELLOW
CAV CIRCUIT FUNCTION
1 20BL/DG PASSENGER AIRBAG SQUIB 1 LINE 2
2 20BR/DG PASSENGER AIRBAG SQUIB 1 LINE 1
8W - 80 - 6 8W-80 CONNECTOR PIN-OUTS VA
