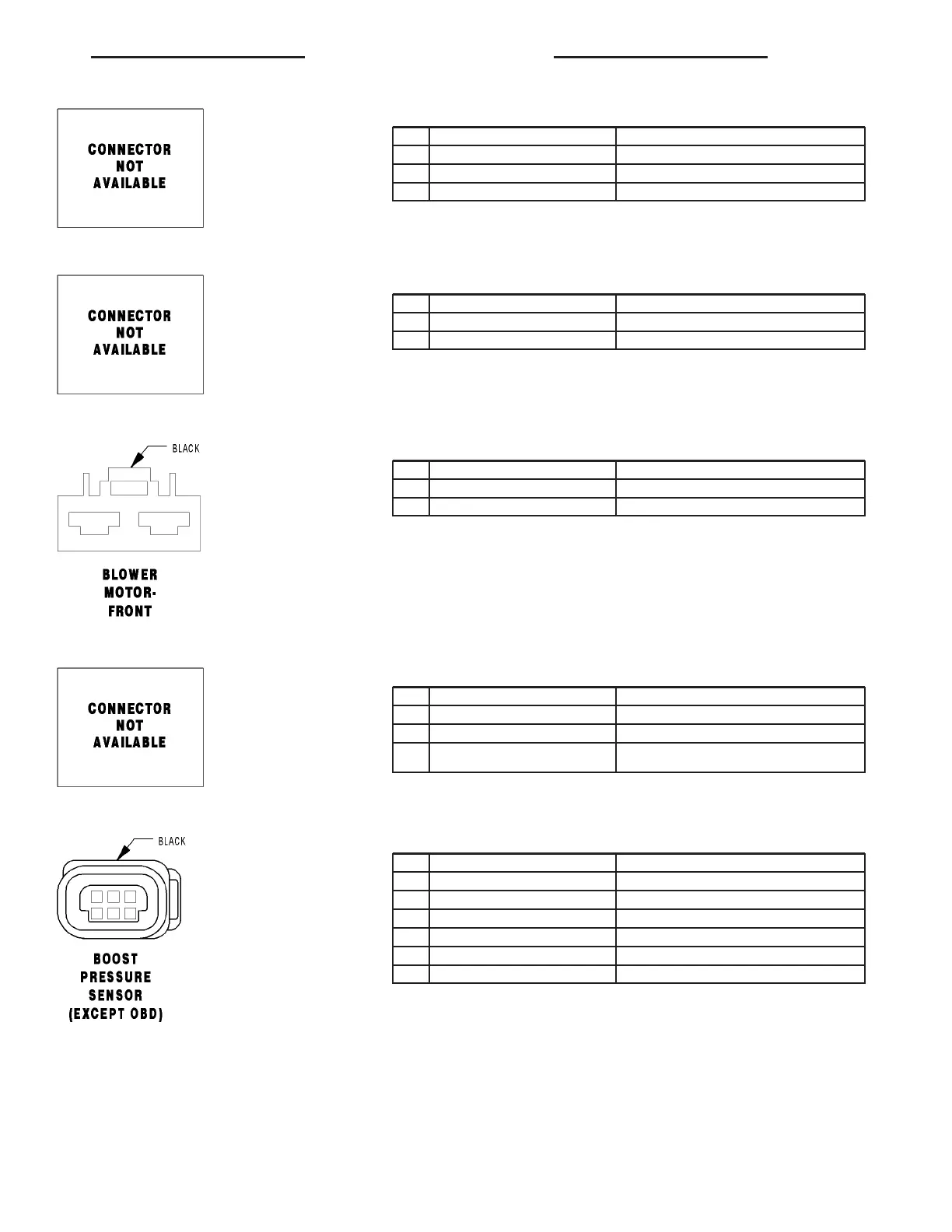

BLOWER MOTOR RESISTOR BLOCK C2
CAV CIRCUIT FUNCTION
1 12YL/BK BLOWER MOTOR (+) SELECT 3
2 12YL BLOWER MOTOR (+) SELECT 1
3 12WT/BK BLOWER MOTOR (+) SELECT 2
BLOWER MOTOR RESISTOR BLOCK C3
CAV CIRCUIT FUNCTION
1 12RD FUSED B(+)
2 12RD/BL BLOWER MOTOR (+)
BLOWER MOTOR-FRONT - BLACK
CAV CIRCUIT FUNCTION
1 12RD/BL BLOWER MOTOR (+)
212BK GROUND
BODY PLUG CONNEC TOR
CAV CIRCUIT FUNCTION
1 14BL/YL D(+) RELAY NO. 2 OUTPUT
2 14RD FUSED B(+)
3 14BK/YL FUSED IGNITION SWITCH RUN-START RELAY OUT-
PUT
BOOST PRESSURE SENSOR (EXCEPT OBD) - BLACK
CAV CIRCUIT FUNCTION
1 18BR/WT BOOST PRESSURE SENSOR GROUND
2 18WT/DG BOOST PRESSURE SENSOR SIGNAL
3 18WT/RD BOOST PRESSURE SENSOR 5 VOLT SUPPLY
4- -
5- -
6- -
