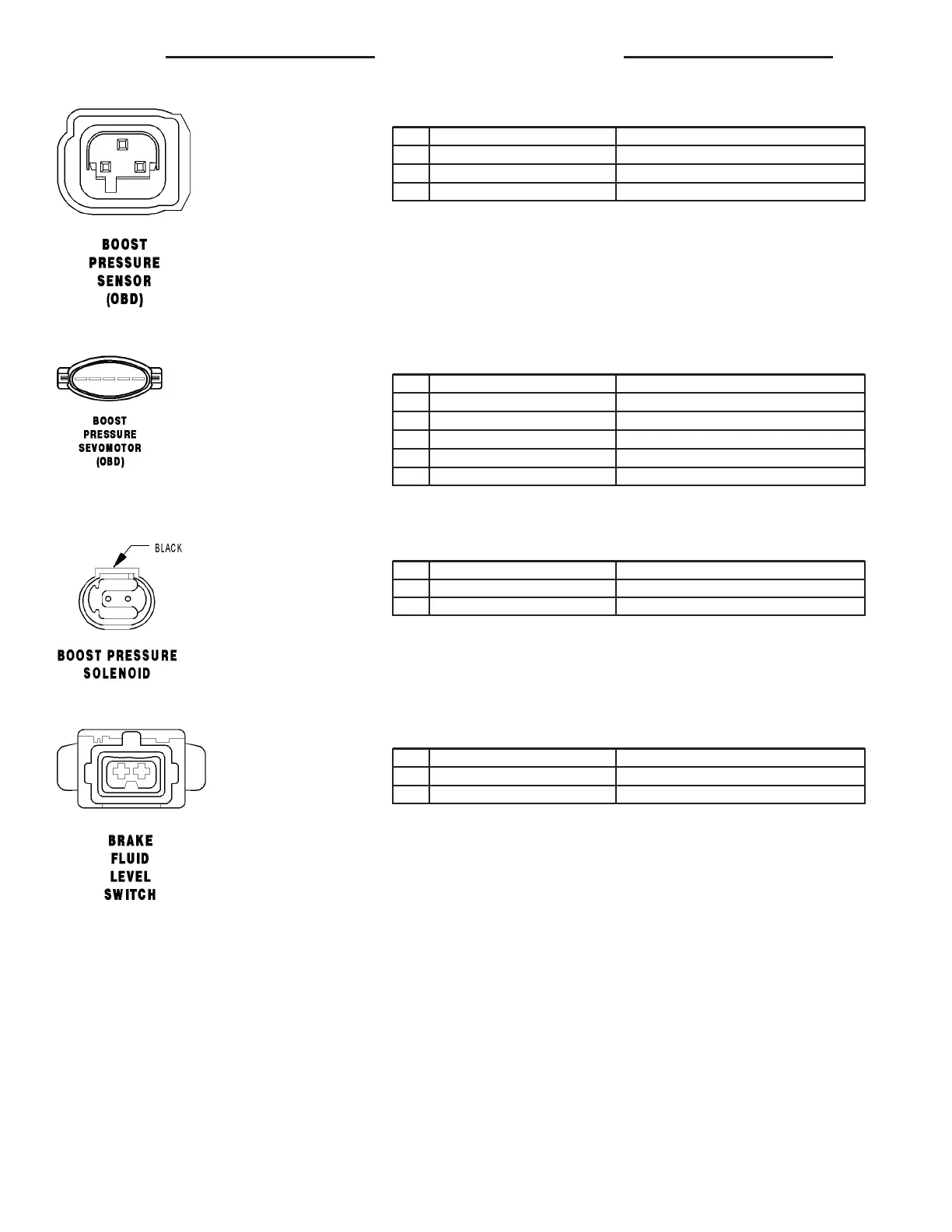

BOOST PRESSURE SENSOR (OBD)
CAV CIRCUIT FUNCTION
1 18BR/WT SENSOR GROUND
2 18WT/DG BOOST PRESSURE SENSOR SIGNAL
3 18WT/RD BOOST PRESSURE SENSOR 5 VOLT SUPPLY
BOOST PRESSURE SERVOMOTOR (OBD)
CAV CIRCUIT FUNCTION
1 16YL/BK FUSED ENGINE CONTROL RELAY OUTPUT
2 16YL/WT GROUND
3- -
4 16YL/DG BOOST PRESSURE SERVOMOTOR CONTROL
5- -
BOOST PRESSURE SOLENOID - BLACK
CAV CIRCUIT FUNCTION
1 20WT BOOST PRESSURE SOLENOID CONTROL
2 20BR BOOST PRESSURE SOLENOID 12 VOLT SUPPLY
BRAKE FLUID LEVEL SWITCH
CAV CIRCUIT FUNCTION
1 20BR/YL BRAKE FLUID LEVEL INDICATOR SIGNAL
216BR GROUND
8W - 80 - 10 8W-80 CONNECTOR PIN-OUTS VA
