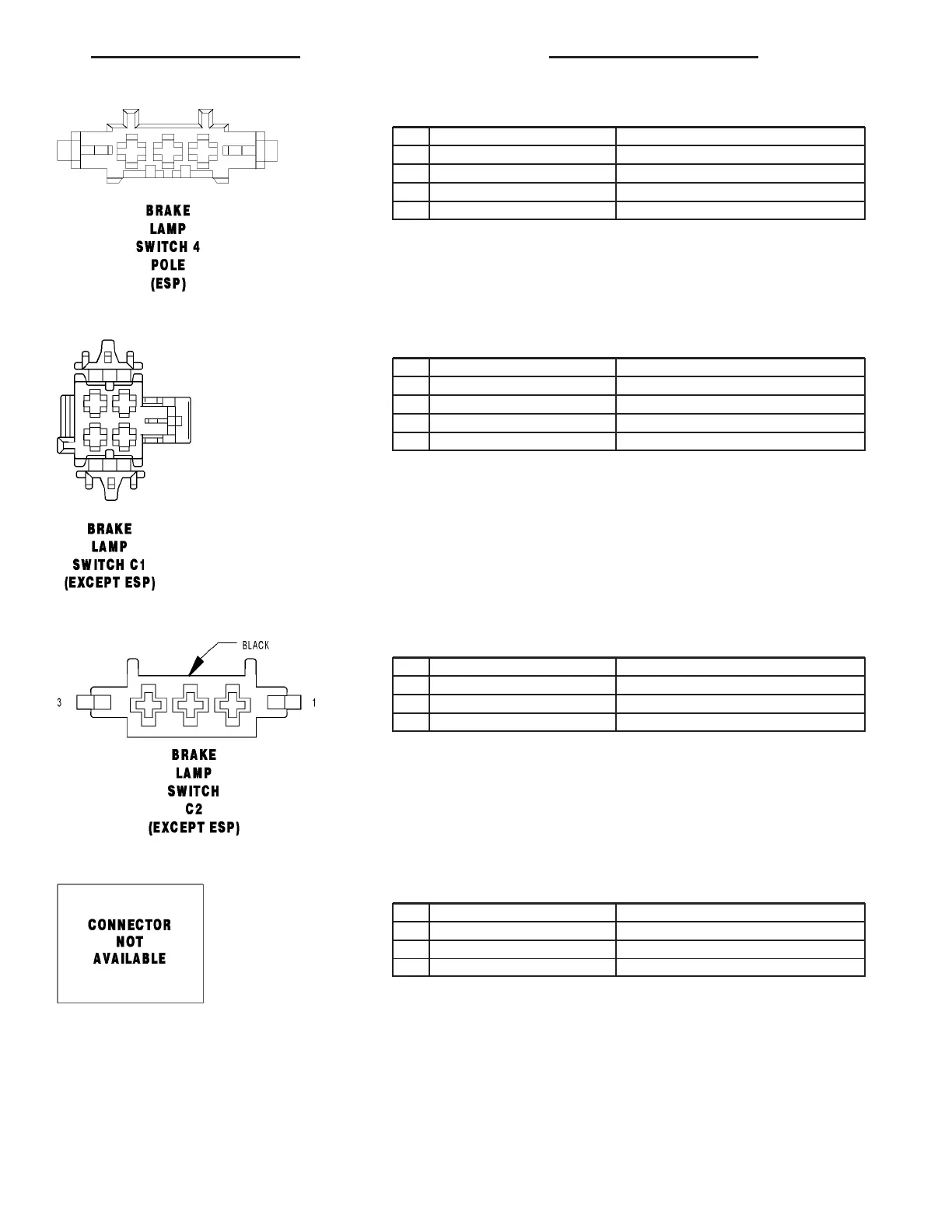

BRAKE LAMP SWITCH 4 POLE (ESP)
CAV CIRCUIT FUNCTION
1 16RD/BK FUSED IGNITION SWITCH OUTPUT (RUN-START)
2 20WT BRAKE SWITCH OUTPUT
3 16BK/BL/WT FUSED IGNITION SWITCH OUTPUT (RUN-START)
4 16BK/RD BRAKE LAMP SWITCH OUTPUT
BRAKE LAMP SWITCH C1 (EXCEPT ESP)
CAV CIRCUIT FUNCTION
1 20WT BRAKE SWITCH OUTPUT
2 16RD/BK FUSED IGNITION SWITCH OUTPUT (RUN-START)
3 20BK/BL/RD BRAKE LAMP SWITCH
4- -
BRAKE LAMP SWITCH C2 (EXCEPT ESP) - BLACK
CAV CIRCUIT FUNCTION
1 16BK/BL/WT FUSED IGNITION SWITCH OUTPUT (RUN-START)
2 16BK/RD BRAKE LAMP SWITCH OUTPUT
3- -
BRAKE PRESSURE SENSOR
CAV CIRCUIT FUNCTION
120BR SENSORGROUND
2 20WT/GY BRAKE PRESSURE SENSOR SIGNAL
3 20WT/RD 5 VOLT SUPPLY
