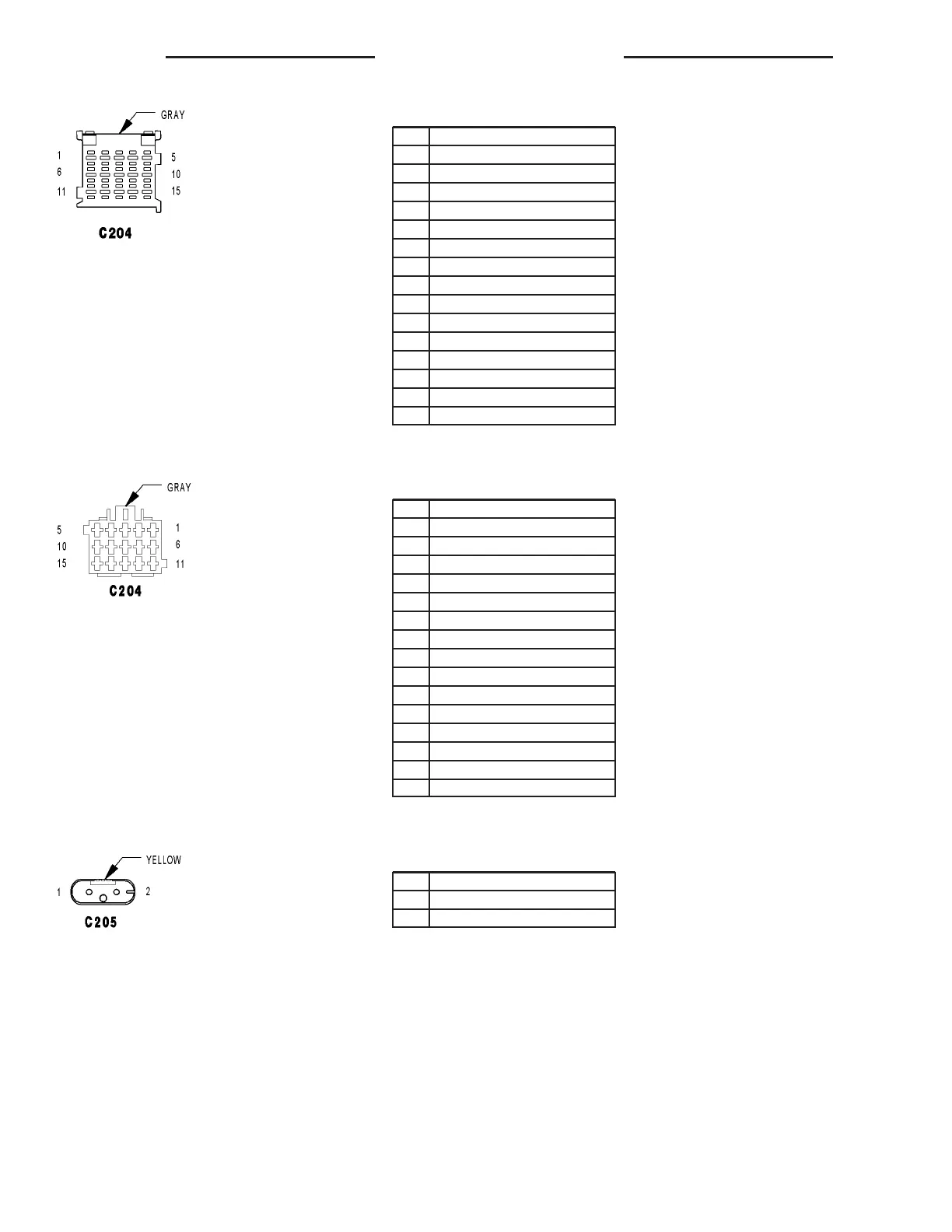

C204 - GRAY (DASH SIDE)
CAV CIRCUIT
1 18BK/RD
2 18BK/YL
3 20DG/WT
420DG
5 18DG/RD
6 18BR/VT
716BL
8 16BL/YL
9 16BL/DG
10 18BR/BL
11 20BR/RD
12 20RD/BL
13 16RD/BK
14 14BK/VT
15 16RD
C204 - GRAY (MAIN BODY SIDE)
CAV CIRCUIT
1 18BK/RD
2 18BK/YL
3 20DG/WT
420DG
5 18DG/RD
6 18BR/VT
716BL
8 16BL/YL
9 16BL/DG
10 18BR/BL
11 20BR/RD
12 20RD/BL
13 16RD/BK
14 14BK/VT
15 16RD
C205 - YELLOW (DASH SIDE)
CAV CIRCUIT
1 20BL/DG
2 20BR/DG
8W - 80 - 18 8W-80 CONNECTOR PIN-OUTS VA
