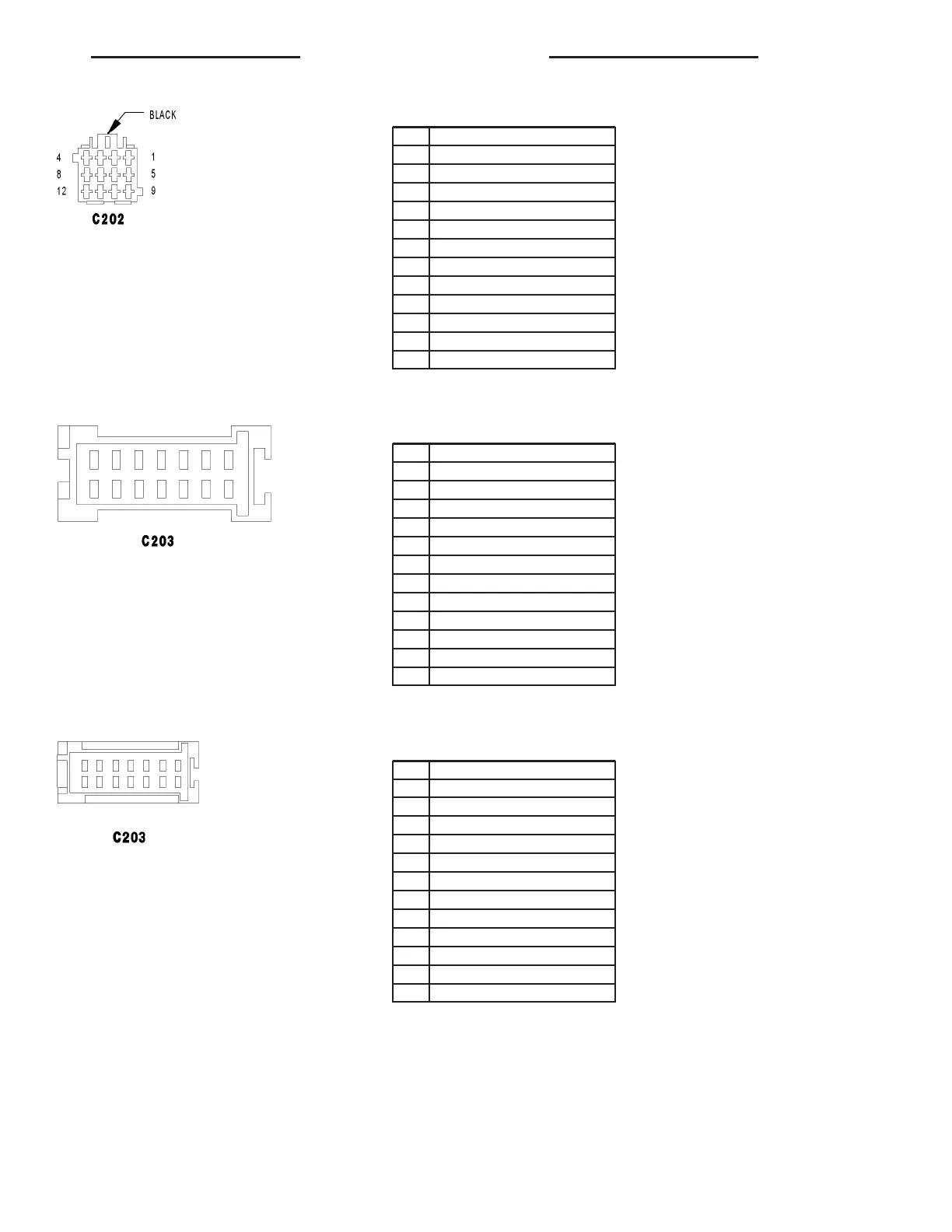

C202 - BLACK (MAIN BODY SIDE)
CAV CIRCUIT
1 16WT/RD
2 16WT/BL/RD
3 20BK/BL/RD
4 20BL/DG
5-
6 18BK/DG
7 20DG/WT
820DG
9-
10 -
11 20YL
12 -
C203 - (DASH SIDE)
CAV CIRCUIT
1 18GY/YL
2 18GY/BR
3 18GY/WT
4-
5-
6-
7-
8-
9-
10 18VT/DG
11 16RD
12 -
C203 - BLACK (MAIN BODY SIDE)
CAV CIRCUIT
1 18GY/YL
2 18GY/BR
3 18GY/WT
4-
5-
6-
7-
8-
9-
10 18VT/DG
11 16RD
12 -
VA 8W-80 CONNECTOR PIN-OUTS 8W - 80 - 17
