Dodge Sprinter 2006 - Page 1428

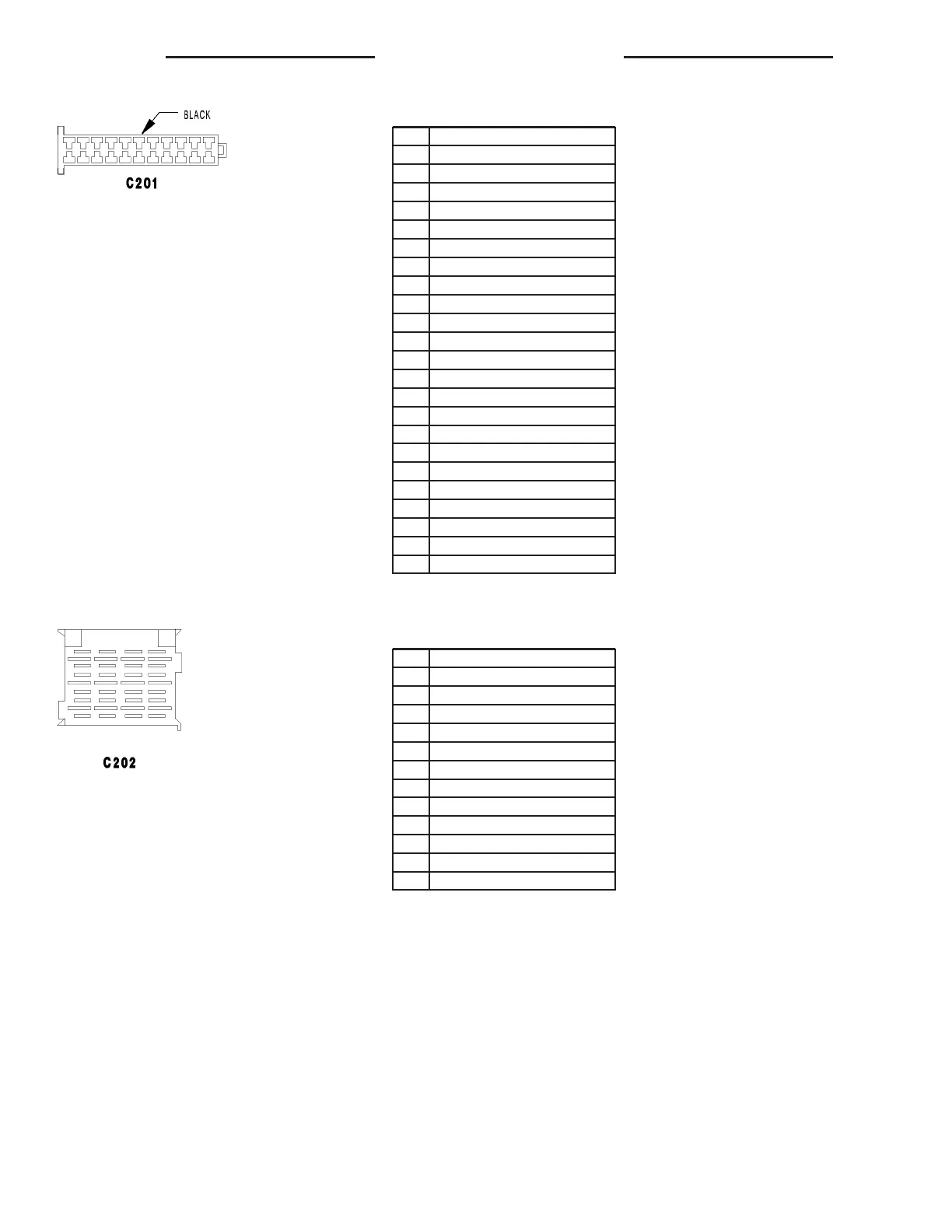

C201 - BLACK (MAIN BODY SIDE)
CAV CIRCUIT
1-
2 16GY/DG/RD
3 16RD/BL
4 16RD/YL/WT
4 20BL/VT
5 16VT/WT
6 20BL/RD/WT
7 16BK/RD
8 16RD/YL
9 16BK/RD
10 18BK/BL
11 16YL
12 -
13 16RD
14 -
15 18RD/BK
16 -
17 -
18 -
19 -
20 -
21 -
22 -
C202 - (DASH SIDE)
CAV CIRCUIT
1 16WT/RD
2 16WT/BL/RD
3 20BK/BL/RD
4 20BL/DG
5-
6 18BK/DG
7 20DG/WT
820DG
9-
10 -
11 20YL
12 -
8W - 80 - 16 8W-80 CONNECTOR PIN-OUTS VA
