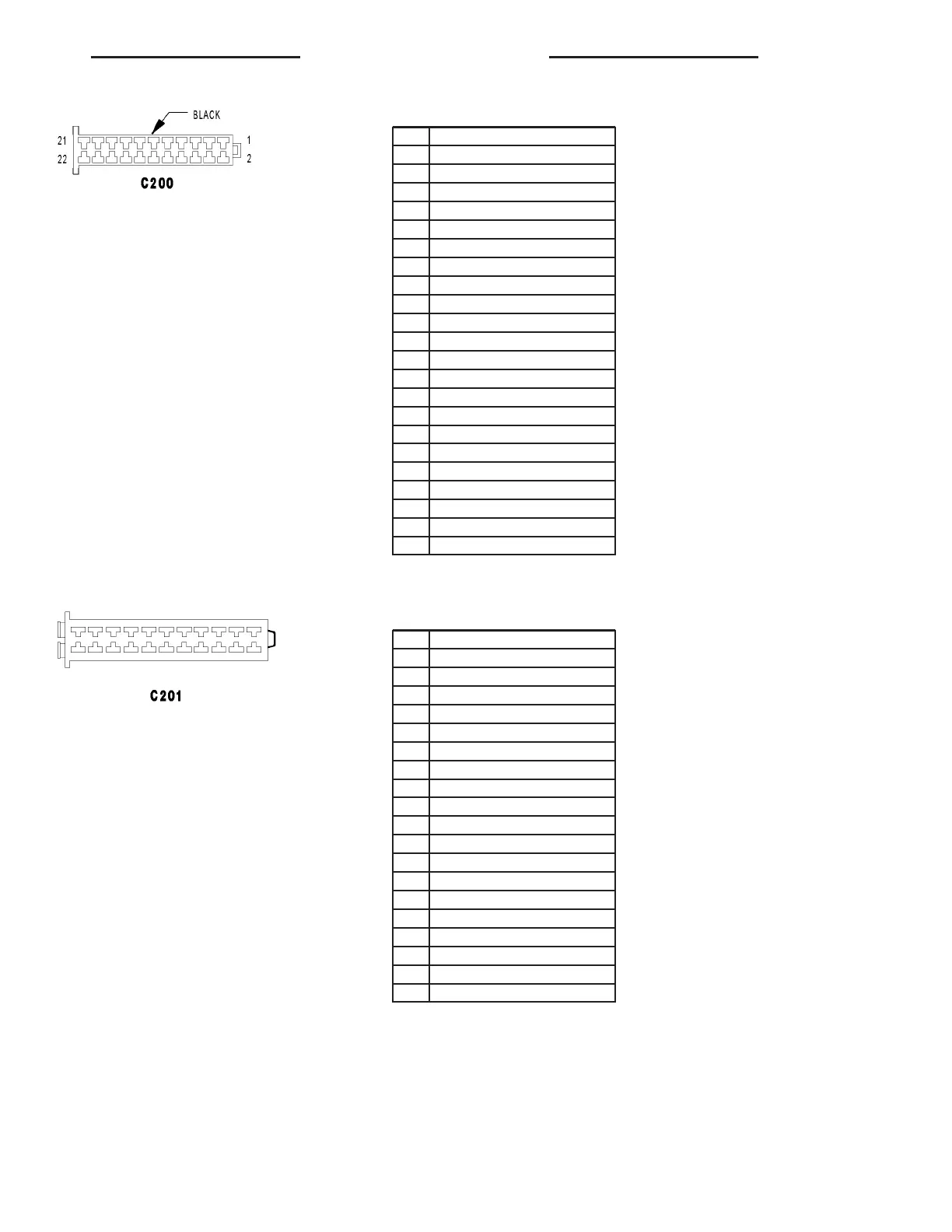

Dodge Sprinter 2006 - Page 1427

C200 - BLACK (MAIN BODY SIDE)
CAV CIRCUIT
116GY
2 16GY/DG
3 16BK/YL
4 16DG/BL/WT
5 16YL/BL
6 16BL/RD
7 16BK/RD
8 16WT/BK
9 16WT/DG
10 16WT/YL
11 16WT/RD
12 16BK/RD
13 18VT/YL
14 16BR/BK
15 16YL
16 16BR/WT
17 16GY/RD
18 16BK/YL/DG
19 16BK/YL
20 -
21 -
22 -
C201 - (DASH SIDE)
CAV CIRCUIT
1-
2 16GY/DG/RD
3 16RD/BL
4 20BL/VT
4 16RD/YL/WT
5 16VT/WT
6 20BL/RD/WT
7 16BK/RD
8 16RD/YL
9 18BK/RD
10 18BK/BL
11 16YL
12 -
13 16RD
14 -
15 18RD/BK
16 -
17 -
18 -
VA 8W-80 CONNECTOR PIN-OUTS 8W - 80 - 15
