(6) Pla ce in term ediat e pla te (3) on convert er h ous-
ing (2) and align.
NOTE: The intermediate plate can generally be used
several times. The plate must not be coated with
sealant
(7) In st all the holding clu tch B1 (5) (F ig. 51) onto
the converter h ousing and inter media te pla te.
In st alled position of clu tch B1 in relation to con vert er
housin g is specified by a plain dowel pin in clu tch B1
(arrow).
(8) In st all t he bolts to hold clutch B1 (5) (F ig. 51)
to th e converter housin g.
(9) Securely tigh ten multiple-disc holdin g clutch
B1 (5) on con vert er housin g (2) to 10 N·m (88.5
in.lbs.).
(10) Install new torqu e convert er hub sea l (1) (Fig.
52) in to th e oil pump using Seal In st aller 8902A.
(11) In st all new oil pu mp ou ter o-ring seal onto oil
pu mp (Fig. 52).

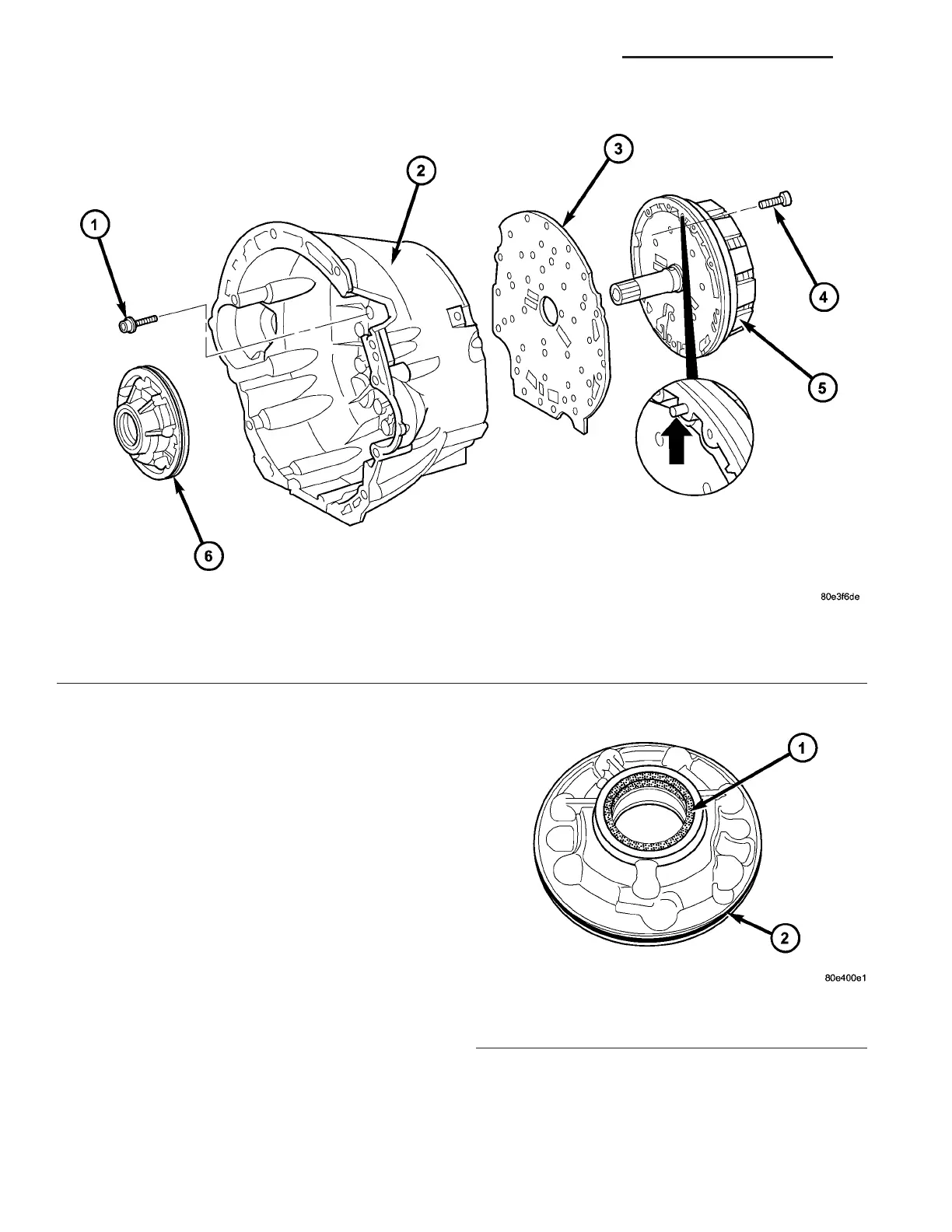

Fig. 51 Install Holding Clutch B1 and Oil Pump
1 - BOLTS - M6X32 4 - BOLTS - M8X35
2 - CONVERTER HOUSING 5 - HOLDING CLUTCH B1
3 - INTERMEDIATE PLATE 6 - OIL PUMP
Fig. 52 Install New Oil Pump Seals
1 - INNER OIL SEAL
2 - OUTER OIL SEAL
21 - 54 AUTOMATIC TRANSMISSION NAG1 - SERVICE INFORMATION VA
