(13) Using grease, insert sealin g rin gs (7) (Fig. 53)
in the groove so th at the joint rem ain s t ogeth er.
(14) Install t he K1 (1) clutch on to t he B1 clut ch
(Fig. 53).
(15) Install input sha ft with clutch K2 (6) and
front gear set (1) (F ig. 53).
(16) Install fron t wa sh er (5) and thru st needle
bearing (4) (Fig. 53).
(17) Install out pu t shaft with center and rear gear
set and clutch K3 (3) (Fig. 53).

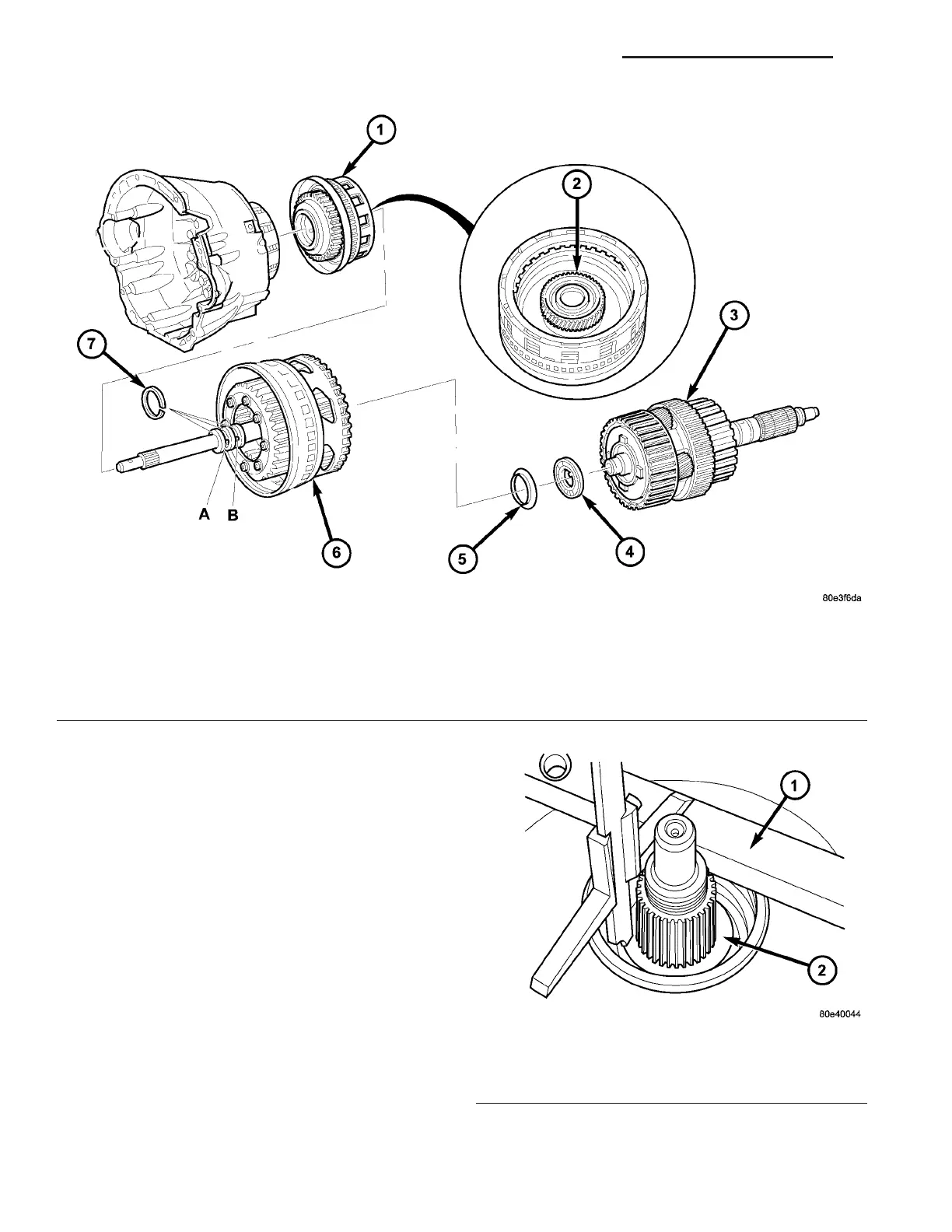

Fig. 53 Install K1, K2, and K3 Clutches
1 - DRIVING CLUTCH K1 5 - THRUST WASHER
2 - SUN GEAR OF FRONT PLANETARY GEAR SET 6 - FRONT PLANETARY GEAR SET, DRIVING CLUTCH K2, AND
INPUT SHAFT
3 - DRIVING CLUTCH K3, OUTPUT SHAFT, AND CENTER AND
REAR PLANETARY GEAR SETS
7 - SEALING RINGS
4 - THRUST NEEDLE BEARING
Fig. 54 Measure From Transmission Housing to
Park Gear
1 - GAUGE BAR 6311
2 - PARK GEAR
21 - 56 AUTOMATIC TRANSMISSION NAG1 - SERVICE INFORMATION VA
