(21) Install the oil drain plug (2) (F ig. 78) wit h a
new sea l into the transmission oil pa n. Tigh ten the
dr ain plu g to 20 N·m (14.5 ft.lbs.).
(22) Lower vehicle and fill tr ansmission with cor-
rect aut omatic tran sm ission fluid (Refer to 21 -
TRANSMISSION/AUTOMATIC - NAG1/FLUID AND
FILTER - STANDARD PROCEDURE).
(23) Road test the vehicle a nd ver ify t he repair.

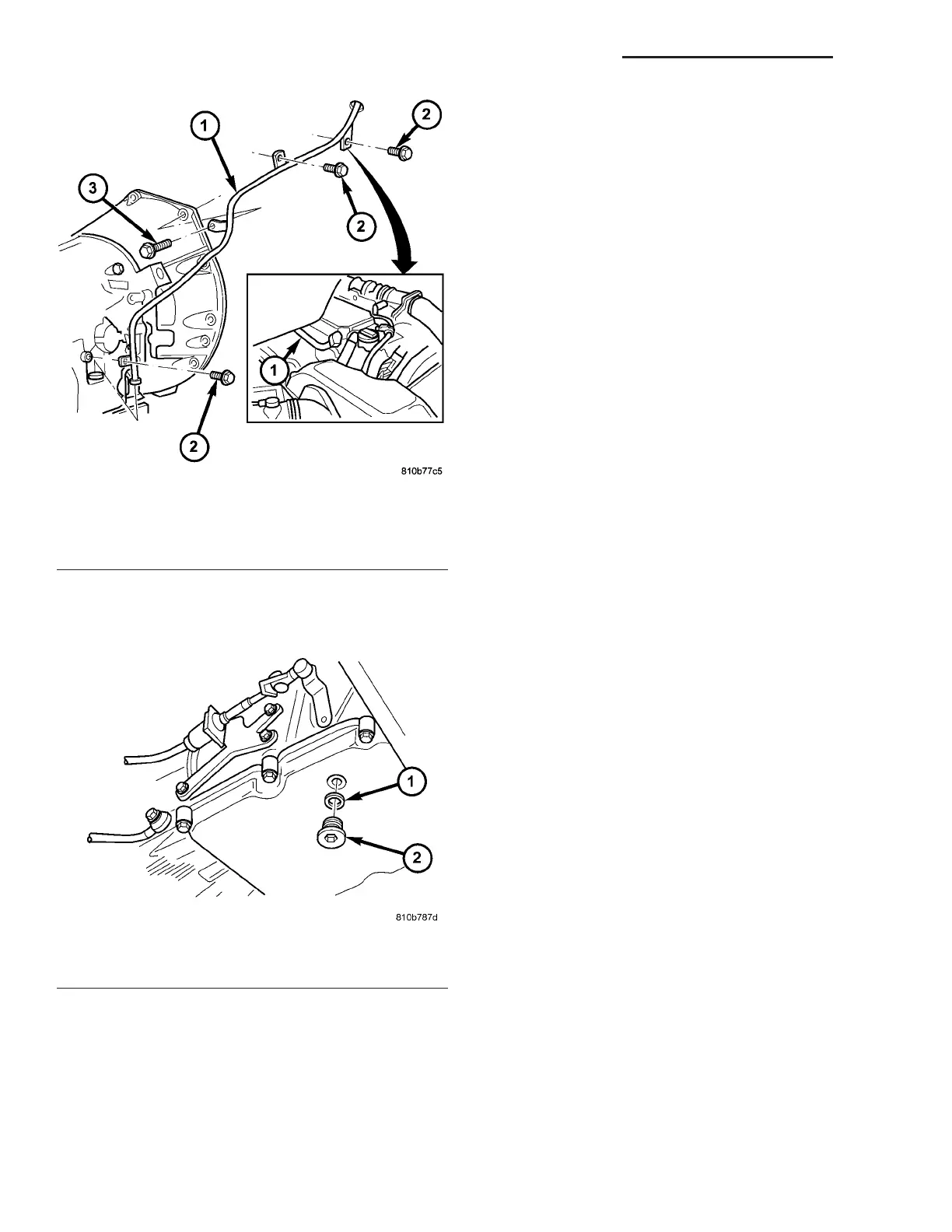

Fig. 77 Fill Tube
1 - FILL TUBE
2 - BOLTS TO CYLINDER HEAD AND TRANSMISSION HOUS-
ING
3 - BOLT TO TRANSMISSION FLANGE
Fig. 78 Oil Drain Plug
1 - SEAL
2 - DRAIN PLUG
21 - 64 AUTOMATIC TRANSMISSION NAG1 - SERVICE INFORMATION VA
