ASSEMBLY
(1) In st all pist on (6) (Fig. 83) in t he outer m ulti-
ple-disc car rier (1). Check sealing rings (4 and 5),
repla ce if necessa ry. The r ounded off edges of t he
sealing rin gs must poin t outwards.
(2) In sert disc spring (7) (Fig. 83). Insert disc
spring with the curvat ure t owards the piston .
(3) In sert sprin g plat e (8). In ser t spring plate with
the curvatu re towar ds the sun gear. Ch eck sea lin g
ring (9), replace if necessa ry.

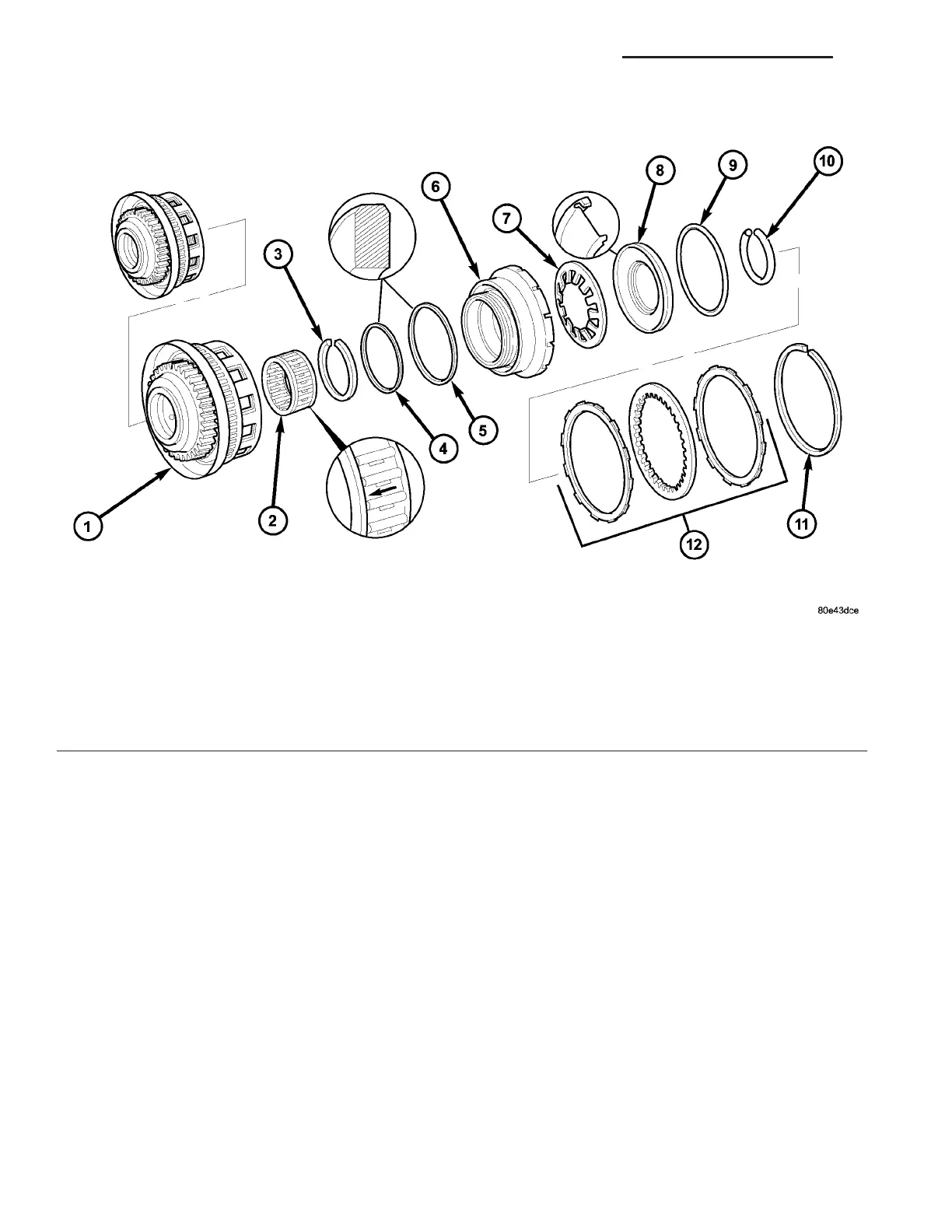

Fig. 83 Input Clutch K1 Components
1 - K1 OUTER DISC CARRIER 7 - DISC SPRING
2 - FREEWHEELING CLUTCH F1 8 - SPRING PLATE
3 - SNAP-RING 9 - SPRING PLATE SEALING RING
4 - OUTER DISC CARRIER SEALING RING 10 - SNAP-RING
5 - PISTON SEALING RING 11 - SNAP-RING
6 - PISTON 12 - MULTIPLE DISC PACK - REFER TO TEXT FOR CORRECT
ASSEMBLY ORDER
21 - 94 AUTOMATIC TRANSMISSION NAG1 - SERVICE INFORMATION VA
