(3) Pla ce Mu lti-use Spr ing Compressor 8900 (2)
(Fig. 82) on the spring plat e and com pr ess the spring
until the snap-ring (1) is exposed.
(4) Remove snap-r ing (1).
(5) Take out disc spring (7) and rem ove pist on (6)
by carefu lly blowin g compressed air in to the drilled
oil feed passage.
(6) Remove snap-rin g (3) and take ou t fron t free-
wheeling clutch F1 (2). Take care when r emoving th e
F1 clut ch t o prevent the clutch spr ags from falling
out. If t his occurs, the clut ch must be r eplaced.

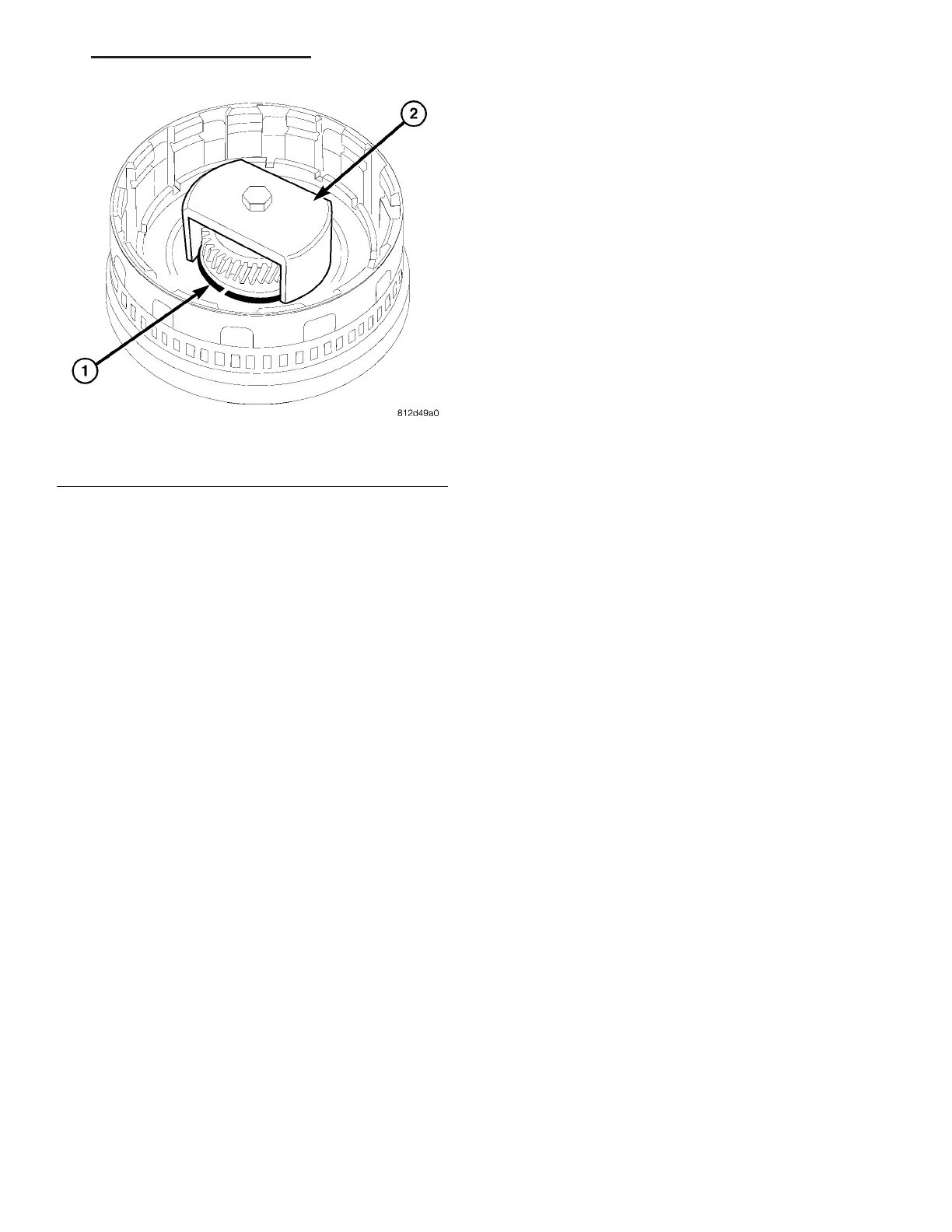

Fig. 82 Compress the Disc Spring
1 - SNAP-RING
2 - MULTI-USE SPRING COMPRESSOR 8900
VA AUTOMATIC TRANSMISSION NAG1 - SERVICE INFORMATION 21 - 93
