INPUT CLUTCH K1
DISASSEMBLY
(1) Remove snap-ring (11) (Fig. 81) from outer
multiple-disc ca rrier (6).
(2) Take mu ltiple-disc pack (12) out of outer mul-
tiple-disc carrier (6). Note wh ich clutch disc is
removed just pr ior t o the spr ing plate (8) for re-as-
sembly. If the clu tch discs are re-u sed, th is disc m ust
be returned to its original position on top of the
sprin g plate.

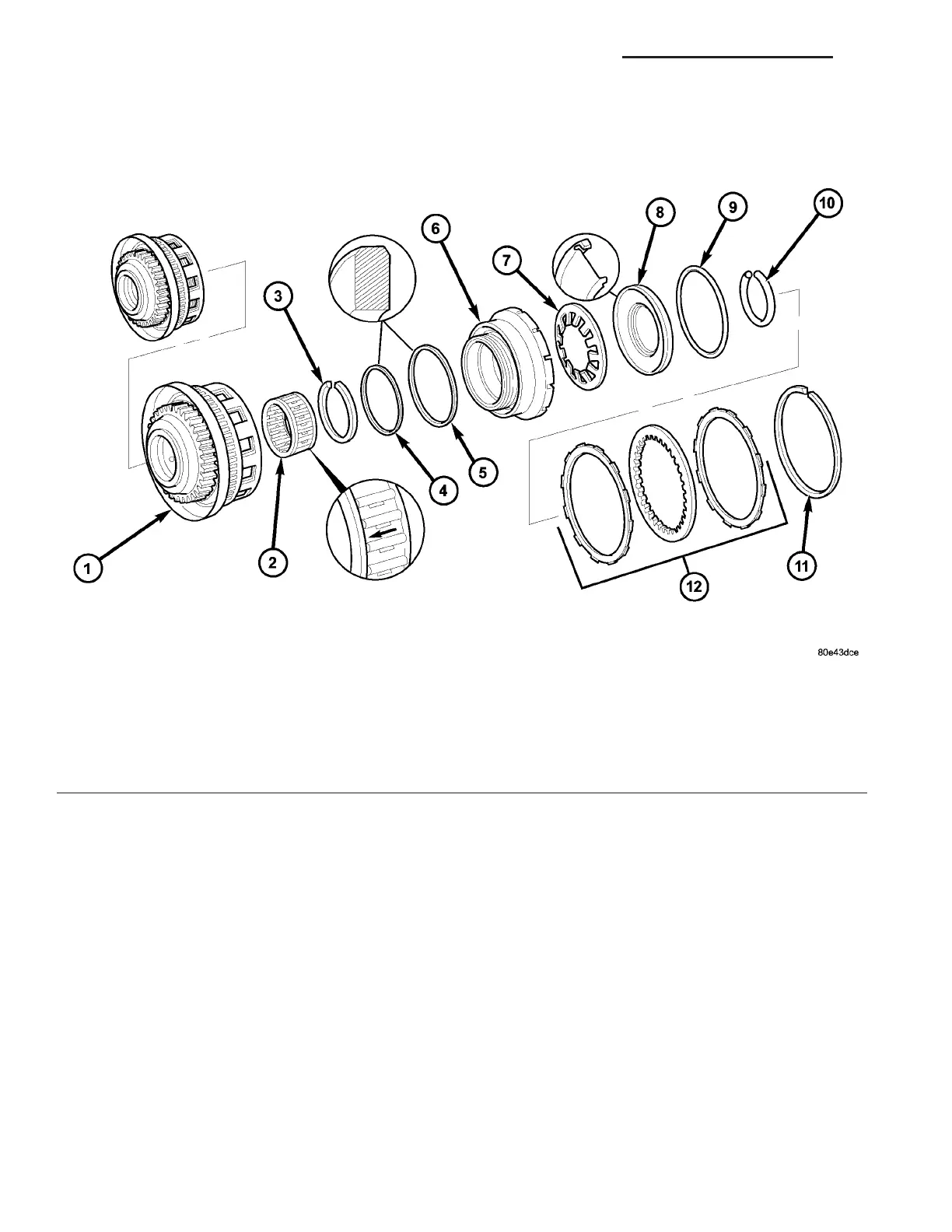

Fig. 81 Input Clutch K1 Components
1 - K1 OUTER DISC CARRIER 7 - DISC SPRING
2 - FREEWHEELING CLUTCH F1 8 - SPRING PLATE
3 - SNAP-RING 9 - SPRING PLATE SEALING RING
4 - OUTER DISC CARRIER SEALING RING 10 - SNAP-RING
5 - PISTON SEALING RING 11 - SNAP-RING
6 - PISTON 12 - MULTIPLE DISC PACK - REFER TO TEXT FOR CORRECT
ASSEMBLY ORDER
21 - 92 AUTOMATIC TRANSMISSION NAG1 - SERVICE INFORMATION VA
