INPUT CLUTCH K2
DISASSEMBLY
(1) Remove snap-ring (19) fr om the K1 inner m ul-
tiple-disc carrier with integra ted front gear set (2)
and take off hollow gear (18).
(2) Remove input shaft with clu tch K2 (5) (Fig.
88).
(3) Remove needle th rust bea ring (3).
(4) Remove sn ap-ring (17) (Fig. 88) from K2 outer
multiple-disc ca rrier.
(5) Take out multiple-disc pa ck (16). Note which
clutch disc is removed just prior t o the disc spring
(14) for re-assembly. If the clut ch discs ar e re-u sed,
this disc must be r eturned to its origin al position on
top of th e disc spring.
(6) Take out disc spring (14) (Fig. 88).

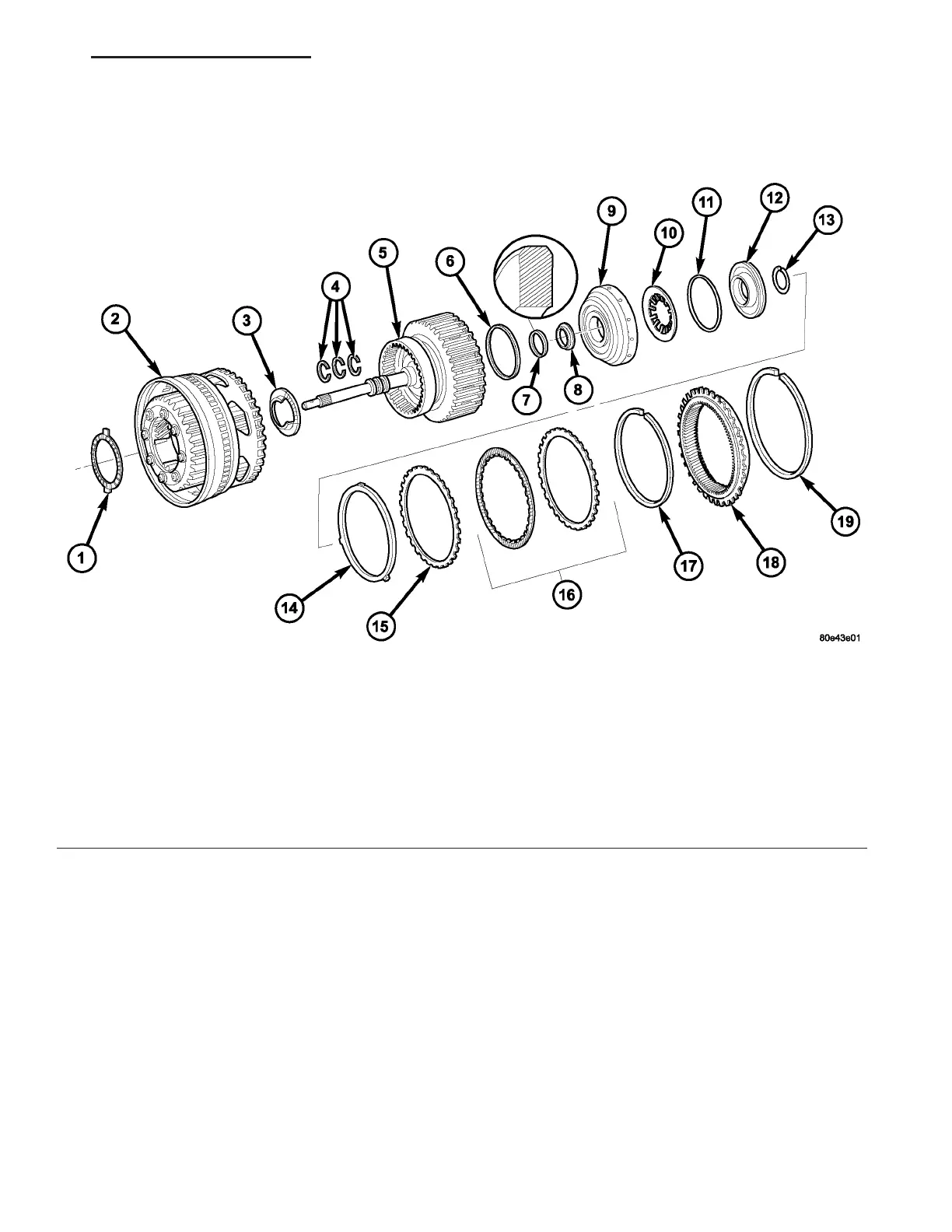

Fig. 88 Input Clutch K2 Components
1 - NEEDLE ROLLER BEARING 11 - SPRING RETAINER SEALING - O-RING
2 - K1 INNER DISC CARRIER WITH INTEGRATED FRONT GEAR
SET
12 - SPRING RETAINER
3 - THRUST BEARING 13 - SNAP-RING
4 - TORLON SEAL RINGS 14 - DISC SPRING
5 - INPUT SHAFT AND K2 CLUTCH 15 - EXTERNALLY TOOTHED PLATE - 1.8 MM (0.071 IN.)
6 - PISTON OUTER SEAL RING - O-RING 16 - MULTIPLE DISC PACK
7 - PISTON INNER SEAL RING 17 - SNAP-RING
8 - THRUST WASHER 18 - HOLLOW GEAR
9 - PISTON 19 - SNAP-RING
10 - DISC SPRING
VA AUTOMATIC TRANSMISSION NAG1 - SERVICE INFORMATION 21 - 97
