ASSEMBLY
(1) In st all piston (9) (Fig. 90) in ou ter multiple-
disc car rier. Inspect seals (6 an d 7), replace if neces-
sa ry. The r ounded edges of th e i n ner piston sea l (7)
must poin t to the outside.
(2) In sert disk sprin g (10) an d sprin g r etainer (12).
In sert disk sprin g (10) with curved side pointing
towar d sprin g ret ainer (12). Inspect sea l (11) (Fig.
90), replace if necessary.

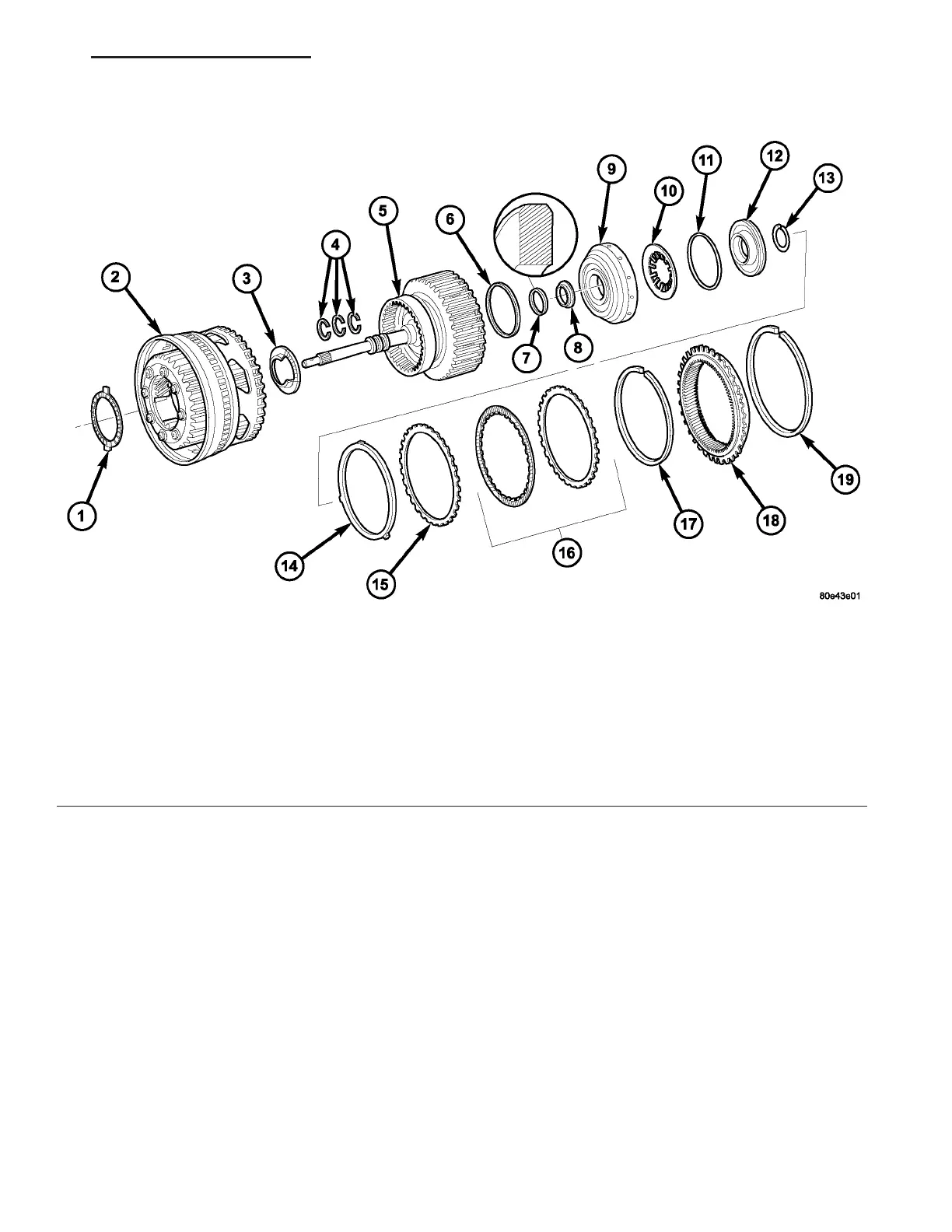

Fig. 90 Input Clutch K2 Components
1 - NEEDLE ROLLER BEARING 11 - SPRING RETAINER SEALING - O-RING
2 - K1 INNER DISC CARRIER WITH INTEGRATED FRONT GEAR
SET
12 - SPRING RETAINER
3 - THRUST BEARING 13 - SNAP-RING
4 - TORLON SEAL RINGS 14 - DISC SPRING
5 - INPUT SHAFT AND K2 CLUTCH 15 - EXTERNALLY TOOTHED PLATE - 1.8 MM (0.071 IN.)
6 - PISTON OUTER SEAL RING - O-RING 16 - MULTIPLE DISC PACK
7 - PISTON INNER SEAL RING 17 - SNAP-RING
8 - THRUST WASHER 18 - HOLLOW GEAR
9 - PISTON 19 - SNAP-RING
10 - DISC SPRING
VA AUTOMATIC TRANSMISSION NAG1 - SERVICE INFORMATION 21 - 99
