(7) Detach oil pan (5) (Fig. 125).
(8) Remove oil filter (4).
(9) Unscr ew Torx socket bolts (3) and remove elec-
trohydrau lic con trol module (2).
DISASSEMBLY
(1) Remove elect rohydr aulic un it from t he vehicle.
(Refer to 21 - TRANSMISSION/AUTOMATIC
TRANSMISSION - NAG1/E LECTROHYDRAULIC
UNIT - REMOVAL)
(2) Remove solen oid caps (1, 2) (Fig. 126).
(3) Unscr ew Torx! socket bolts (3, 4) (Fig. 126).
NOTE: Pay attention to the different lengths of the
Torx" socket bolts.
(4) Remove lea f sprin gs (5).
(5) Withdraw solen oid va lves (6 - 11) from shift
plate (13).
NOTE: Check O-rings on solenoid valves for dam-
age and replace if necessary.
(6) Bend away r etaining lu g on stiffening rib on
transmission oil t empera ture sensor.
(7) Remove electr ohydra ulic control module (12)
from the shift plate (13).

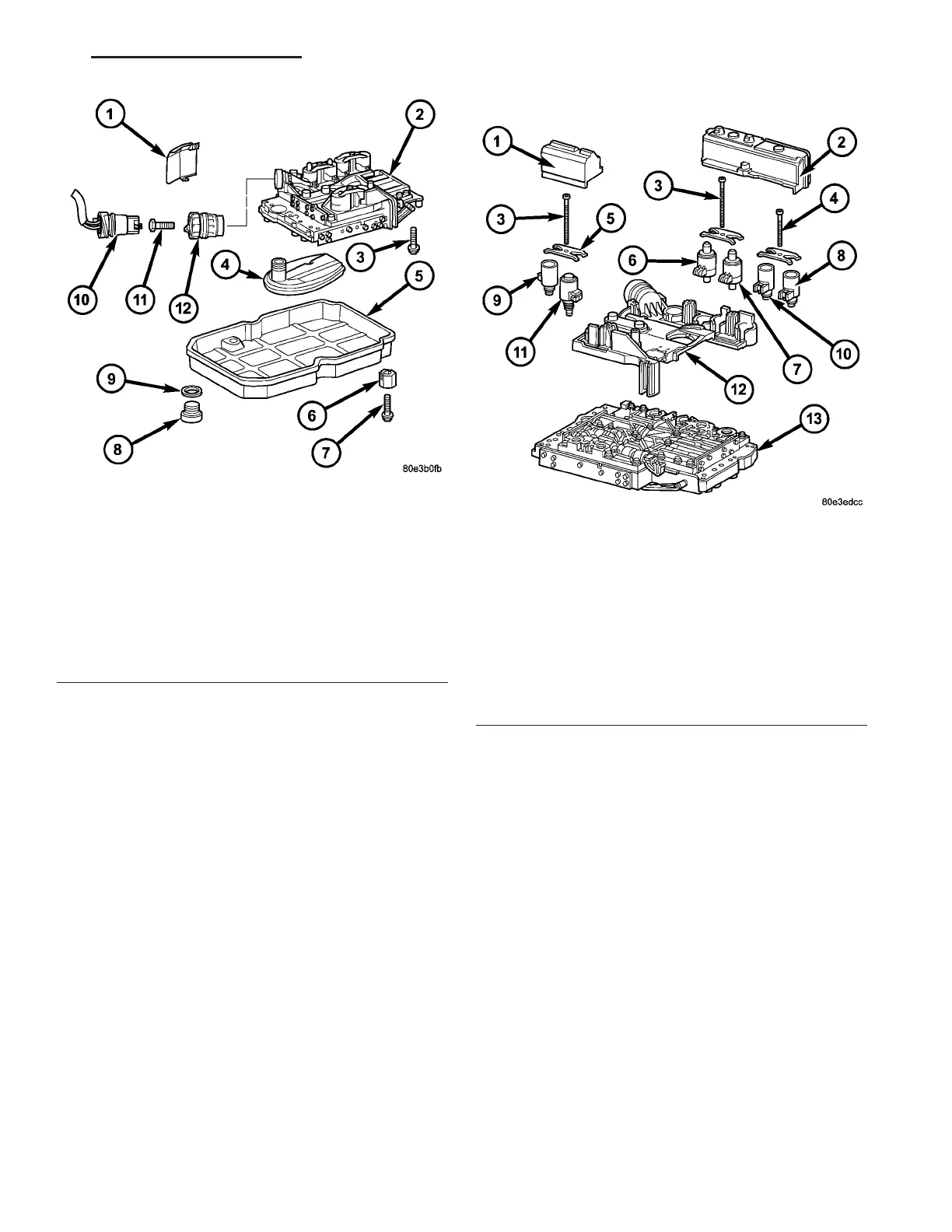

Fig. 125 Remove Electrohydraulic Unit
1 - HEAT SHIELD
2 - ELECTROHYDRAULIC UNIT
3 - BOLT
4 - OIL FILTER
5 - OIL PAN
6 - CLAMPING ELEMENT
7 - BOLT
8 - DRAIN PLUG
9 - DRAIN PLUG GASKET
10 - 13-PIN PLUG CONNECTOR
11 - BOLT
12 - GUIDE BUSHING
Fig. 126 Electrical Unit Components
1 - SOLENOID CAP
2 - SOLENOID CAP
3 - BOLT - M6X32
4 - BOLT - M6X30
5 - LEAF SPRING
6 - MODULATING PRESSURE REGULATING SOLENOID VALVE
7 - SHIFT PRESSURE REGULATING SOLENOID
8 - 3-4 SHIFT SOLENOID
9 - TORQUE CONVERTER LOCK-UP SOLENOID
10 - 1-2/4-5 SHIFT SOLENOID
11 - 2-3 SHIFT SOLENOID
12 - ELECTRICHYDRAULIC CONTROL MODULE
13 - SHIFT PLATE
