(8) Note th e loca tions of the m ajor sh ift valve
group com pon ents for assem bly reference. (Fig. 127)
A - Oper ating and Lubr icating Pressur e Regulating
valves a nd 2-3 Overlap va lve
B - 1-2/4-5 Shift Grou p an d Shift, Shift Va lve, a nd
Regu la t in g Va lve P r ess u r e Regu la t in g Va lves
C - 3-4 Shift Group
D - 2-3 Shift Group, TCC Lock-up, and B2 Regu-
lating Valve s
NOTE: Pay great attention to cleanliness for all
work on the shift plate. Fluffy cloths must not be
used. Leather cloths are particularly good. After dis-
mantling, all parts must be washed and blown out
with compressed-air, noting that parts may be
blown away.
(9) Unbolt leaf spring (5) (Fig. 128).
(10) Un screw Torx! bolts (1) (Fig. 128).
(11) Remove valve h ousing (2) from valve body (4)
(Fig. 128).
(12) Remove sealing plate (3).

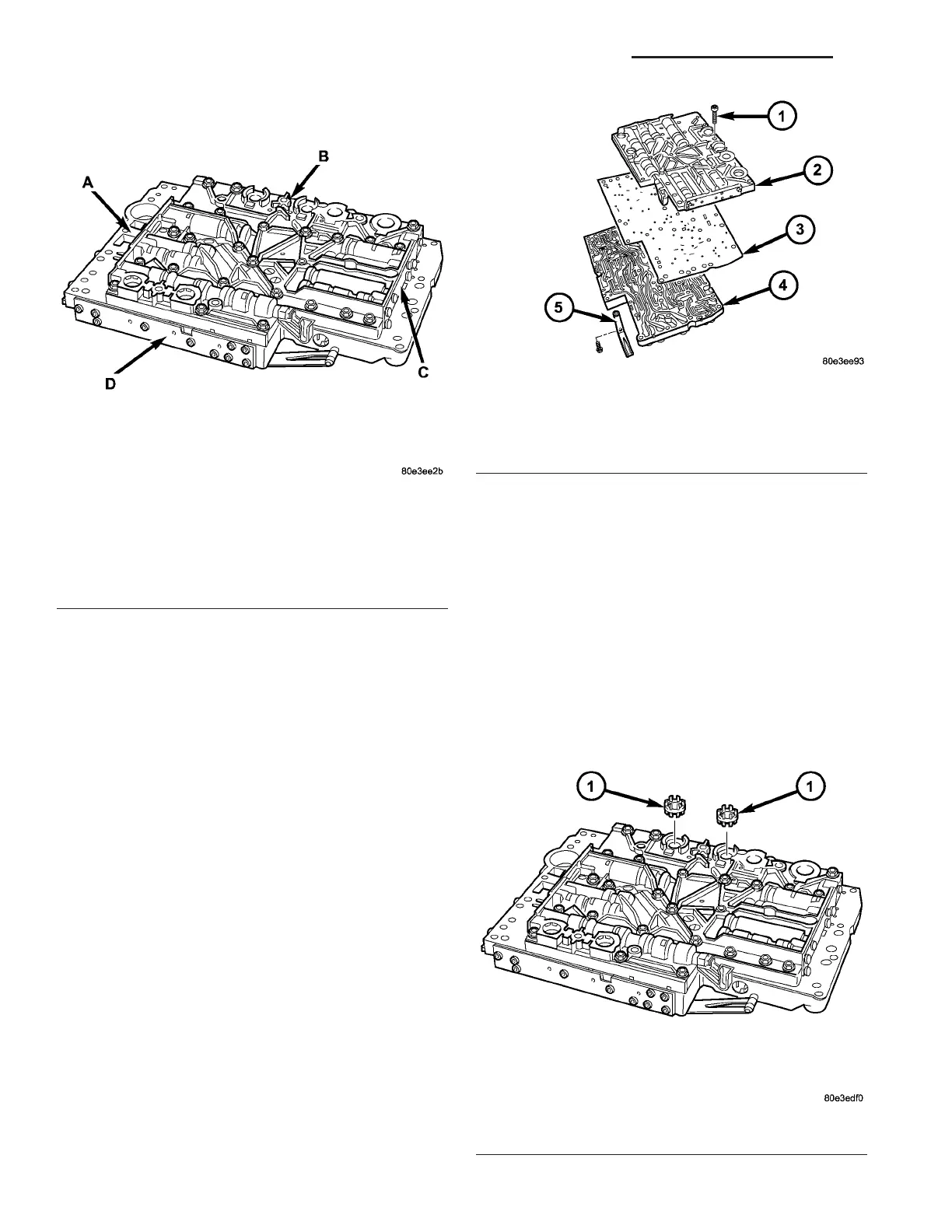

Fig. 127 Shift Valve Group Locations
A - OPERATING AND LUBRICATING PRESSURE REGULATING
VALVES AND 2-3 OVERLAP VALVE
B - 1-2/4-5 SHIFT GROUP AND SHIFT, SHIFT VALVE, AND REG-
ULATING VALVE PRESSURE REGULATING VALVES
C - 3-4 SHIFT GROUP
D - 2-3 SHIFT GROUP, TCC LOCK-UP AND B2 REGULATING
VALVES
Fig. 128 Shift Plate Components
1 - BOLTS - 29
2 - VALVE HOUSING
3 - SEALING PLATE
4 - VALVE BODY
5 - LEAF SPRING
Fig. 129 Solenoid Valve Strainer Locations
1 - SOLENOID VALVE STRAINERS
21 - 122 AUTOMATIC TRANSMISSION NAG1 - SERVICE INFORMATION VA
