DISASSEMBLY
(1) Remove reta ining ring (5) (Fig. 156) from hol-
low sha ft (1).
(2) Remove rear sun gea r (4) with t he K3 inter-
nally toothed disk carrier and rear fr eewheelin g
clutch F2 (3).
(3) Remove snap-r ing (2) (Fig. 156) for freewheel.
(4) Press freewheelin g clu tch (3) out of sun gear.
(5) Check O-rin gs (6), replace if necessary.

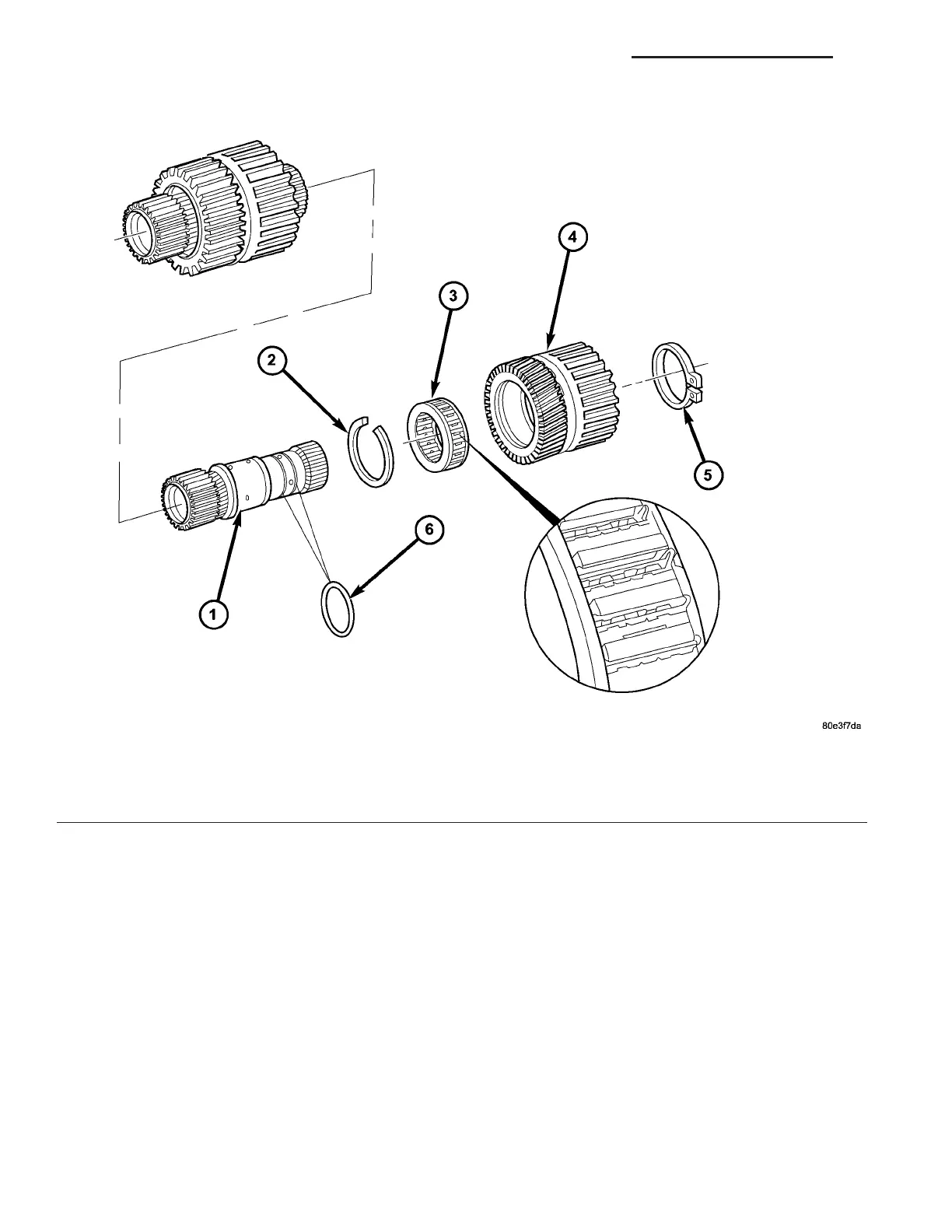

Fig. 156 Freewheeling Clutch F2
1 - HOLLOW SHAFT 4 - K3 INNER DISC CARRIER AND REAR PLANETARY SUN
GEAR
2 - F2 CLUTCH SNAP-RING 5 - RETAINING RING
3 - FREEWHEELING CLUTCH F2 6 - O-RINGS
