SHIFT PRESSURE CONTROL SOLENOID VALVE
The sh ift pressure regulating solenoid valve (1)
(Fig. 236) assign s a proportiona l pressure to the cur-
rent wh ich is contr olled by th e TCM accordin g to t he
load.
TEMPERATURE SENSOR /
PARK - N EU T RAL CON TACT
DESCRI PT I ON
PARK / NEUTRAL CONTACT
The park/neutral contact (4) (Fig. 237) is located in
the shell of the electric cont rol u nit an d is fixed to
the con du ctor tra cks.
It s purpose is t o recognize selector va lve an d selec-
tor lever posit ions “P” an d “N”. The par k/neutr al con-
tact consist s of:
• the plunger (2).
• the per manent ma gnet (3).
• the dry-reed con tact (4).
TRANSMISSION TEMPERATURE SENSOR

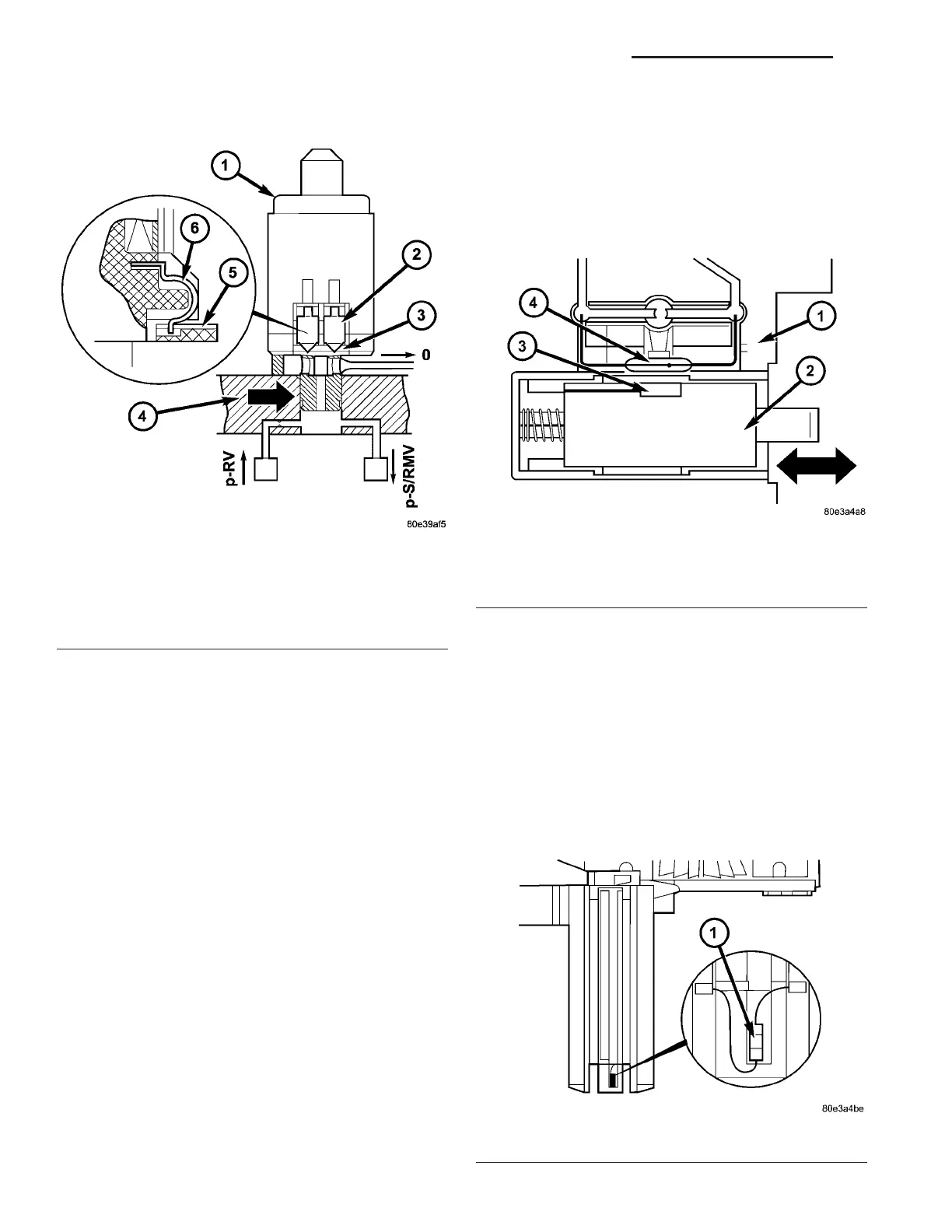

Fig. 236 Shift Pressure Control Solenoid Valve
1 - SHIFT PRESSURE CONTROL SOLENOID VALVE
2 - CONTACT SPRING
3 - CONDUCTOR TRACK
4 - VALVE HOUSING SHIFT PLATE
5 - CONDUCTOR TRACK
6 - CONTACT SPRING
Fig. 237 Park/Neutral Contact
1 - SHELL OF ELECTRIC CONTROL MODULE
2 - PLUNGER
3 - PERMANENT MAGNET
4 - DRY-REED CONTACT
Fig. 238 Transmission Temperature Sensor
1 - TRANSMISSION TEMPERATURE SENSOR
