DISASSEMBLY
(1) Remove door. (Refer t o 23 - BODY/DOORS -
SLIDING/RE AR LATCH STRIKER - REMOVAL)
(2) Remove inside door handle a ctua tor (7). (Refer
to 23 - BODY/DOORS - SLIDING/INSIDE HANDLE
ACTUATOR - REMOVAL)
(3) Remove cent er roller arm cover (23). (Fig. 16)
(4) Remove trim panel (24). (Refer to 23 - BODY/
DOORS - SLIDING/TRIM PANEL - REMOVAL)
(5) Remove lock knob (27).
(6) Disconn ect lock rod (25) an d r emove.
(7) Remove rear latch (22). (Refer t o 23 - BODY/
DOORS - SLIDING/REAR LATCH - REMOVAL)
(8) Remove lat ch/lock cont rol (14). (Refer to 23 -
BODY/DOORS - SLIDING/LATCH / LOCK CON-
TROL - REMOVAL)
(9) Remove exterior h andle (10). (Refer to 23 -
BODY/DOORS - SLIDING/EXTE RIOR H ANDLE -
REMOVAL)
(10) Remove center roller arm (20). (Refer to 23 -
BODY/DOORS - SLIDING/LOWER ROLLER ARM -
REMOVAL)
(11) Remove stabilizer wedges (6). (Refer to 23 -
BODY/DOORS - SLIDING/STABILIZE R -
REMOVAL)
(12) Remove upper r oller arm (2). (Refer to 23 -
BODY/DOORS - SLIDING/UPP ER ROLLER -
REMOVAL)
(13) Remove bolts (28) and r emove crash r einfor ce-
ment (29).

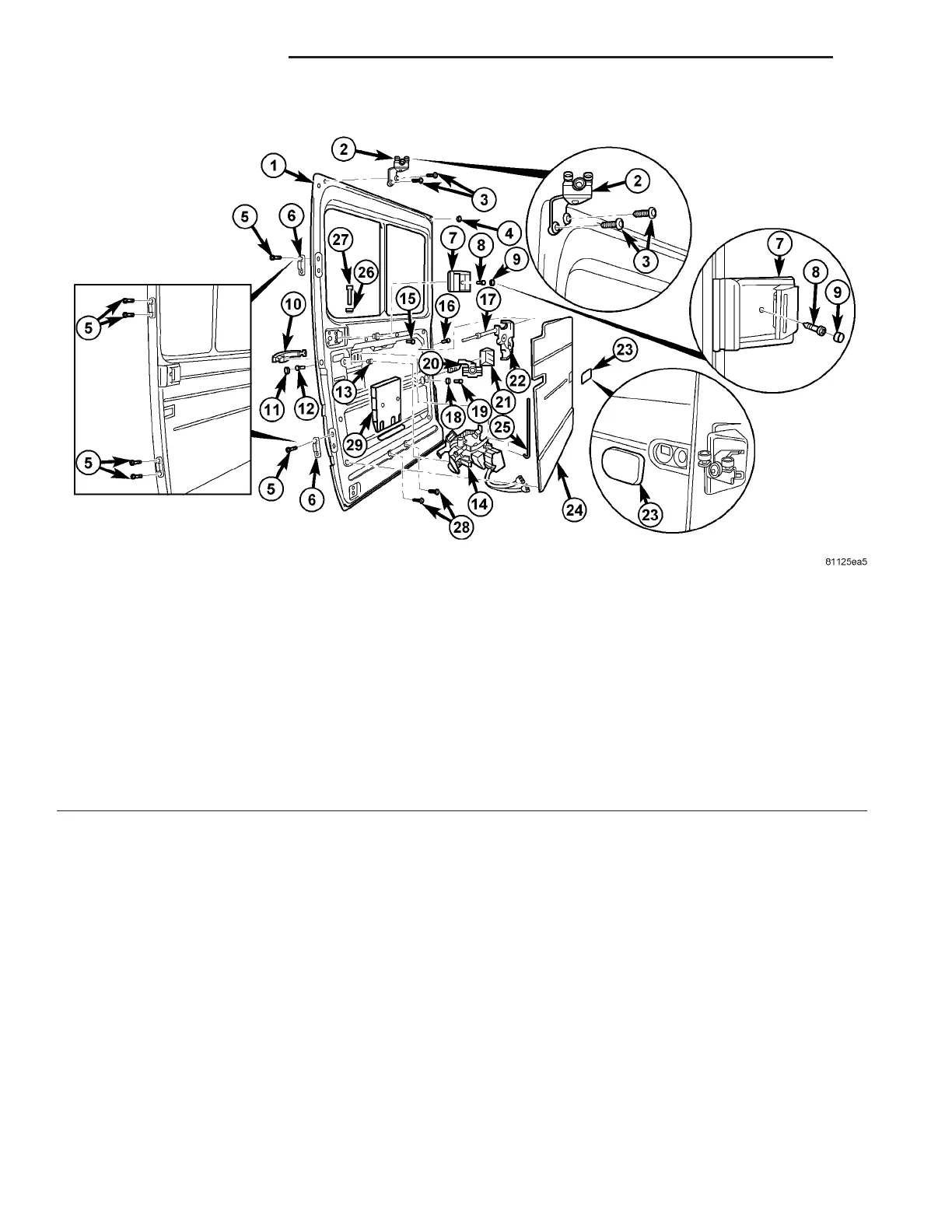

Fig. 16 SLIDING DOOR ASSEMBLY
1 - SLIDING DOOR 16 - BOLT
2 - UPPER ROLLER ARM 17 - RELEASE CABLE
3 - BOLTS (2) 18 - WASHER
4 - TRIM PLUG 19 - BOLT
5 - BOLTS (2) 20 - CENTER ROLLER ARM
6 - STABILIZER PIN 21 - RUBBER COVER
7 - INSIDE HANDLE ACTUATOR 22 - REAR LATCH
8 - SCREWS 23 - COVER
9 - TRIM PLUG 24 - TRIM PANEL
10 - EXTERIOR HANDLE 25 - CONNECTOR ROD
11 - TRIM PLUG 26 - GROMMET
12 - BOLT (1) 27 - LOCK KNOB
13 - NUT 28 - SCREWS
14 - LATCH/LOCK CONTROL 29 - CRASH REINFORCEMENT
15 - BOLT
