ASSEMBLY
(1) In st all the crash reinforcem ent (29). (F ig. 17)
(2) In st all the bolts (28) an d tighten to 21 N·m (15
ft. lbs.).
(3) In st all upper roller arm (2). (Refer to 23 -
BODY/DOORS - SLIDING/UPP ER ROLLER -
INSTALLATION)
(4) In st all stabilizer wedges (6). (Refer to 23 -
BODY/DOORS - SLIDING/STABILIZER - INSTAL-
LATION )
(5) In st all cent er roller a rm (20). (Refer to 23 -
BODY/DOORS - SLIDING/LOWER ROLLER ARM -
INSTALLATION)
(6) In st all ext erior handle (10). (Refer to 23 -
BODY/DOORS - SLIDING/EXTE RIOR H ANDLE -
INSTALLATION)
(7) In st all t he latch/lock cont rol (14). (Refer to 23 -
BODY/DOORS - SLIDING/LATCH / LOCK CON-
TROL - INSTALLATION)
(8) In st all the rear la tch (22). (Refer to 23 - BODY/
DOORS - SLIDING/REAR LATCH - INSTALLA-
TION )
(9) In st all lock r od (25) and connect to lat ch/lock
control.
(10) Install the lock knob (27).
(11) In st all the t rim pan el (24). (Refer to 23 -
BODY/DOORS - SLIDING/TRIM PANE L - INSTAL-
LATION )
(12) Install inside h andle actua tor (7). (Refer to 23
- BODY/DOORS - SLIDING/INSIDE HANDLE
ACTUATOR - INSTALLATION)
(13) Install the cent er roller arm cover (23).

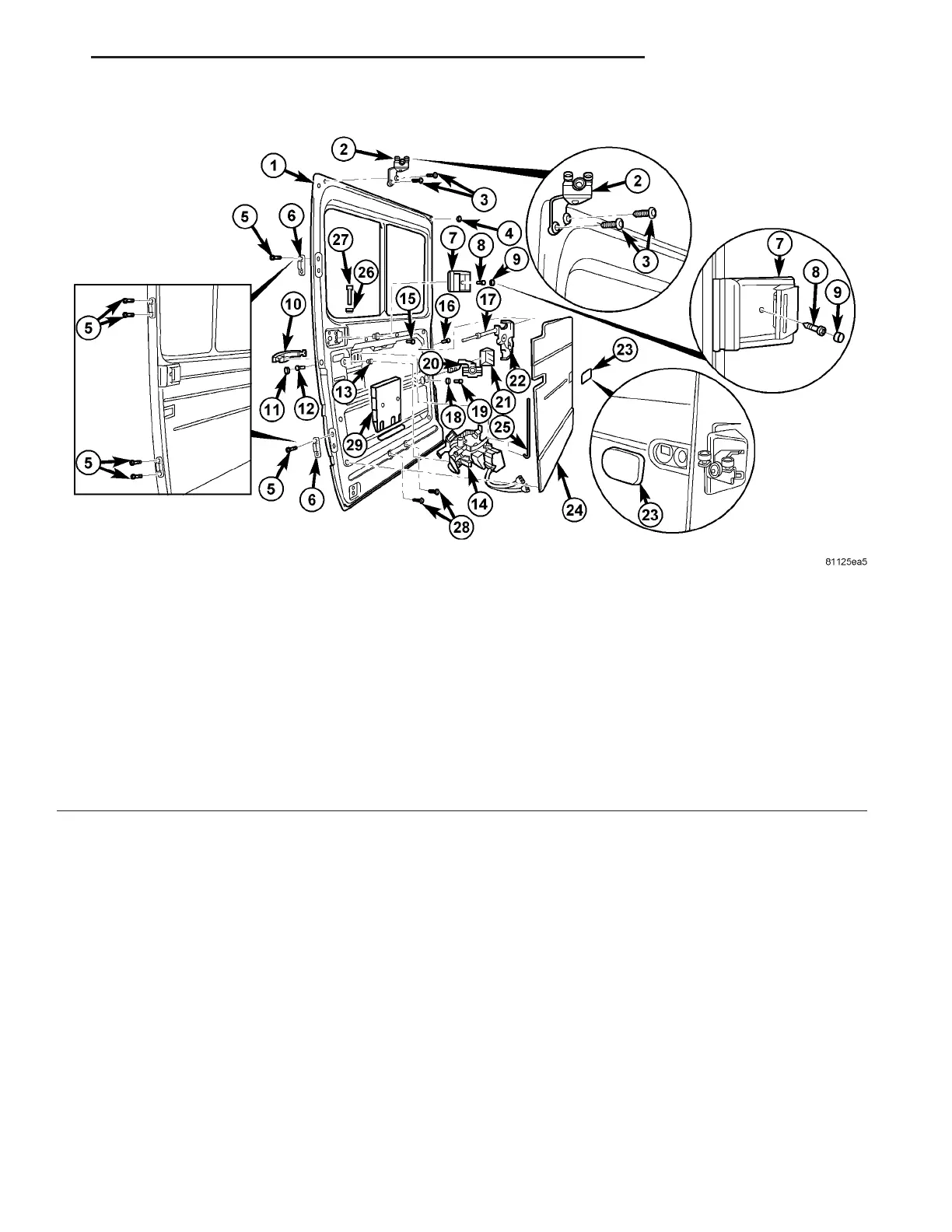

Fig. 17 SLIDING DOOR ASSEMBLY
1 - SLIDING DOOR 16 - BOLT
2 - UPPER ROLLER ARM 17 - RELEASE CABLE
3 - BOLTS (2) 18 - WASHER
4 - TRIM PLUG 19 - BOLT
5 - BOLTS (2) 20 - CENTER ROLLER ARM
6 - STABILIZER PIN 21 - RUBBER COVER
7 - INSIDE HANDLE ACTUATOR 22 - REAR LATCH
8 - SCREWS 23 - COVER
9 - TRIM PLUG 24 - TRIM PANEL
10 - EXTERIOR HANDLE 25 - CONNECTOR ROD
11 - TRIM PLUG 26 - GROMMET
12 - BOLT (1) 27 - LOCK KNOB
13 - NUT 28 - SCREWS
14 - LATCH/LOCK CONTROL 29 - CRASH REINFORCEMENT
15 - BOLT
VA DOORS - SLIDING 23 - 43
