Dodge Sprinter 2006 User Manual

INTERIOR
TABLE OF CONTENTS
page page
INTERIOR
CAUTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
A-PILLAR TRIM
REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . 71
ASSIST HANDLE
REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . 71
B-PILLAR TRIM
REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . 72
BULKHEAD TRIM PANEL
REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . 72
CARPETS AND FLOOR MATS
REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . 73
COWL TRIM
REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . 73
D-PILLAR TRIM
REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . 73
HEADLINER
REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . 74
QUARTER TRIM PANEL
REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . 75
REAR VIEW MIRROR
REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
INSTALLATION
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . 75
INSTALLATION - REAR VIEW MIRROR
SUPPORT BRACKET . . . . . . . . . . . . . . . . . . . 75
STEPWELL SCUFF PADS
REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . 76
SUN VISOR
REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . 76
INTERIOR
CAUTION
CAUTION:: Do not attempt to remove interior trim
panels/moldings without first removing the neces-
sary adjacent panels. To avoid damaging the pan-
els, ensure that all the screws and clips are
removed before attempting to remove an interior
trim panel/molding. Trim panels are somewhat flex-
ible but can be damaged if handled improperly.
A-PILLARTRIM
REMOVAL
(1) Usin g a trim stick C-4755 or equivalent, sepa -
rate the top of th e a-pillar trim .
(2) Pull top of a-pilla r t rim out and pull tr im up
and rem ove. (Fig. 1)
(3) Remove th e four screws a nd rem ove t he foa m
trim su pport. (Fig. 2)

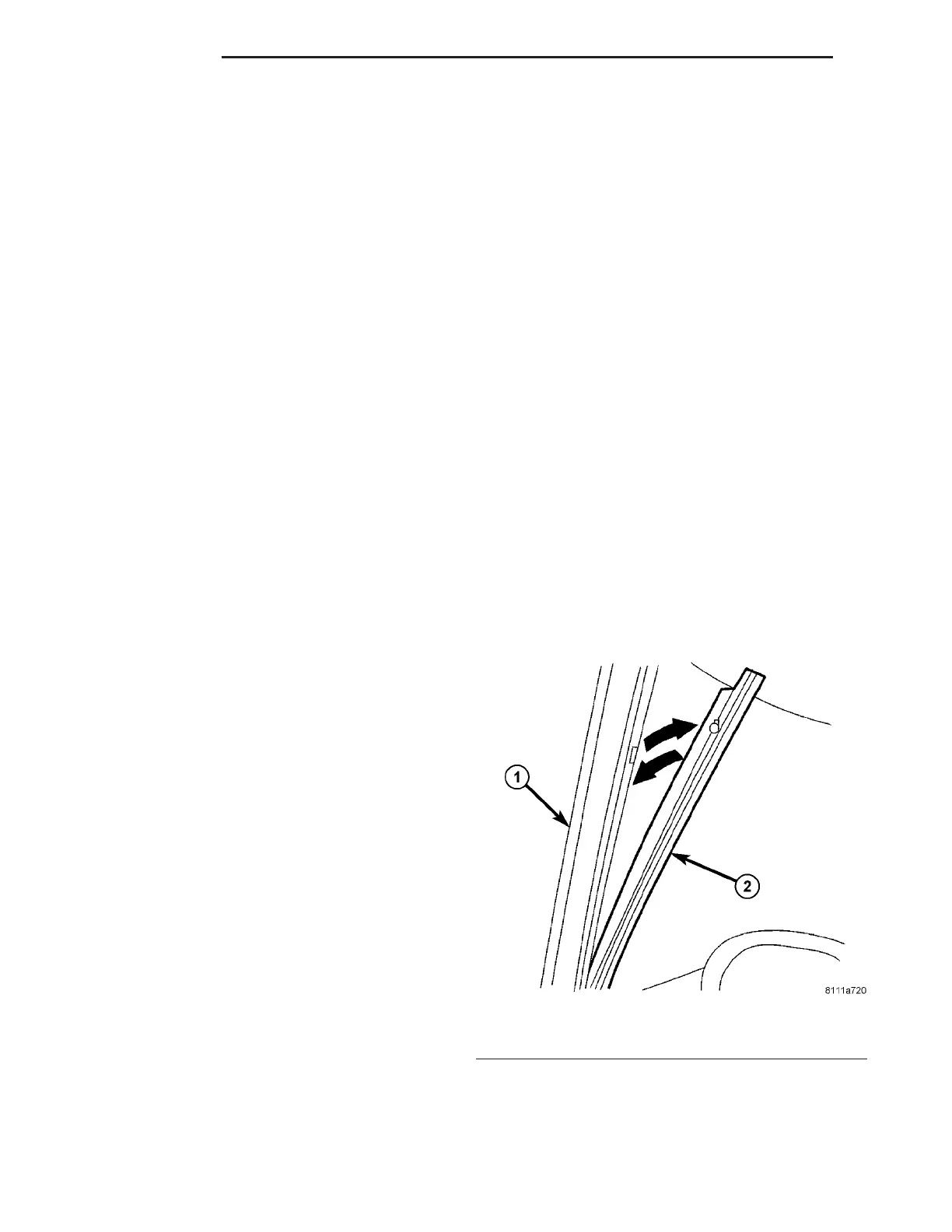

Fig. 1 A-PILLAR TRIM
1 - A-PILLAR
2 - TRIM PANEL
23 - 70 INTERIOR VA
