INSTALLATION
(1) In st all the foam support a nd insta ll th e screws.
(2) In st all t he a-pillar trim bottom and push the
top in toward a -pillar.
(3) Seat the reta ining clips fully.
ASSI ST H AN DLE
REMOVAL
(1) Hold the handle in t he down position an d
remove th e screws. (F ig. 3)
INSTALLATION
(1) In st all the han dle an d insta ll the scr ews.
B-PILLARTRIM
REMOVAL
(1) Remove the lower sea t belt a nchor bolt. (Fig. 4)
(2) Pull door open ing wea ther st rip awa y from
flan ge along the b-pillar. (Fig. 5)
(3) Usin g a trim st ick C-4755 or equ iva lent ,
release t he trim clips an d remove t he t rim . (Fig. 6)

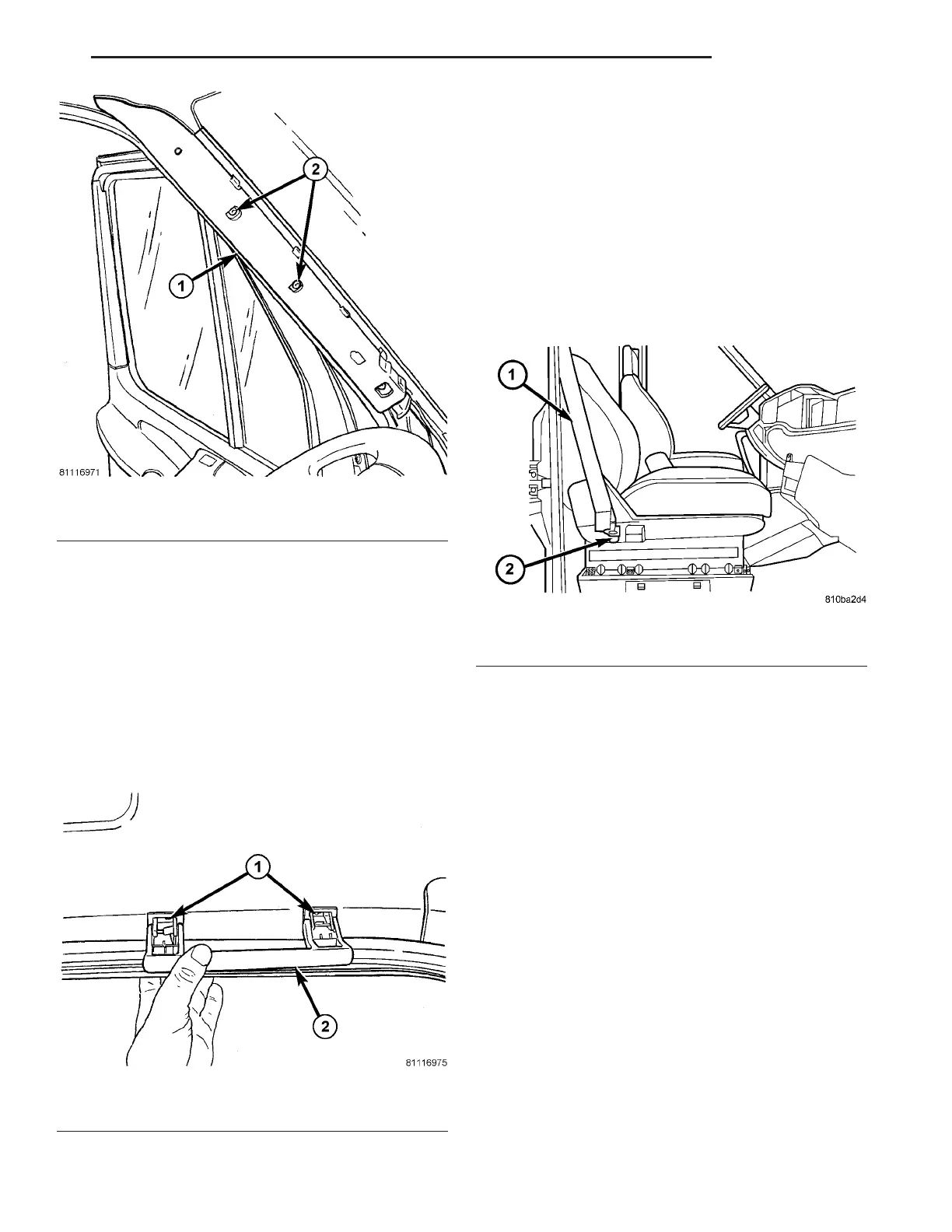

Fig. 2 A-PILLAR SUPPORT FOAM
1 - SUPPORT FOAM
2 - SCREWS (4)
Fig. 3 ASSIST HANDLE
1 - SCREWS (2)
2 - ASSIST HANDLE
Fig. 4 Front Seat Belt Lower Anchor
1 - FRONT SEAT BELT
2 - COVER AND/OR SCREW
