NOTE:
All measurements are in mm.
LOCATION GAP FLUSH
1 Sliding doors at top and bot-
tom
7±
0.5
FLUSH
2 Sliding doors at sides to
body
7±
0.5
FLUSH
3 Door ridge at b-pillar and
side panel
— FLUSH
without
offset
NOTE:
All measurements are in mm.
LOCATION GAP FLUSH
1 Rear doors at top 13 ±
0.5
FLUSH
2 Right rear door to left rear
door
8±
0.5
FLUSH
3 Rear doors (both sides) to
rear body
8±
0.5
FLUSH
4 Rear doors at bottom 8 ±
0.5
—

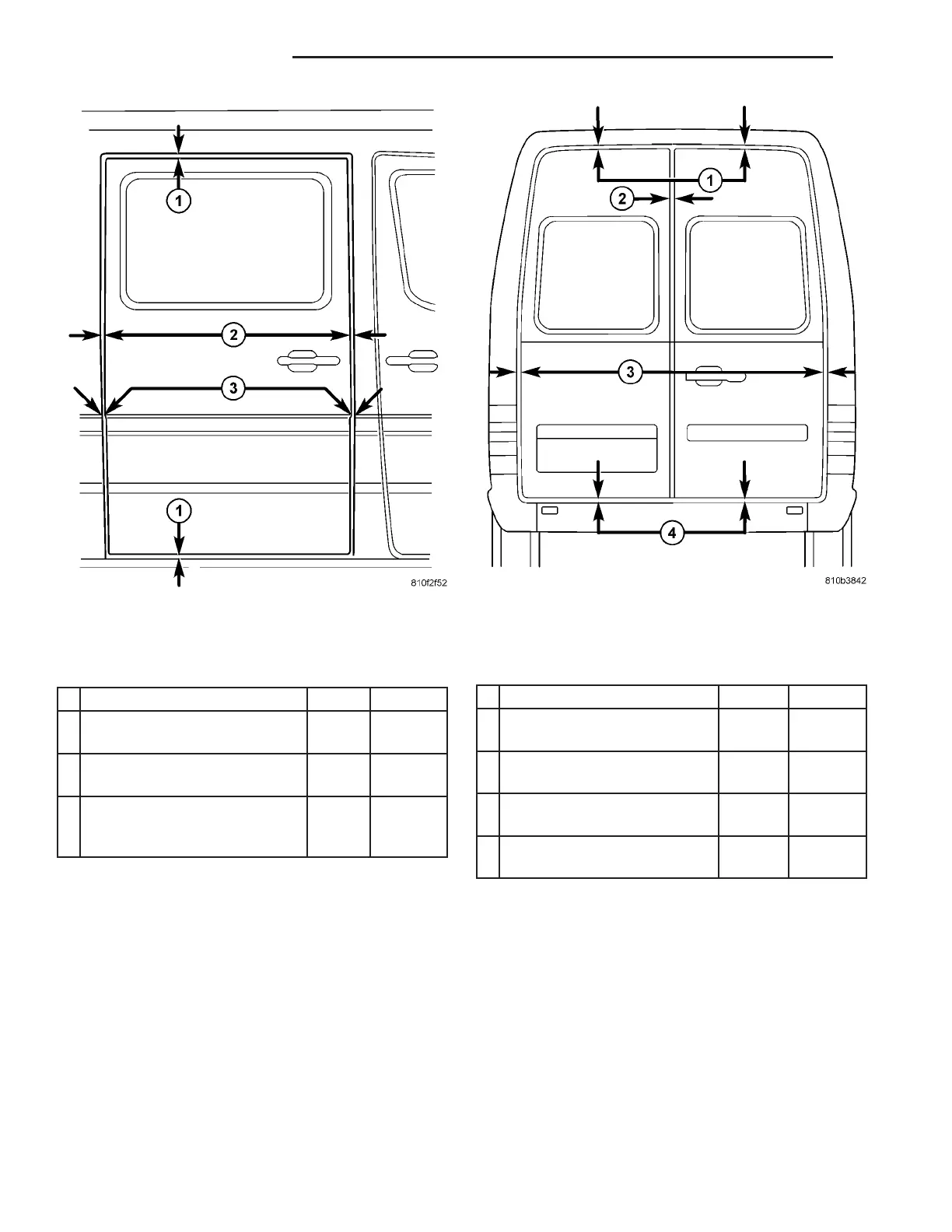

Fig. 2 SLIDING DOOR
Fig. 3 REAR DOOR
23 - 92 BOD Y S T R U CT U R E VA
