Dodge Sprinter 2006 - Page 680

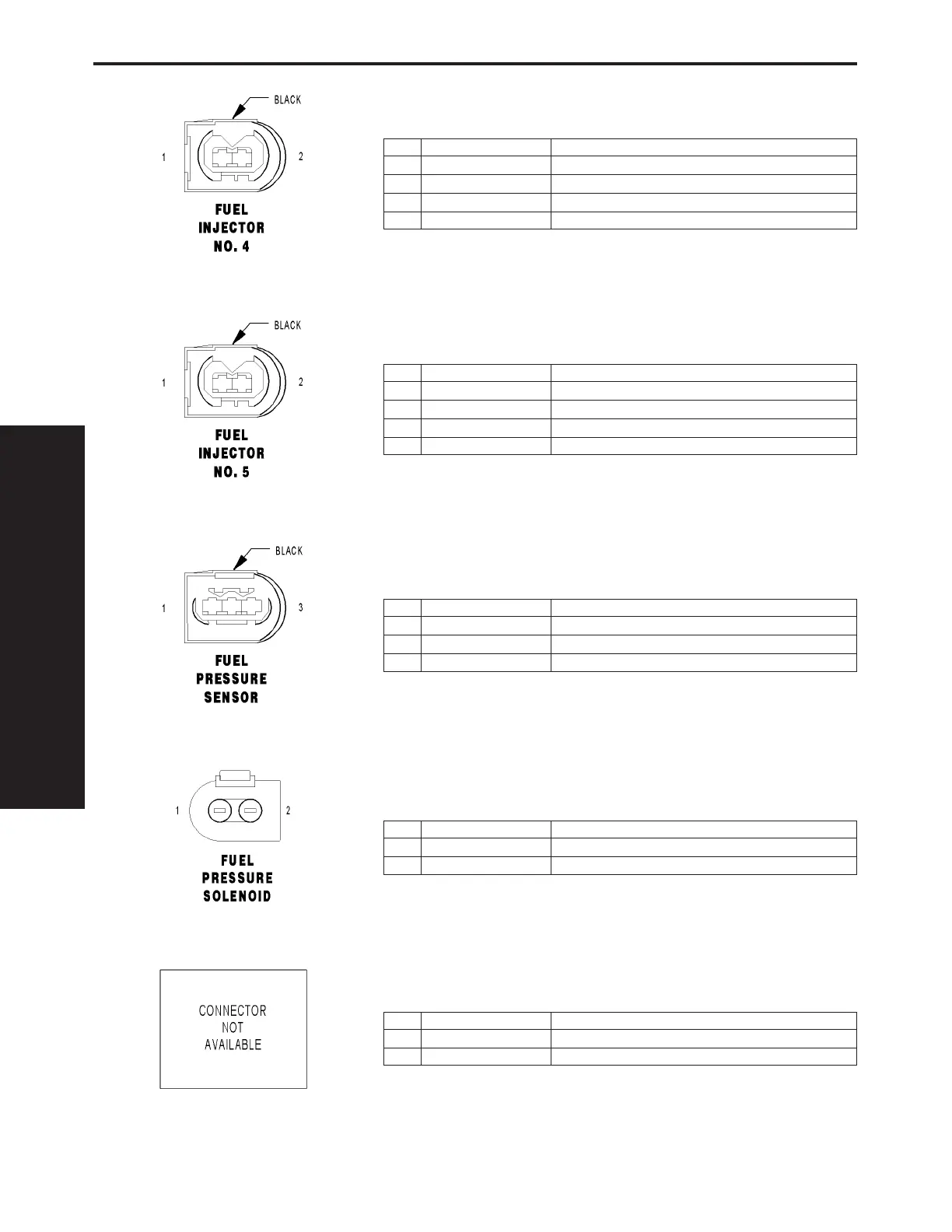

FUEL INJECTOR NO.4-BLACK
CAV CIRCUIT FUNCTION
1 14BK/YL (EXCEPT OBD) FUEL INJECTOR NO. 4 CONTROL
1 16BK/VT (OBD) FUEL INJECTOR NO. 4 LOW-SIDE CONTROL
2 14BK (EXCEPT OBD) COMMON INJECTOR DRIVER NO. 1
2 16BL/WT (OBD) FUEL INJECTOR NO. 4 HIGH-SIDE CONTROL
FUEL INJECTOR NO.5-BLACK
CAV CIRCUIT FUNCTION
1 14BK/DG (EXCEPT OBD) FUEL INJECTOR NO. 5 CONTROL
1 16BK/YL (OBD) FUEL INJECTOR NO. 5 LOW-SIDE CONTROL
2 14BL (EXCEPT OBD) COMMON INJECTOR DRIVER NO. 2
2 16BK/WT (OBD) FUEL INJECTOR NO. 5 HIGH-SIDE CONTROL
FUEL PRESSURE SENSOR - BLACK
CAV CIRCUIT FUNCTION
1 20BR/GY FUEL PRESSURE SENSOR GROUND
2 20DG/VT FUEL PRESSURE SENSOR SIGNAL
3 20RD/DG FUEL PRESSURE SENSOR 5 VOLT SUPPLY
FUEL PRESSURE SOLENOID
CAV CIRCUIT FUNCTION
1 20BK/WT FUEL PRESSURE SOLENOID CONTROL
2 20RD/WT FUEL PRESSURE SOLENOID 12 VOLT SUPPLY
FUEL PUMP (OBD)
CAV CIRCUIT FUNCTION
114BK FUELPUMPRELAYOUTPUT
214BR GROUND
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
262
CON N ECT OR PI N OU T S
