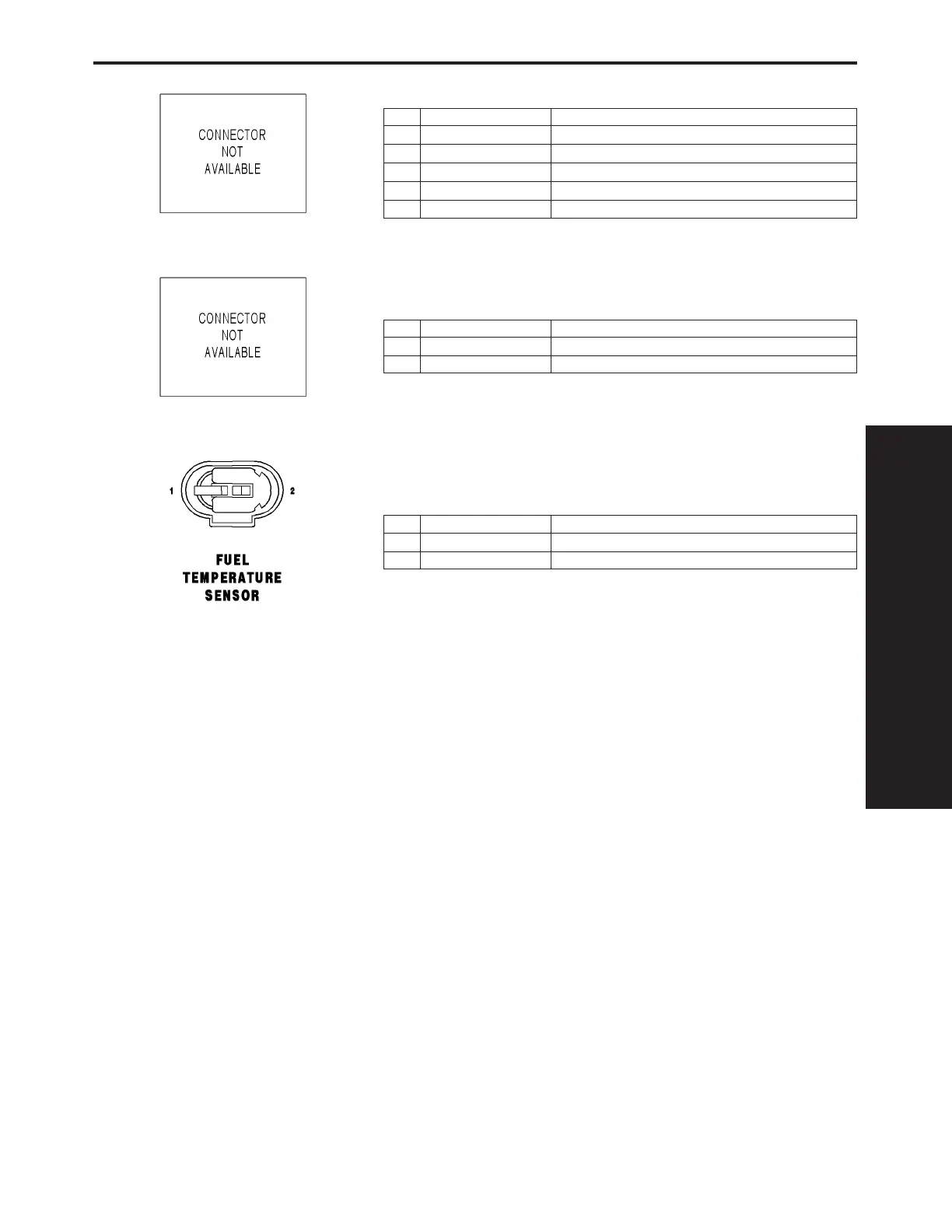

FUEL PUMP RELAY (OBD)
CAV CIRCUIT FUNCTION
30 14RD/BK FUSED B(+)
85 18BR/RD FUEL PUMP RELAY CONTROL
86 18BK/RD FUSED ENGINE CONTROL RELAY OUTPUT
87 14B K FU EL P U MP RELA Y OU T P U T
87A - -
FUEL QUANTITY CONTROL VALVE (OBD)
CAV CIRCUIT FUNCTION
1 20BK/WT FUEL QUANTITY SOLENOID CONTROL
2 18RD/BK FUEL QUANTITY SOLENOID 12 VOLT SUPPLY
FUEL TEMPERA TURE SENSOR
CAV CIRCUIT FUNCTION
1 18DG/BK FUEL TEMPERATURE SENSOR GROUND
2 18BL/GY FUEL TEMPERATURE SENSOR SIGNAL
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
263
CON N ECT OR PI N OU T S
